29. ASSEMBLY - KITS

Click Here for Microfiche Usage Tip

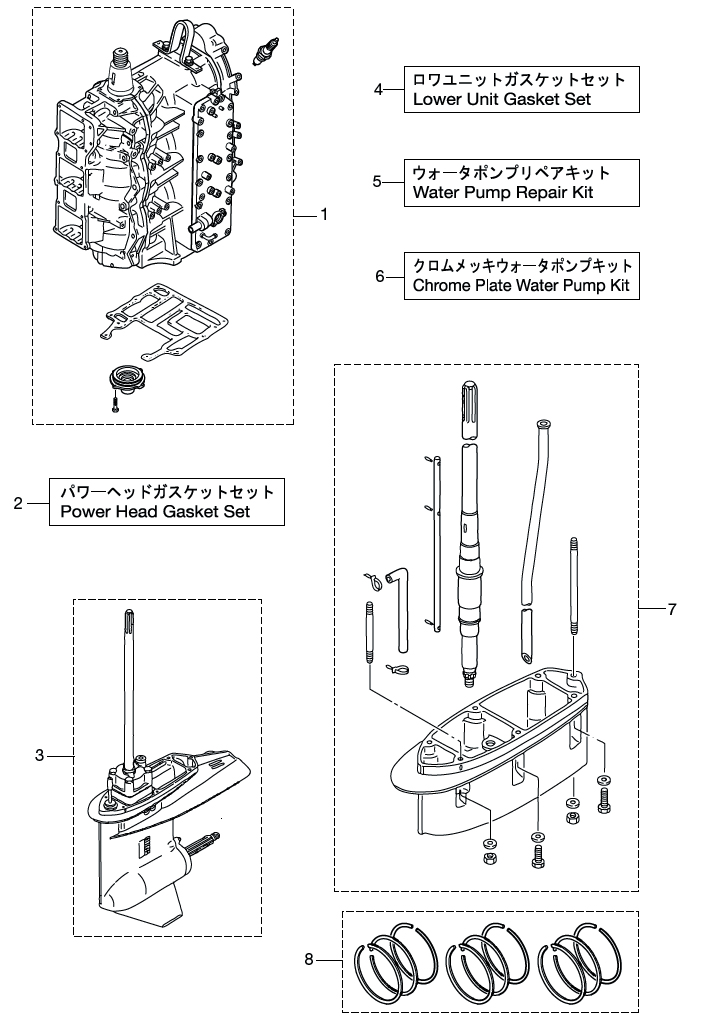

(1) ENGINE SHORT BLOCK KIT(2) POWER HEAD GASKET SET(3) LOWER UNIT ASSY (L)(3) LOWER UNIT ASSY (UL)(4) LOWER UNIT GASKET SET(5) WATER PUMP REPAIR KIT(6) CHROME PLATED WATER PUMP KIT(7) EXTENSION HOUSING KIT (UL)(8) PISTON RING SET (STD)(8) PISTON RING SET (0.5 O/S)



Parts List
2010 :: 90 HP :: TLDI Nissan NSD90C2 :: ASSEMBLY - KITS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ENGINE SHORT BLOCK KIT 3FWB870901 3FWB87090-1 $0.00 1 Sold Out View More Details
(2) POWER HEAD GASKET SET 3FW871210M 3FW-87121-0 $250.52 1
(3) LOWER UNIT ASSY (L) 3FWQ873021 3FWQ87302-1 $1,781.64 1
(3) LOWER UNIT ASSY (UL) 3FWQ873041 3FWQ87304-1 $1,857.45 1
(4) LOWER UNIT GASKET SET 3T9873212M 3T9-87321-0 $63.51 1
(5) WATER PUMP REPAIR KIT 3C7873221M 3C7-87322-1 $86.51 1
(6) WATER PUMP KIT (CHROME PLATED) 3C7652310M 3C7-65231-0 $93.79 1
(7) EXTENSION HOUSING KIT (UL) 3C7Q873142 3C7Q87314-0 $655.85 1
(8) PISTON RING SET ( STD) 3B7871231M 3B7-87123-1 $107.85 1
(8) PISTON RING SET ( 0.5MM O/S) 3B7871241M 3B7-87124-1 $111.74 1
