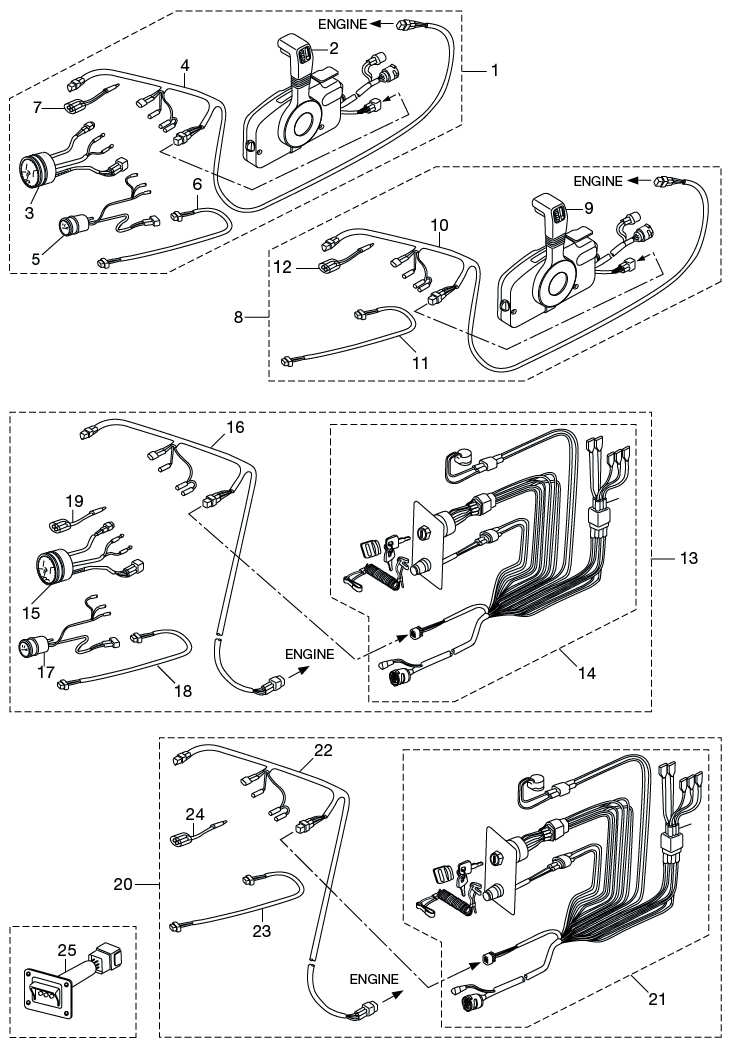

25. RIGGING KIT

Click Here for Microfiche Usage Tip
(1) PRE-RIGGING KIT(2) REMOTE CONTROL BOX (RC5F) TOHATSU(2) REMOTE CONTROL BOX NISSAN(3) TACHOMETER(3) TACHOMETER(4) LEAD WIRE METER L=8000(5) TRIM METER (BLACK)(5) TRIM METER (WHITE)(5) TRIM METER ASSY(6) EXTENSION CORD TRIM SENSOR L=6000(7) ASSIST CORD (BLACK) L=200(8) PRE-RIGGING KIT(9) REMOTE CONTROL BOX (RC5F)(10) LEAD WIRE METER L=8000(11) EXTENSION CORD TRIM SENSOR L=6000(12) ASSIST CORD (BLACK) L=200(13) PRE-RIGGING KIT(14) RIGGING CORD KIT(15) TACHOMETER(15) TACHOMETER(16) LEAD WIRE METER L=8000(17) TRIM METER (BLACK)(17) TRIM METER (WHITE)(17) TRIM METER ASSY(18) EXTENSION CORD TRIM SENSOR L=6000(19) ASSIST CORD (BLACK) L=200(20) PRE-RIGGING KIT(21) RIGGING CORD KIT(22) LEAD WIRE METER L=8000(23) EXTENSION CORD TRIM SENSOR L=6000(24) ASSIST CORD (BLACK) L=200(25) LAMP ASSY



Parts List
2010 :: 90 HP :: TLDI Nissan NSD90C2 :: RIGGING KIT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) PRE-RIGGING KIT 3Y7Q845506 3Y7Q84550-6 WITH METER $0.00 1 Sold Out View More Details
(2) REMOTE CONTROL HEAD ASSY (RC5F) 3GFQ845000 3T5Q84500-1 TOHATSU $429.64 1
(2) REMOTE CONTROL HEAD ASSY (RC5F) 3GHQ845000 3U5Q84500-1 NISSAN $429.64 1
(3) TACHOMETER 3Z5726401M 3Z5-72640-1 PRE-RIGGING KIT(3Y7Q84550-6) INCLUDES $0.00 1 Sold Out View More Details
(3) TACHOMETER (BLACK) 3GF726470M 3GF726470M $0.00 1 Sold Out View More Details
(4) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 $201.55 1
(5) TRIM METER KIT 3GF725710M 3GF725710M $98.67 1
(5) TRIM METER KIT 3GL725710M 3GL725710M $98.67 1
(5) TRIM METER 3T1725710M 3F3-72574-1 PRE-RIGGING KIT(3Y7Q84550-6) INCLUDES $0.00 1 Sold Out View More Details
(6) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $42.93 1
(7) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 1
(8) PRE-RIGGING KIT 3GLQ845501 3GLQ84550-1 WITHOUT METER $429.64 1
(9) REMOTE CONTROL HEAD ASSY (RC5F) 3GFQ845000 3T5Q84500-1 $429.64 1
(10) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 $201.55 1
(11) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $42.93 1
(12) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 1
(13) PRE-RIGGING KIT 3Z5845506M 3Z5-84550-6 WITH METER $805.30 1 Sold Out View More Details
(14) RIGGING CORD KIT 3GF845600M 3GF-84560-0 $0.00 1 Sold Out View More Details
(15) TACHOMETER 3Z5726401M 3Z5-72640-1 PRE-RIGGING KIT (3Z5-84550-6) INCLUDES $0.00 1 Sold Out View More Details
(15) TACHOMETER (BLACK) 3GF726470M 3GF726470M $0.00 1 Sold Out View More Details
(16) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 $201.55 1
(17) TRIM METER KIT 3GF725710M 3GF725710M $98.67 1
(17) TRIM METER KIT 3GL725710M 3GL725710M $98.67 1
(17) TRIM METER 3T1725710M 3F3-72574-1 PRE-RIGGING KIT (3Z5-84550-6) INCLUDES $0.00 1 Sold Out View More Details
(18) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $42.93 1
(19) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 1
(20) PRE-RIGGING KIT 3GM845501M 3GM-84550-0 WITHOUT METER $661.09 1
(21) RIGGING CORD KIT 3GF845600M 3GF-84560-0 WITH PANEL MAIN SWITCH & OVER-HEAT BUZZER $0.00 1 Sold Out View More Details
(22) METER LEAD WIRE L=8000 3T5725371M 3T5-72537-0 $201.55 1
(23) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $42.93 1
(24) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 1
(25) WARNING LAMP 3T5710400M 3T5-71040-0 $76.32 1
