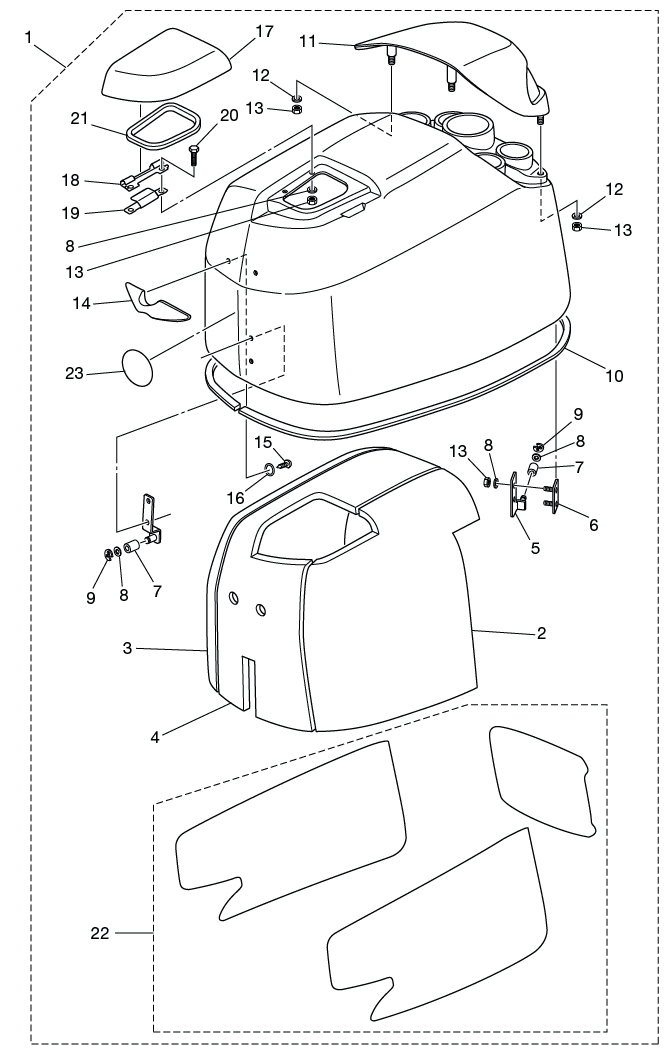

21. TOP COWL (MOTOR COVER UPPER)

Click Here for Microfiche Usage Tip
(1) TOP COWL ASSY (SERVICE) TOHATSU(1) TOP COWL ASSY (SERVICE) NISSAN(2) SOUND ISOLATION (LEFT)(3) SOUND ISOLATION (RIGHT)(4) SOUND ISOLATION (TOP)(5) COVER STAY (REAR)(6) PLATE(7) ROLLER 6.1-14.7-14(7) ROLLER 6.1-14.7-14(8) WASHER(8) WASHER(8) WASHER(8) WASHER(9) E-RING(9) E-RING(10) TOP COWL SEAL(11) TILT HANDLE(12) WASHER 6-16-1.5(12) WASHER 6-16-1.5(13) NYLON NUT 6P1.0(13) NYLON NUT 6P1.0(13) NYLON NUT 6P1.0(13) NYLON NUT 6P1.0(14) COWL HANDLE(15) TAPPING SCREW 6-16(16) WASHER 6.5-23-1.5(17) FILLER LID ASSY(18) FILLER LID HINGE(19) FILLER LID SPRING(20) BOLT(21) SEAL FILLER LID(22) DECAL SET MD90C2 (TOHATSU)(22) DECAL SET (NISSAN)(23) FRONT DECAL



Parts List
2010 :: 90 HP :: TLDI Nissan NSD90C2 :: TOP COWL (MOTOR COVER UPPER)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TOP COWL ASSY (SERVICE) TOHATSU 3FWQ676451 3FWQ67645-1 TOHATSU / MOTOR COVER (UPPER) $1,372.92 1
(1) TOP COWL ASSY (NISSAN) 3FZQ676451 3FZQ67645-1 NISSAN / MOTOR COVER (UPPER) $0.00 1 Sold Out View More Details
(2) SOUND ISOLATION (LEFT) 3FW676020M 3FW-67602-0 $0.00 1 Sold Out View More Details
(3) SOUND ISOLATION (RIGHT) 3FW676030M 3FW-67603-0 $0.00 1 Sold Out View More Details
(4) SOUND ISOLATION (TOP) 3FW676040M 3FW-67604-0 $0.00 1 Sold Out View More Details
(5) COVER STAY (REAR) 3FW675130M 3FW-67513-0 $15.51 2
(6) PLATE 3FW675160M 3FW-67516-0 $6.53 2 Sold Out View More Details
(7) ROLLER 6.1-14.7 -14 3R0675170M 3R0-67517-0 $4.86 3 Sold Out View More Details
(8) WASHER 9401030600M 940103-0600 $0.70 9
(9) E-RING D=5 9453030500M 945303-0500 $0.86 3
(10) TOP COWL SEAL 3FW675010M 3FW-67501-0 $77.60 1 Sold Out View More Details
(11) TILT HANDLE 3T1Q675210 3T1Q67521-0 $121.15 1
(12) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 6
(13) NYLON NUT 6-P 1.0 9304030600M 930403-0600 $2.25 10
(14) COWL HANDLE 3T1676600M 3T1-67660-0 $0.00 1 Sold Out View More Details
(15) TAPPING SCREW 6-16 3T5064370M 3T5-06437-0 $1.27 2
(16) WASHER 6.5-23-1.5 345051221M 345-05122-1 $2.17 2
(17) FILLER LID ASSY 3T1Q672091 3T1Q67209-1 $0.00 1 Sold Out View More Details
(18) FILLER LID HINGE 3FW672110M 3FW-67211-0 $8.98 1
(19) SPRING 3T1672120M 3T1-67212-0 $0.00 1 Sold Out View More Details
(20) BOLT 9101030616M 910113-0616 $0.98 2
(21) SEAL 3T1672130M 3T1-67213-0 $0.00 1 Sold Out View More Details
(22) DECAL SET MD90C2 (TOHATSU) 3FW878021M 3FW-87802-1 TOHATSU / 90PS $97.13 1
(22) DECAL SET (NSD90C2) - NISSAN 3Y8878020M 3Y8878020M NISSAN / 90PS $0.00 1 Sold Out View More Details
(23) FRONT DECAL 3GF675310M 3GF-67531-0 $41.20 1
