18. POWER TRIM & TILT

Click Here for Microfiche Usage Tip

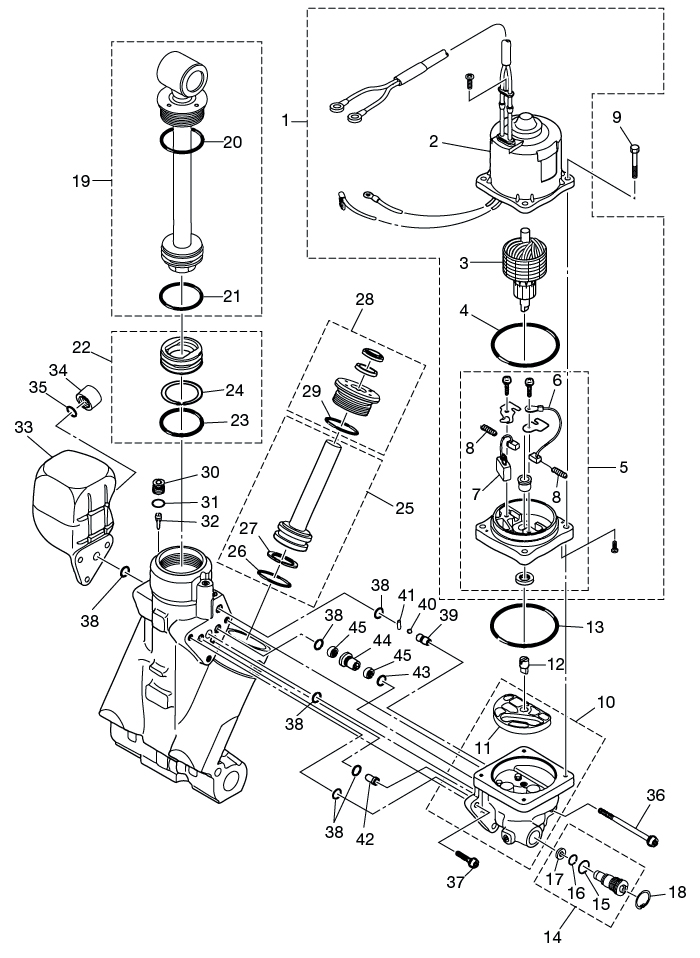

(1) MOTOR ASSY(2) YOKE ASSY(3) ARMATURE ASSY(4) O-RING(5) BRACKET ASSY(6) BRUSH ASSY(7) BREAKER(8) SPRING(8) SPRING(9) BOLT(10) PUMP(11) FILTER B(12) COUPLING PUMP(13) O-RING(14) MANUAL VALVE(15) O-RING(16) PACKING(17) BACK UP RING(18) C-RING(19) PISTON ROD ASSY(20) O-RING(21) O-RING(22) FREE PISTON(23) O-RING(24) BACK-UP RING(25) PISTON TRIM ASSY(26) O-RING(27) BACK-UP RING(28) ROD GUIDE SUB-ASSY(29) O-RING(30) PLUG(31) O-RING(32) FILTER(33) RESERVOIR TANK(34) CAP(35) O-RING(36) BOLT(37) BOLT(38) O-RING(38) O-RING(38) O-RING(38) O-RING(38) O-RING(39) ORIFICE(40) BALL(41) PIN(42) ORIFICE(43) O-RING(44) VALVE SEAT(45) FILTER(45) FILTER



Parts List
2010 :: 90 HP :: TLDI Nissan NSD90C2 :: POWER TRIM & TILT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MOTOR 3T9771800M 3T9-77180-0 $516.35 1
(2) YOKE ASSY 3T9771950M 3T9-77195-0 $0.00 1 Sold Out View More Details
(3) ARMATURE ASSY 3E0771900M 3E0-77190-0 $0.00 1 Sold Out View More Details
(4) MOTOR O-RING 353771821M 353-77182-1 $8.05 1
(5) MOTOR BRACKET 3E0771920M 3E0-77192-0 $188.61 1
(6) BRUSH 3E0771830M 3E0-77183-0 $76.76 1
(7) BREAKER 353771910M 353-77191-0 $0.00 1 Sold Out View More Details
(8) BRUSH SPRING 3E0771840M 3E0-77184-0 $0.00 2 Sold Out View More Details
(9) BOLT 3E0771991M 3E0-77199-0 $7.31 4
(10) PUMP 3E0774301M 3E0-77430-0 $256.55 1
(11) FILTER B 3E0774340M 3E0-77434-0 $22.77 1
(12) COUPLING PUMP 3E0771630M 3E0-77163-0 $9.60 1
(13) O-RING 1.8-69.6 3B7771670M 3B7-77167-0 $6.35 1 Sold Out View More Details
(14) MANUAL VALVE 3E0771761M 3E0-77176-1 $71.25 1
(15) O-RING 3B7774110M 3B7-77411-0 $4.78 1
(16) PACKING 3E0774070M 3E0-77407-0 $7.53 1
(17) BACK-UP RING 3E0774080M 3E0-77408-0 $3.18 1
(18) C-RING 9450E31800M 9450E3-1800 $0.00 1 Sold Out View More Details
(19) PISTON ROD ASSY (TILT) 3E0773651M 3E0-77365-1 $407.48 1
(20) O-RING 3E0773830M 3E0-77383-0 $1.68 1
(21) O-RING 3B7773750M 3B7-77375-0 $3.00 1
(22) FREE PISTON 3B7773771M 3B7-77377-1 $0.00 1 Sold Out View More Details
(23) O-RING 3B7773750M 3B7-77375-0 $3.00 1
(24) BACK-UP RING 3B7773760M 3B7-77376-0 $7.34 1
(25) TRIM PISTON 3E0773900M 3E0-77390-0 $83.98 2
(26) O-RING 3B7773920M 3B7-77392-0 $2.76 2
(27) BACK-UP RING 3B7773930M 3B7-77393-0 $6.90 2
(28) ROD GUIDE SUB ASSY (TRIM) 3E0773950M 3E0-77395-0 $62.39 2 Sold Out View More Details
(29) O-RING 3E0773980M 3E0-77398-0 $4.72 2
(30) PLUG 3E0774721M 3E0-77472-1 $10.04 1
(31) O-RING 3B7771790M 3B7-77179-0 $3.85 1
(32) FILTER 3E0774750M 3E0-77475-0 $9.03 1
(33) RESERVOIR TANK 3E0771650M 3E0-77165-0 $81.48 1 Sold Out View More Details
(34) CAP 3E0771680M 3E0-77168-0 $6.01 1
(35) O-RING 3E0771690M 3E0-77169-0 $2.10 1
(36) BOLT 3E0774311M 3E0-77431-1 $6.84 1
(37) BOLT 3E0774321M 3E0-77432-1 $0.00 2 Sold Out View More Details
(38) O-RING 3E0771670M 3E0-77167-0 $3.20 6
(39) ORIFICE 3E0775570M 3E0-77557-0 $22.80 1
(40) BALL 3E0775580M 3E0-77558-0 $0.92 1
(41) PIN 3E0775590M 3E0-77559-0 $3.37 1
(42) ORIFICE 3E0774790M 3E0-77479-0 $6.74 1
(43) O-RING 3B7771690M 3B7-77169-0 $5.02 1
(44) VALVE SEAT 3E0774530M 3E0-77453-0 $25.93 1
(45) FILTER 3E0774560M 3E0-77456-0 $6.84 2
