17. BRACKET

Click Here for Microfiche Usage Tip

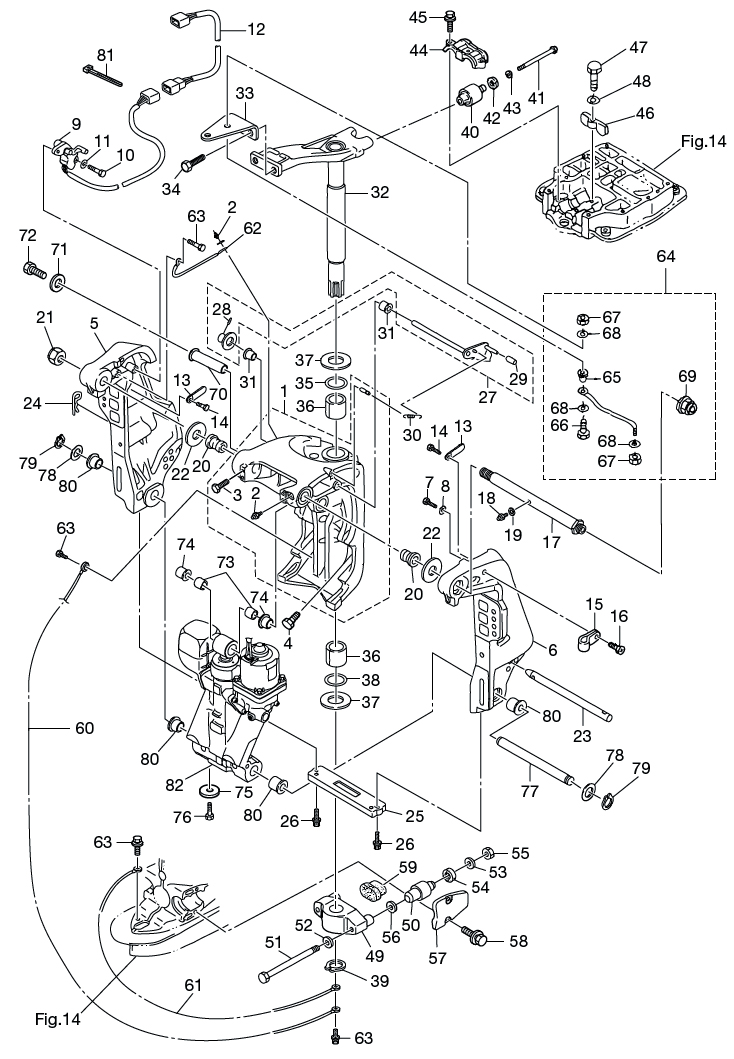

(1) SWIVEL BRACKET ASSY(2) GREASE FITTING(2) GREASE FITTING(3) BOLT(4) BOLT 12-20(5) CLAMP BRACKET (RIGHT)(6) CLAMP BRACKET (LEFT)(7) BOLT(8) WASHER(9) TRIM SENDER(10) BOLT(11) WASHER 6-16-1.5(12) EXTENSION CORD TRIM SENSOR L=6000(13) CLAMP 6.5-47.5P(13) CLAMP 6.5-47.5P(14) BOLT(14) BOLT(15) CLAMP 6.5-14(16) SCREW(17) BRACKET BOLT ASSY(18) GREASE FITTING(19) WASHER(20) BUSHING 25.6-28.6-40(20) BUSHING 25.6-28.6-40(21) NYLON NUT 7/8(22) WASHER 25.7-50-1(22) WASHER 25.7-50-1(23) THRUST ROD(24) PIN THRUST ROD(25) ANODE STERN BRACKET(26) BOLT(26) BOLT(27) TILT STOPPER ASSY(28) SPRING PIN 3.5-16(29) TILT STOPPER GRIP(30) SPRING TILT STOPPER(31) COLLAR 10.2-12-12(31) COLLAR 10.2-12-12(32) STEERING SHAFT ASSY(33) STEERING HOOK PLATE(34) BOLT(35) SEAL RING STEERING SHAFT(36) BUSHING 32-40-45(36) BUSHING 32-40-45(37) THRUST PLATE 32.9-56-2(37) THRUST PLATE 32.9-56-2(38) O-RING 4.5-32(39) C-RING(40) UPPER MOUNT RUBBER(41) BOLT 7/16-20-114.5(42) DAMPER RUBBER 21-36-5(43) WASHER 11.5-32-3(44) CAP MOUNT RUBBER UPPER(45) BOLT(46) DAMPER MOUNT RUBBER UPPER(47) BOLT(48) WASHER 6-16-1.5(49) MOUNT BRACKET(50) MOUNT RUBBER LOWER(51) BOLT MOUNT BRACKET M12-151(52) WASHER MOUNT BRACKET 12.2-25-2(53) WASHER 13-34-3(54) DAMPER RUBBER 21-36-5(55) NUT 12-P1.5(56) WASHER(57) MOUNT HOLDING PLATE (LOWER)(58) BOLT 8-25(59) DAMPER RUBBER(60) GROUND WIRE(61) GROUND WIRE(62) GROUND WIRE(63) BOLT(63) BOLT(63) BOLT(63) BOLT(64) DRAG LINK ASSY(65) SPACER(66) BOLT 3/8-24-50(67) NYLON NUT 3/8-24(67) NYLON NUT 3/8-24(68) WASHER 9.6-18-2(68) WASHER 9.6-18-2(68) WASHER 9.6-18-2(69) SEAL RING DRAG LINK(70) UPPER CYLINDER PIN(71) WASHER 6.5-23-1.5(72) BOLT(73) BUSHING 18-24-19(74) BUSHING 18-20-20.5(74) BUSHING 18-20-20.5(75) ANODE(76) BOLT(77) CYLINDER PIN (LOWER)(78) WASHER 22.6-30-2(78) WASHER 22.6-30-2(79) CLIP(79) CLIP(80) BUSHING 22-25.4-23.5(80) BUSHING 22-25.4-23.5(80) BUSHING 22-25.4-23.5(80) BUSHING 22-25.4-23.5(81) BAND LEAD WIRE L=104(82) POWER TRIM - TILT



Parts List
2010 :: 90 HP :: TLDI Nissan NSD90C2 :: BRACKET
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SWIVEL BRACKET ASSY 3E0Q623132 3E0Q62313-2 $495.72 1 Sold Out View More Details
(2) GREASE FITTING 344671771M 344-67177-0 $2.74 4
(3) BOLT 9101F10610M 9101F1-0610 $0.83 4
(4) BOLT 12-20 P-1.75 3B7770851M 3B7-77085-1 $2.95 2 Sold Out View More Details
(5) CLAMP BRACKET (RIGHT) 3E0Q621120 3E0Q62112-0 STERN BRACKET (RIGHT) / STARBOARD $0.00 1 Sold Out View More Details
(6) CLAMP BRACKET (LEFT) 3E0Q621131 3E0Q62113-1 STERN BRACKET (LEFT) / PORT $196.47 1
(7) BOLT 9102E31020M 9102E3-1020 $3.32 1
(8) WASHER 9402E31000M 940213-1000 $1.11 2
(9) TRIM SENSOR 3T1725740M 3T1-72574-0 $196.93 1
(10) BOLT 9101E30620M 9101E3-0620 $1.11 2 Sold Out View More Details
(11) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.70 2
(12) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $45.94 1 Sold Out View More Details
(13) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.21 3
(14) BOLT 9101E30612M 9101E3-0612 $0.90 3
(15) CLAMP 6.5-14L 345069150M 345-06915-0 $4.95 1
(17) SWIVEL BRACKET SHAFT 3E0621911M 3E0-62191-1 BRACKET BOLT $115.41 1
(18) GREASE FITTING 344671771M 344-67177-0 $2.74 1
(19) WASHER 9401030600M 940103-0600 $0.75 1
(20) BUSHING 25.6-28.6-40 3E0621260M 3E0-62126-0 $2.48 2 Sold Out View More Details
(21) NYLON NUT 7/8 346621241M 346-62124-0 $22.63 1
(22) WASHER 25.7-50-1 3FW621160M 3FW-62116-0 $1.85 2 Sold Out View More Details
(23) THRUST ROD 3E0621211M 3E0-62121-1 $0.00 1 Sold Out View More Details
(24) R-PIN D=10 3B7621291M 3B7-62129-1 $11.56 1
(25) ANODE 3C7602182M 3C7-60218-2 $21.23 1
(26) BOLT 9101036630M 910103-6630 $1.39 2
(27) TILT STOPPER ASSY 3Y9624311M 3E0S62431-1 $57.19 1
(28) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.90 1
(29) TILT STOPPER GRIP 3Y9624330M 3Y9-62433-0 $4.00 1
(30) SPRING TILT STOPPER 3E0624731M 3E0-62473-1 $4.95 1
(31) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.18 2
(32) STEERING SHAFT ASSY 3FWQ620100 3FWQ62010-0 $0.00 1 Sold Out View More Details
(33) STEERING HOOK PLATE 3FW838300M 3FW-83830-0 $34.13 1
(34) BOLT 9101031030M 910103-1030 $2.68 2 Sold Out View More Details
(35) STEERING SHAFT SEAL RING 3B7624140M 3B7-62414-0 $0.00 1 Sold Out View More Details
(36) BUSHING 32-40-45 3B7624170M 3B7-62417-0 $8.12 2
(37) THRUST PLATE (UPPER) 3FW624230M 3FW-62423-0 $3.97 2 Sold Out View More Details
(38) O-RING 4.5-32 3B7624150M 3B7-62415-0 $3.22 1
(39) C-RING D=32 9451033200M 945103-3200 $2.14 1
(40) RUBBER MOUNT (UPPER) 3B7613010M 3B7-61301-0 $76.34 2 Sold Out View More Details
(41) BOLT 7/16-115 3B7613072M 3B7-61307-2 $10.82 2
(42) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $13.78 2
(43) WASHER 11.5-32-3 3B7613350M 3B7-61335-0 $3.22 2
(44) MOUNT HOLDING PLATE (UPPER) 3B7613411M 3B7-61341-1 RUBBER MOUNT CAP (UPPER) $47.15 1
(45) BOLT 9101E35835M 910113-5835 $3.51 3
(46) DAMPER (UPPER) 3B7613390M 3B7-61339-0 $7.11 1
(47) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 $1.01 1
(48) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.50 1
(49) MOUNT BRACKET 3C7Q614112 3C7Q61411-2 $0.00 1 Sold Out View More Details
(50) RUBBER MOUNT (LOWER) 353613021M 353-61302-0 $59.06 2
(51) RUBBER MOUNT BOLT (LOWER) 353613213M 353-61321-3 $16.91 2 Sold Out View More Details
(52) WASHER 12.2-25-2 353613151M 353-61315-1 $3.43 2
(53) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.37 2
(54) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $13.78 2
(55) NUT 12-P1.5 3B7613240M 3B7-61324-0 $5.12 2
(56) WASHER 9402E31200M 940203-1200 $2.25 2
(57) MOUNT HOLDING PLATE (LOWER) 3B7Q613420 3B7Q61342-0 RUBBER MOUNT CAP (LOWER) $29.47 2
(58) BOLT 8-25 3N4613430M 3N4-61343-0 $1.73 4
(59) RUBBER DAMPER (LOWER) 3C7613360M 3C7-61336-0 $11.79 1
(60) GROUND CABLE 3C8623961M 3C8-62396-0 $4.89 1
(61) GROUNG CABLE 3A3623961M 3A3-62396-0 $19.09 1
(62) GROUND CABLE 398623961M 398-62396-1 $6.15 1
(63) BOLT 9101035612M 910103-5612 $1.15 4 Sold Out View More Details
(64) DRAG LINK ASSY 3FW849050M 3FW-84905-0 $172.92 1
(65) SPACER 3FW849140M 3FW-84914-0 $8.84 1
(66) BOLT 3/8 - 50 3E0849170M 3E0-84917-0 $12.08 1
(67) NYLON NUT 3/8 353849180M 353-84918-0 $7.05 2
(68) WASHER 9.6-18-2 353849160M 353-84916-0 $1.56 3
(69) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.74 1
(70) CYLINDER PIN (UPPER) 3C8770711M 3C8-77071-1 $11.56 1
(71) WASHER 6.5-23-1.5 345051221M 345-05122-1 $2.33 1
(72) BOLT 9101E30612M 9101E3-0612 $0.90 1
(73) BUSHING 18-24-19 3C8770750M 3C8-77075-0 $2.21 2
(74) BUSHING 18-20-20.5 3E0770760M 3E0-77076-0 $2.48 2
(75) ANODE 369602181M 369-60218-1 $7.94 1 Sold Out View More Details
(76) BOLT 9101035616M 910103-5616 $1.22 1 Sold Out View More Details
(77) CYLINDER PIN (LOWER) 3E0771011M 3E0-77101-0 $52.53 1
(78) WASHER 22.6-30-2 346624121M 346-62412-1 $2.24 2
(79) C-RING D=22 9451032200M 945103-2200 $1.98 2
(80) BUSHING 22-25.4-23.5 3E0771030M 3E0-77103-0 $2.48 4
(81) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 2 Sold Out View More Details
(82) POWER TRIM & TILT 3T9771501M 3T9-77150-1 $2,636.32 1
