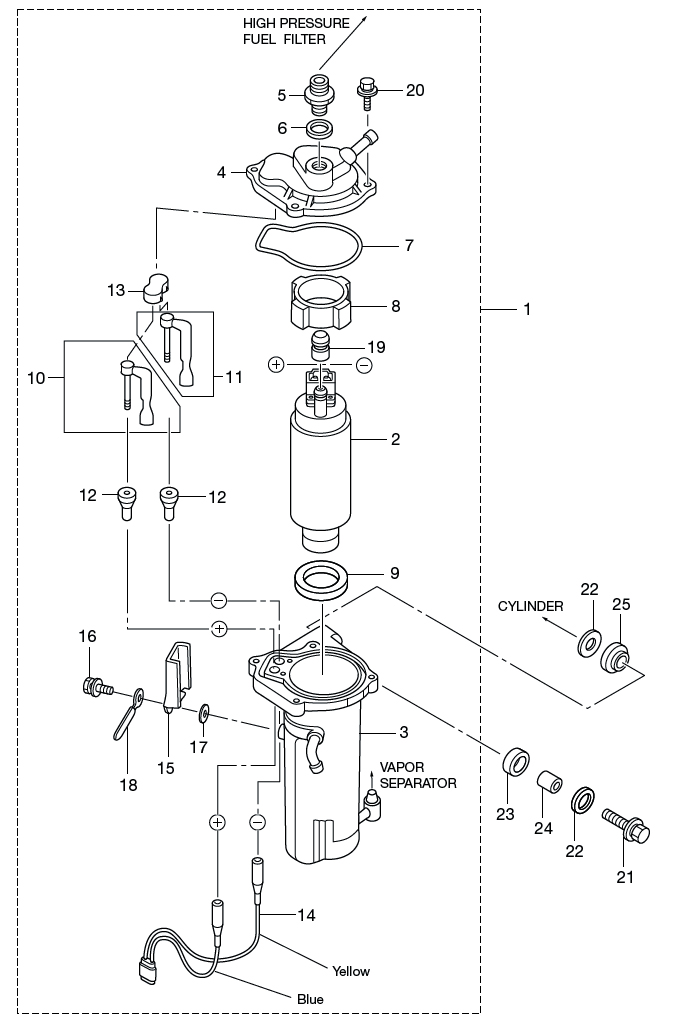

6. FFP ASSEMBLY

Click Here for Microfiche Usage Tip
(1) FUEL FEED PUMP ASSY(2) FUEL FEED PUMP(3) CASE ASSY(4) UPPER CASE FFP(5) ADAPTER HOSE JOINT(6) METAL WASHER 10.2-17-2(7) SEAL FFP(8) GROMMET UPPER FFP(9) GROMMET LOWER FFP(10) CABLE TERMINAL ASSY (+)(11) CABLE TERMINAL ASSY (-)(12) GROMMET CABLE TERMINAL(12) GROMMET CABLE TERMINAL(13) GROMMET UPPER CABLE TERMINAL(14) CORD FFP(15) COVER CORD FFP(16) BOLT(17) WASHER(18) CLAMP 6.5-47.5P(19) GROMMET PIPE(20) BOLT(21) BOLT(22) WASHER 6-16-1.5(22) WASHER 6-16-1.5(23) MOUNT RUBBER 8.5-12-2(24) SPACER 6.2-9-15.7(25) MOUNT RUBBER 8.5-18-7



Parts List
2010 :: 90 HP :: TLDI Nissan NSD90C2 :: FFP ASSEMBLY
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FUEL FEED PUMP ASSY 3FW043100M 3FW-04310-0 $814.41 1 Sold Out View More Details
(2) FUEL FEED PUMP 3T1043020M 3T1-04302-0 GSC295 $662.55 1
(3) CASE ASSY 3FW042340M 3FW-04234-0 $0.00 1 Sold Out View More Details
(4) FFP CASE (UPPER) 3T5043120M 3T5-04312-0 $22.91 1
(5) HOSE JOINT ADAPTER 3T5043080M 3T5-04308-0 $5.34 1
(6) METAL WASHER 10.2-17-2 3T5043090M 3T5-04309-0 $0.81 1
(7) O-RING 3T5041160M 3T5-04116-0 $1.71 1
(8) FFP GROMMET (UPPER) 3T5043130M 3T5-04313-0 $2.59 1
(9) FFP GROMMET (LOWER) 3T5043140M 3T5-04314-0 $1.71 1
(10) CABLE TERMINAL (POSITIVE) 3T5042360M 3T5-04236-0 $13.74 1
(11) CABLE TERMINAL (NEGATIVE) 3T5042370M 3T5-04237-0 $13.74 1
(12) CABLE TERMINAL GROMMET 3T5043170M 3T5-04317-0 $1.22 2
(13) CABLE TERMINAL GROMMET (UPPER) 3T5043180M 3T5-04318-0 $1.04 1
(14) FFP CORD 3T5042380M 3T5-04238-0 $75.49 1
(15) FFP CORD COVER 3T5042390M 3T5-04239-0 $1.56 1
(16) BOLT 9101035512M 9101E3-5512 $0.00 1 Sold Out View More Details
(17) WASHER 9401030500M 940103-0500 $0.53 1
(18) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(19) PIPE GROMMET 3T5043190M 3T5-04319-0 $1.22 1
(20) BOLT 9101035518M 910103-5518 $0.00 4 Sold Out View More Details
(21) BOLT 9101030630M 910103-0630 $1.21 2
(22) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 4
(23) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.02 2
(24) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 2
(25) RUBBER MOUNT 8.5-18-7 3T5069200M 3T5-06920-0 $1.04 2
