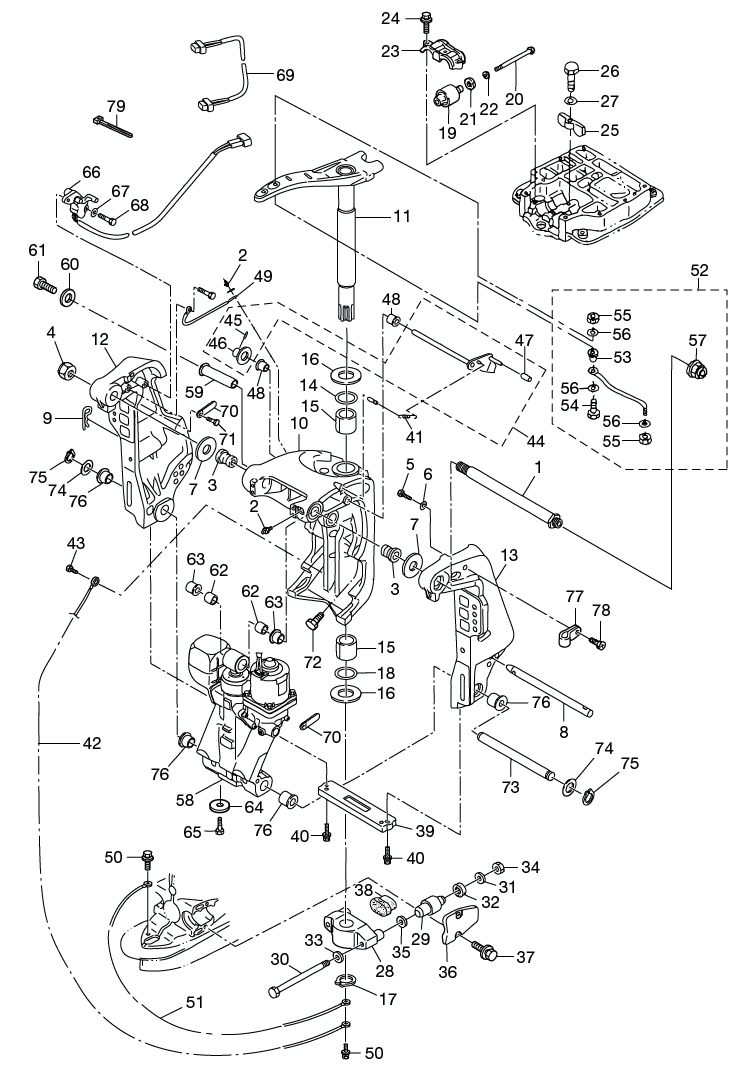

16. BRACKET

Click Here for Microfiche Usage Tip
(1) SWIVEL BRACKET SHAFT ASSY (SUS COAT)(2) GREASE FITTING(2) GREASE FITTING(3) BUSHING 25.6-28.6-40(3) BUSHING 25.6-28.6-40(4) NYLON NUT 7/8(5) BOLT(6) WASHER(7) WASHER 25.7-50-1(7) WASHER 25.7-50-1(8) THRUST ROD(9) PIN THRUST ROD(10) SWIVEL BRACKET ASSY(11) STEERING SHAFT ASSY(12) CLAMP BRACKET (R)(13) CLAMP BRACKET (L)(14) SEAL RING STEERING SHAFT(15) BUSHING 32-40-45(15) BUSHING 32-40-45(16) THRUST PLATE (UPPER)(16) THRUST PLATE (UPPER)(17) C-RING(18) O-RING 4.5-32(19) RUBBER MOUNT (UPPER)(20) BOLT(21) DAMPER RUBBER(22) WASHER 11.5-32.3(23) MOUNT HOLDING PLATE (UPPER)(24) BOLT(25) DAMPER (UPPER)(26) BOLT(27) WASHER 6-16-1.5(28) MOUNT BRACKET(29) RUBBER MOUNT (LOWER)(30) BOLT MOUNT BRACKET(31) WASHER 13-34-3(32) DAMPER RUBBER(33) WASHER MOUNT BRACKET(34) NUT 12-P1.5(35) WASHER(36) MOUNT HOLDING PLATE (LOWER)(37) BOLT 8-25(38) DAMPER (LOWER)(39) ANODE STERN BRACKET(40) BOLT(40) BOLT(41) TILT STOPPER SPRING(42) GROUND (EARTHWIRE) L=210(43) BOLT(44) TILT STOPPER ASSY(45) SPRING PIN 3.5-16(46) WASHER(47) TILT STOPPER GRIP(48) COLLAR 10.2-12-12(48) COLLAR 10.2-12-12(49) GROUND (EARTHWIRE) L=130(50) BOLT W/WASHER(50) BOLT W/WASHER(51) GROUND (EARTHWIRE)(52) DRAG LINK ASSY H(53) SPACER DRAG LINK H(54) BOLT 3/8-50(55) NYLON NUT 3/8(55) NYLON NUT 3/8(56) WASHER 9.6-18-2(56) WASHER 9.6-18-2(56) WASHER 9.6-18-2(57) SEAL RING DRAG LINK(58) PTT ASSY(59) CYLINDER PIN (UPPER)(60) WASHER 6.5-23-1.5(61) BOLT(62) BUSHING 18-24-19(62) BUSHING 18-24-19(63) BUSHING 18-20-20.5(63) BUSHING 18-20-20.5(64) ANODE(65) BOLT 5-16(66) TRIM SENSOR L=1750(67) WASHER 6-16-1.5(68) BOLT(69) EXTENSION CORD (TRIM SENSOR) L=6000(70) CLAMP 6.5-47.5P(70) CLAMP 6.5-47.5P(70) CLAMP 6.5-47.5P(70) CLAMP 6.5-47.5P(71) BOLT 6-12(72) BOLT 12-20(73) CYLINDER PIN (LOWER)(74) WASHER 22.6-30-2(74) WASHER 22.6-30-2(75) C-RING(75) C-RING(76) BUSHING 22-25.4-23.5(76) BUSHING 22-25.4-23.5(76) BUSHING 22-25.4-23.5(76) BUSHING 22-25.4-23.5(77) CLAMP 6.5-14(78) SCREW(79) BAND LEAD WIRE 104



Parts List
2010 :: 90 HP :: TLDI Tohatsu MD90B :: BRACKET
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SWIVEL BRACKET SHAFT 3E0621911M 3E0-62191-1 BRACKET BOLT $115.41 1
(2) GREASE FITTING 344671770M 344-67177-0 $2.74 1
(3) BUSHING 25.6-28.6-40 3E0621260M 3E0-62126-0 $2.48 2 Sold Out View More Details
(4) NYLON NUT 7/8 346621241M 346-62124-0 $22.63 1
(5) BOLT 9102E31020M 9102E3-1020 $3.32 1
(6) WASHER 9402E31000M 940213-1000 $1.11 2
(7) WASHER 25.7-50-1 3E0621161M 3E0621160M $1.62 2
(8) THRUST ROD 3E0621211M 3E0-62121-1 $0.00 1 Sold Out View More Details
(9) R-PIN D=10 3B7621291M 3B7-62129-1 $11.56 1
(10) SWIVEL BRACKET 3E0Q623130 3E0Q62313-0 $495.72 1 Sold Out View More Details
(11) STEERING SHAFT 3B7Q620101 3B7Q62010-1 $327.67 1
(12) CLAMP BRACKET (RIGHT) 3E0Q621120 3E0Q62112-0 STERN BRACKET (RIGHT) / STARBOARD $0.00 1 Sold Out View More Details
(13) CLAMP BRACKET (LEFT) 3E0Q621131 3E0Q62113-1 STERN BRACKET (LEFT) / PORT $196.47 1
(14) STEERING SHAFT SEAL RING 3B7624140M 3B7-62414-0 $0.00 1 Sold Out View More Details
(15) BUSHING 32-40-45 3B7624170M 3B7-62417-0 $8.12 2
(16) THRUST PLATE 3B7624231M 3B7-62423-1 $3.34 2
(17) C-RING D=32 9451033200M 945103-3200 $2.14 1
(18) O-RING 4.5-32 3B7624150M 3B7-62415-0 $3.22 1
(19) RUBBER MOUNT (UPPER) 3B7613010M 3B7-61301-0 $76.34 2 Sold Out View More Details
(20) BOLT 7/16-115 3B7613072M 3B7-61307-2 $10.82 2
(21) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $13.78 2
(22) WASHER 11.5-32-3 3B7613350M 3B7-61335-0 $3.22 2
(23) MOUNT HOLDING PLATE (UPPER) 3B7613411M 3B7-61341-1 RUBBER MOUNT CAP (UPPER) $47.15 1
(24) BOLT 9101E35835M 910113-5835 $3.51 3
(25) DAMPER (UPPER) 3B7613390M 3B7-61339-0 $7.11 1
(26) BOLT 9101030625M 910113-0625 $1.01 1
(27) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.50 1
(28) MOUNT BRACKET 3B7Q614112 3B7Q61411-2 $0.00 1 Sold Out View More Details
(29) RUBBER MOUNT (LOWER) 353613021M 353-61302-0 $59.06 2
(30) RUBBER MOUNT BOLT (LOWER) 353613213M 353-61321-3 $16.91 2 Sold Out View More Details
(31) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.37 2
(32) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $13.78 2
(33) WASHER 12.2-25-2 353613151M 353-61315-1 $3.43 2
(34) NUT 12-P1.5 3B7613240M 3B7-61324-0 $5.12 2
(35) WASHER 9402E31200M 940203-1200 $2.25 2
(36) MOUNT HOLDING PLATE (LOWER) 3B7Q613420 3B7Q61342-0 RUBBER MOUNT CAP (LOWER) $29.47 2
(37) BOLT 8-25 3N4613430M 3N4-61343-0 $1.73 4
(38) DAMPER (LOWER) 353613360M 353-61336-0 $11.79 1
(39) ANODE 3C7602182M 3C7-60218-2 $21.23 1
(40) BOLT 9101036630M 910103-6630 $1.39 2
(41) SPRING TILT STOPPER 3E0624731M 3E0-62473-1 $4.95 1
(42) GROUND CABLE 3C8623961M 3C8-62396-0 $4.89 1
(43) BOLT 9101E35612M 910103-5612 $1.15 1
(44) TILT STOPPER ASSY 3Y9624311M 3E0S62431-1 $57.19 1
(45) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.90 1
(46) WASHER 10.5-18-2 3T1613150M 3T1-61315-0 $0.00 2 Sold Out View More Details
(47) TILT STOPPER GRIP 3Y9624330M 3Y9-62433-0 $4.00 1
(48) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.18 2
(49) GROUND CABLE 398623961M 398-62396-1 $6.15 1
(50) BOLT 9101035612M 910103-5612 $1.15 2 Sold Out View More Details
(51) GROUNG CABLE 3A3623961M 3A3-62396-0 $19.09 1
(52) DRAG LINK H ASSY 3E0849050M 3E0-84905-0 $164.98 1
(53) SPACER 3E0849140M 3E0-84914-0 $7.83 1
(54) BOLT 3/8 - 50 3E0849170M 3E0-84917-0 $12.08 1
(55) NYLON NUT 3/8 353849180M 353-84918-0 $7.05 2
(56) WASHER 9.6-18-2 353849160M 353-84916-0 $1.56 3
(57) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 $2.74 1
(58) POWER TRIM & TILT 3T9771501M 3T9-77150-1 $2,636.32 1
(59) CYLINDER PIN (UPPER) 3C8770711M 3C8-77071-1 $11.56 1
(60) WASHER 6.5-23-1.5 345051221M 345-05122-1 $2.33 1
(61) BOLT 9101E30612M 9101E3-0612 $0.90 1
(62) BUSHING 18-24-19 3C8770750M 3C8-77075-0 $2.21 2
(63) BUSHING 18-20-20.5 3E0770760M 3E0-77076-0 $2.48 2
(64) ANODE 369602181M 369-60218-1 $7.94 1 Sold Out View More Details
(65) BOLT 9101035616M 910103-5616 $1.22 1 Sold Out View More Details
(66) TRIM SENSOR 3T1725740M 3T1-72574-0 $196.93 1
(67) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.70 2
(68) BOLT 9101E30620M 9101E3-0620 $1.11 2 Sold Out View More Details
(69) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $45.94 1 Sold Out View More Details
(70) CLAMP 6.5-47.5P 309069720M 309-06972-0 R $2.21 1
(70) CLAMP 6.5-47.5P 309069720M 309-06972-0 L $2.21 1
(71) BOLT 9101030612M 910113-0612 $0.90 1
(72) BOLT 12-20 P-1.75 3B7770851M 3B7-77085-1 $2.95 2 Sold Out View More Details
(73) CYLINDER PIN (LOWER) 3E0771011M 3E0-77101-0 $52.53 1
(74) WASHER 22.6-30-2 346624121M 346-62412-1 $2.24 1
(75) C-RING D=22 9451032200M 945103-2200 $1.98 2
(76) BUSHING 22-25.4-23.5 3E0771030M 3E0-77103-0 $2.48 4
(77) CLAMP 6.5-14L 345069150M 345-06915-0 $4.95 1
(78) SCREW 9215035612M 921503-5612 $0.92 1
(79) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 2 Sold Out View More Details
