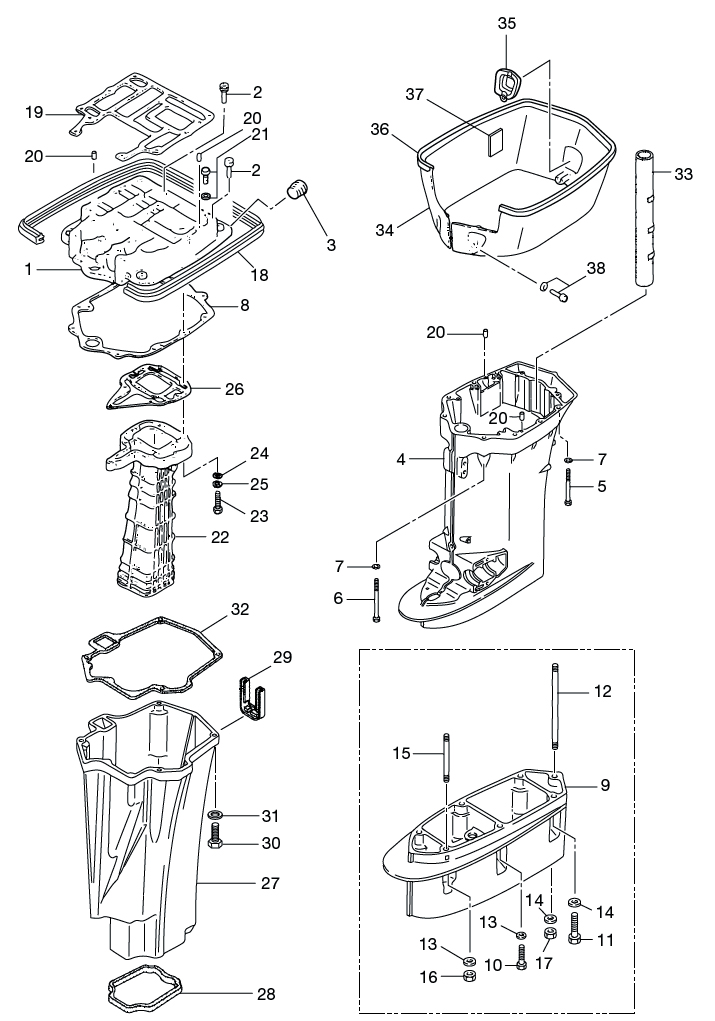

13. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip
(1) ENGINE BASEMENT(2) DRAIN PLUG (ENGINE BASEMENT)(2) DRAIN PLUG (ENGINE BASEMENT)(3) EXHAUST PLUG(4) DRIVE SHAFT HOUSING (L)(5) BOLT(6) BOLT(7) WASHER(7) WASHER(8) DRIVE SHAFT HOUSING GASKET(9) EXTENSION HOUSING(10) BOLT(11) BOLT 10-40(12) STUD BOLT 10-165(13) WASHER(13) WASHER(14) WASHER(14) WASHER(15) STUD(16) NUT(17) NUT 10-P1.25(18) ENGINE BASEMENT SEAL(19) ENGINE BASEMENT GASKET(20) DOWEL PIN 6-12(20) DOWEL PIN 6-12(20) DOWEL PIN 6-12(20) DOWEL PIN 6-12(21) BOLT(22) EXHAUST PIPE(23) BOLT(24) WASHER(25) SPRING WASHER(26) EXHAUST PIPE GASKET(27) EXHAUST HOUSING(28) GROMMET(29) IDLE EXHAUST PORT GROMMET(30) BOLT(31) WASHER 8.4-15.5-1.6(32) EXHAUST HOUSING GASKET(33) REVERSE GAS PASSAGE PIPE(34) APRON(35) GROMMET SPLASH PAN(36) SEAL RUBBER(37) PAD SPLASH PAN(38) BOLT



Parts List
2010 :: 90 HP :: TLDI Tohatsu MD90B :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ENGINE BASEMENT 3T9Q013010 3T9Q01301-0 $339.83 1
(2) ENGINE BASEMENT DRAIN PLUG B 3B7671790M 3B7-67179-0 $1.34 2
(3) EXHAUST PLUG 3H6072570M 3H6-07257-0 $3.68 1
(4) DRIVE SHAFT HOUSING (L) 3T9Q611921 3T9Q61192-1 $0.00 1 Sold Out View More Details
(5) BOLT 8-105 3B7610173M 3B7-61017-2 $4.83 6
(6) BOLT 8-115 3B7610182M 3B7-61018-2 $4.61 2
(7) WASHER 9401E30800M 9401E3-0800 $0.65 8
(8) DRIVE SHAFT HOUSING GASKET 3B7610122M 3B7-61012-0 $12.47 1
(9) EXTENSION HOUSING UL 3B7Q611100 3B7Q61110-0 FOR TRANSOM UL $238.49 1 Sold Out View More Details
(10) BOLT 3T1600010M 3T1-60001-0 FOR TRANSOM UL $5.35 3
(11) BOLT 10-40 3B7600014M 3B7-60001-4 FOR TRANSOM UL $8.33 2
(12) STUD 10-165 3B7611121M 3B7-61112-1 FOR TRANSOM UL $18.64 1
(13) WASHER 9401E30800M 9401E3-0800 FOR TRANSOM UL $0.65 4
(14) WASHER 9402E31000M 940213-1000 FOR TRANSOM UL $1.04 3
(15) STUD 9153E30825M 915313-0825 FOR TRANSOM UL $3.51 1
(16) NUT 9301030800M 930103-0800 FOR TRANSOM UL $1.99 1
(17) NUT 10-P1.25 3B7611140M 3B7-61114-0 FOR TRANSOM UL $2.07 1
(18) ENGINE BASEMENT SEAL 3B7671160M 3B7-67116-0 $13.51 1
(19) ENGINE BASEMENT GASKET 3B7013034M 3B7013032M $28.61 1
(20) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 4
(21) BOLT 9101035635M 910103-5635 $1.96 2 Sold Out View More Details
(22) EXHAUST PIPE 3B7023110M 3B7-02311-0 $70.82 1
(23) BOLT 9101F40635M 9101F4-0635 $0.00 7 Sold Out View More Details
(24) WASHER 9401030600M 940103-0600 $0.70 7
(25) SPRING WASHER 9413030600M 941303-0600 $0.84 7
(26) EXHAUST PIPE GASKET 3B7023122M 3B7023120M $6.04 1
(27) EXHAUST HOUSING 3D8611800M 3D8-61180-0 $120.93 1 Sold Out View More Details
(28) GROMMET 3B7611821M 3B7-61182-0 $10.12 1
(29) IDLE EXHAUST PORT GROMMET 3B7612070M 3B7-61207-0 $9.09 1
(30) BOLT 9101030830M 910103-0830 $1.38 4
(31) WASHER 9402030800M 9402030800M $0.60 4
(32) EXHAUST HOUSING GASKET 3B7611812M 3B7611812M $15.51 1
(33) REVERSE GAS PASSAGE PIPE 3B7611860M 3B7-61186-0 $0.00 1 Sold Out View More Details
(34) APRON 3C7Q612101 3C7Q61210-1 $65.55 1 Sold Out View More Details
(35) APRON GROMMET 3C7612120M 3C7-61212-0 $7.34 1
(36) APRON SEAL 3E0612130M 3E0-61213-0 $8.52 1
(37) APRON PAD 3C7612160M 3C7-61216-0 $1.41 2
(38) BOLT 9101E35612M 910103-5612 $1.07 4
