8. VAPOR SEPARATOR & FUEL LINE

Click Here for Microfiche Usage Tip

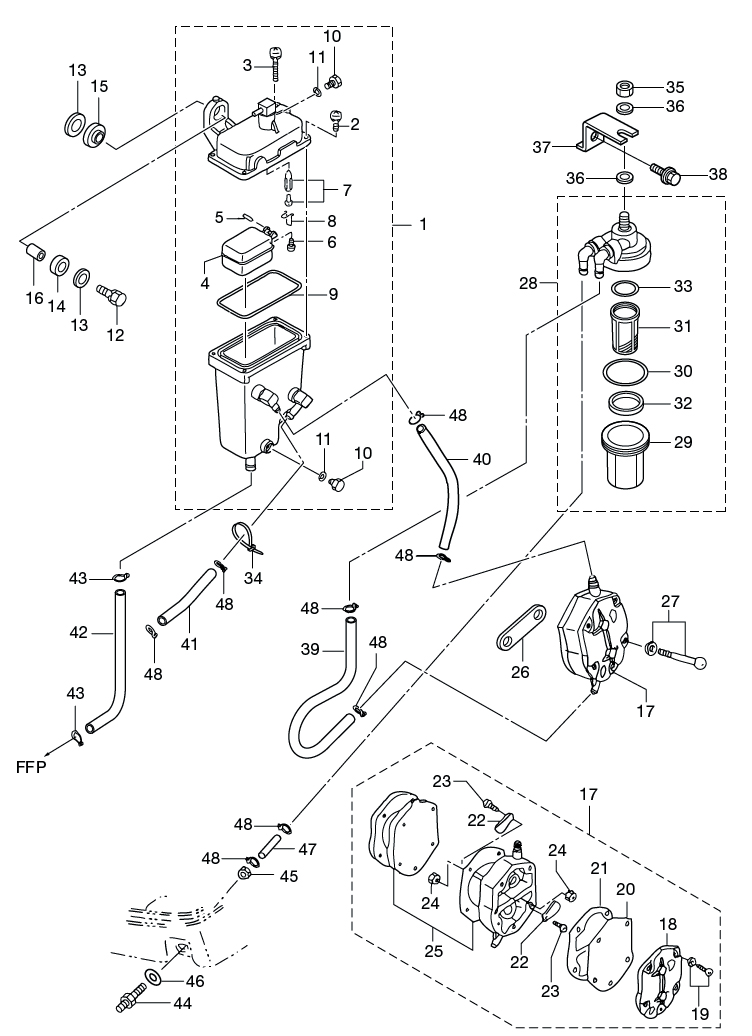

(1) VAPOR SEPARATOR ASSY(2) SCREW(3) SCREW(4) FLOAT VAPOR SEPARATOR(5) FLOAT ARM PIN(6) SCREW(7) FLOAT VALVE ASSY (W/VALVE PIN)(8) CLIP(9) O-RING(10) DRAIN SCREW(10) DRAIN SCREW(11) O-RING(11) O-RING(12) BOLT(13) WASHER 6.5-21-1(13) WASHER 6.5-21-1(14) MOUNT MOTOR COVER LOWER(15) RUBBER MOUNT 8.5-14-2.5(16) SPACER 6.2-9-15.7(17) FUEL PUMP ASSY(17) FUEL PUMP ASSY(18) PUMP COVER(19) SCREW(20) PUMP DIAPHRAGM(21) DIAPHRAGM GASKET B(22) CHECK VALVE(22) CHECK VALVE(23) SCREW(23) SCREW(24) NUT(24) NUT(25) DIAPHRAGM GASKET SET(26) GASKET FUEL PUMP(27) BOLT(28) FUEL FILTER ASSY(29) CUP(30) O-RING A(31) FILTER(32) FLOAT FUEL FILTER(33) O-RING B(34) BAND LEAD WIRE 158(35) NUT(36) WASHER(36) WASHER(37) PLATE FILTER(38) BOLT(39) HOSE(40) HOSE(41) HOSE(42) HOSE(43) CLIP(43) CLIP(44) FUEL CONNECTOR (ENGINE MALE)(45) NUT(46) BUSHING 10.2-12-2.9(47) HOSE(48) CLIP FUEL PIPE o10(48) CLIP FUEL PIPE o10(48) CLIP FUEL PIPE o10(48) CLIP FUEL PIPE o10(48) CLIP FUEL PIPE o10(48) CLIP FUEL PIPE o10(48) CLIP FUEL PIPE o10(48) CLIP FUEL PIPE o10



Parts List
2010 :: 90 HP :: TLDI Tohatsu MD90B :: VAPOR SEPARATOR & FUEL LINE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) VAPOR SEPARATOR ASSY 3T5101501M 3T5101500M $200.01 1
(2) SCREW 9225316414M 922531-6414 $0.47 3
(3) SCREW 9215036430M 921503-6430 $0.00 1 Sold Out View More Details
(4) FLOAT 3T5032300M 3T5-03230-0 $24.02 1
(5) ARM PIN FLOAT 3F3032320M 3F3-03232-0 $2.19 1
(6) SCREW 9215030408M 921503-0408 $0.75 1
(7) FLOAT VALVE 3R3032390M 3R3-03239-0 WITH VALVE PIN $11.64 1
(8) CLIP 344032440M 344-03244-0 $3.51 1
(9) O-RING 3T5032350M 3T5-03235-0 $5.34 1
(10) DRAIN SCREW 345032920M 345-03292-0 $3.91 2
(11) O-RING 336032930M 336-03293-0 $1.79 2
(12) BOLT 9101036630M 910103-6630 $1.30 2
(13) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(14) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 2
(15) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 2
(16) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 2
(17) FUEL PUMP 356040001M 356-04000-1 $88.09 1
(18) PUMP COVER 334040040M 334-04004-0 $16.82 1
(19) SCREW 9225F26528M 9225F2-6528 $0.69 3
(20) PUMP DIAPHRAGM 334040050M 334-04005-0 $29.88 1
(21) DIAPHRAGM GASKET B 334040070M 334-04007-0 $8.52 1
(22) CHECK VALVE 356040440M 356-04044-0 $4.19 2
(23) SCREW 9217220306M 921722-0306 $0.88 2
(24) NUT 9302220300M 930222-0300 $0.86 2
(25) DIAPHRAGM GASKET SET 356040300M 356-04030-0 $25.62 1
(26) FUEL PUMP GASKET 346049011M 346-04901-0 $2.71 1
(27) BOLT 9101036640M 910103-6640 $1.44 2
(28) FUEL FILTER 3T5022300M 3T5-02230-0 $47.18 1
(29) CUP 3B7022370M 3B7-02237-0 $7.34 1
(30) O-RING A 3B7022350M 3B7-02235-0 $2.56 1
(31) FILTER 3B7022340M 3B7-02234-0 $6.59 1
(32) FLOAT 3T5022290M 3T5-02229-0 $6.84 1
(33) O-RING B 3B7022360M 3B7-02236-0 $1.45 1
(34) LEAD WIRE BAND 150 369843980M 369-84398-0 $1.67 4
(35) NUT 9301030800M 930103-0800 $1.99 1
(36) WASHER 9401030800M 940113-0800 $0.84 2
(37) FILTER PLATE 3T5022390M 3T5-02239-0 $3.97 1
(38) BOLT 9101036614M 910103-6614 $1.09 1
(39) FUEL PIPE A 98AB50280M 98AB-5-0280 98AB-501000 $11.41 1
(40) FUEL PIPE B 98AB50210M 98AB-5-0210 98AB-501000 $11.41 1
(41) HOSE 98AB50075M 98AB-50-075 98AB-501000 $11.41 1
(42) FUEL PIPE C 98AB70210M 98AB-70-210 98AB-701000 $13.44 1
(43) CLIP ø 12 3C7022150M 3C7-02215-0 $1.41 2
(44) FUEL CONNECTOR (ENGINE MALE) 3B2702601M 3B2-70260-1 $16.97 1
(45) NUT 3T9702530M 3T9-70253-0 $2.03 1 Sold Out View More Details
(46) BUSHING 10.2-12-2.9 3T9702640M 3T9-70264-0 $1.57 1
(47) RUBBER PIPE 98AB50450M 98AB-50-450 98AB-501000 $11.41 1
(48) CLIP ø10 338022150M 338-02215-0 $1.41 2
