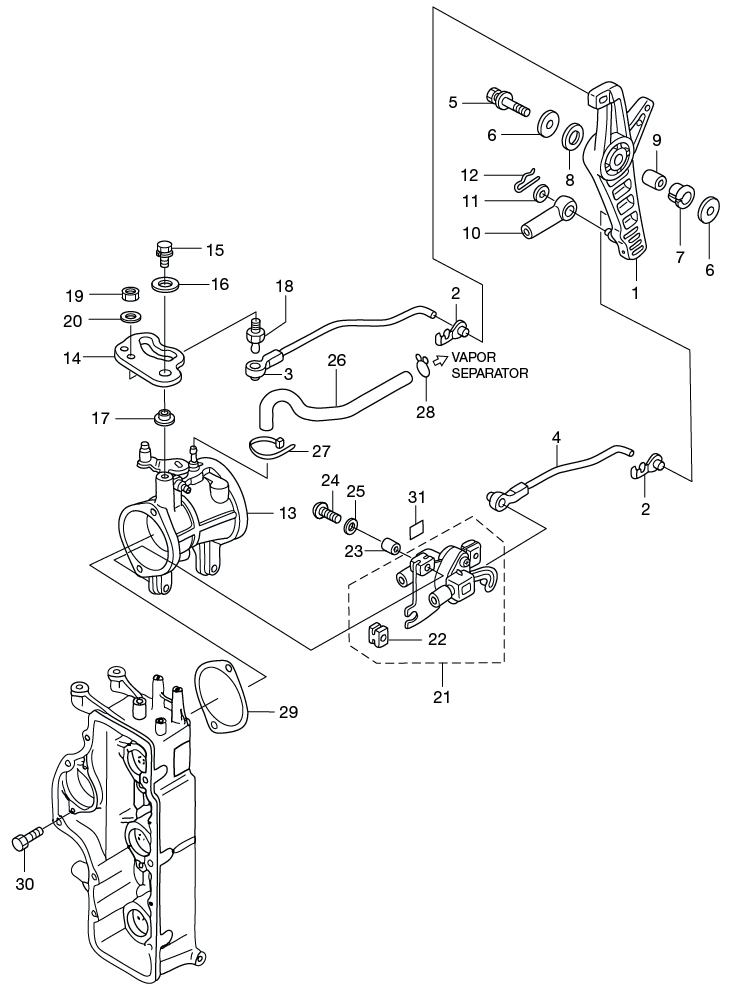

7. THROTTLE

Click Here for Microfiche Usage Tip
(1) ADVANCER ARM(2) ROD SNAP 5-3(2) ROD SNAP 5-3(3) LINK ROD ASSY (THROTTLE)(4) LINK ROD ASSY (TPS)(5) BOLT(6) WASHER 8.5-24-1.5(6) WASHER 8.5-24-1.5(7) BUSHING 12-14-15.5(8) WASHER 12.5-24-1(9) COLLAR 8.4-12-17(10) CABLE JOINT(11) WASHER 8.5-18-1.6(12) SNAP PIN D=8(13) THROTTLE BODY ASSY(14) THROTTLE CAM(15) BOLT(16) WASHER 6.5-21-1(17) BUSHING 6-24-7(18) BALL JOINT B(19) NUT(20) WASHER(21) TPS ASSY(22) RUBBER MOUNT(23) COLLAR 4.2-6-10.5(24) SCREW(25) WASHER 4.2-12.5-0.8(26) HOSE(27) BAND LEAD WIRE 104(28) CLIP o7(29) GASKET THROTTLE BODY(30) BOLT 6-25 PRECOATED(31) TPS DECAL



Parts List
2010 :: 90 HP :: TLDI Tohatsu MD90B :: THROTTLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ADVANCER ARM 3B7B637113 3B7B63711-3 $0.00 1 Sold Out View More Details
(2) ROD SNAP 5 - 3 3B7637330M 3B7-63733-0 $1.41 2
(3) LINK ROD ASSY (THROTTLE) 3T9637022M 3T9-63702-1 $18.68 1
(4) LINK ROD ASSY (TPS) 3T9101091M 3T9-10109-1 $6.30 1
(5) BOLT 9101036835M 910103-6835 $2.01 1
(6) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.85 2
(7) BUSHING 12-14-15.5 3B7637130M 3B7-63713-0 $2.07 1
(8) WASHER 12.5-24-1 3B7637310M 3B7-63731-0 $2.31 1
(9) COLLAR 8.4-12-17 3B7637321M 3B7-63732-0 $2.13 1
(10) CABLE JOINT 3B7837151M 3B7-83715-1 $4.83 2 Sold Out View More Details
(11) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.39 2
(12) SNAP PIN D=8 9516030800M 951603-0800 $0.70 2
(13) THROTTLE BODY ASSY 3T9101001M 3T9-10100-1 90PS $188.23 1 Sold Out View More Details
(14) THROTTLE CAM 3T9637180M 3T9-63718-0 $0.00 1 Sold Out View More Details
(15) BOLT 9101036618M 910103-6618 $0.79 1
(16) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(17) BUSHING 6-24-7 3T5637210M 3T5-63721-0 $2.59 1
(18) BALL JOINT B 346052281M 346-05228-0 $4.63 1
(19) NUT 9302030600M 930203-0600 $0.00 1 Sold Out View More Details
(20) WASHER 9401030600M 940103-0600 $0.70 1
(21) TPS 3T5101100M 3T5-10110-0 $286.24 1
(22) RUBBER MOUNT 3T5101070M 3T5-10107-0 $5.58 3
(23) COLLAR 4.2-6-10.5 3T5101280M 3T5-10128-0 $1.47 1
(24) SCREW 9215036420M 921503-6420 $0.92 1
(25) WASHER 4.2-12.5-0.8 3T5101290M 3T5-10129-0 $0.97 1
(26) FUEL PIPE 98AB30360M 98AB-30-360 98AB-301000 $10.72 1
(27) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
(28) CLIP ø 7 338011330M 338-01133-0 $1.04 1
(29) THROTTLE BODY GASKET 3T5101040M 3T5-10104-0 $2.71 1
(30) BOLT 6-25 PRE-COATED 3T5022410M 3T5-02241-0 $0.79 2
(31) TPS DECAL 3T5721950M 3T5-72195-0 $1.20 1 Sold Out View More Details
