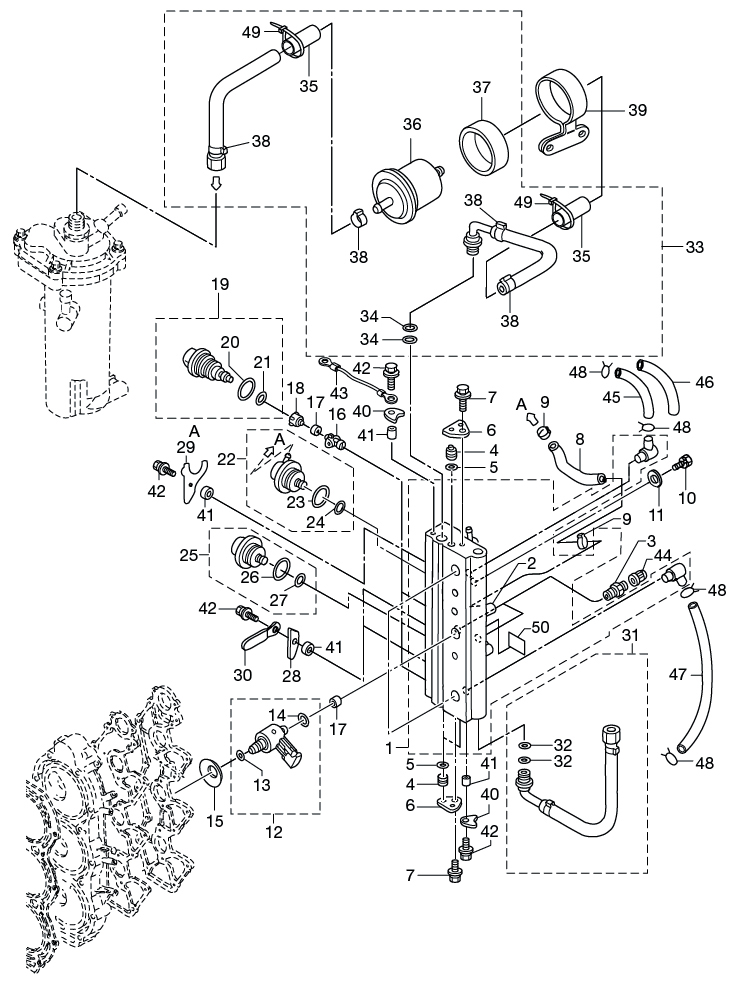

4. AIR RAIL

Click Here for Microfiche Usage Tip
(1) AIR RAIL ASSY(2) NIPPLE L(3) VALVE ASSY (PRESSURE CHECK)(4) PLUG 10.5(4) PLUG 10.5(5) O-RING 6.8-1.9(5) O-RING 6.8-1.9(6) PLUG STOPPER(6) PLUG STOPPER(7) BOLT(7) BOLT(8) HOSE(9) CLAMP 29/64(9) CLAMP 29/64(10) BOLT(11) WASHER(12) AIR INJECTOR COMPLETE(13) O-RING 5-52(14) O-RING 2.4-9.6(15) DISC SPRING(16) FUEL INJECTOR INSERT(17) SEAL COMPRESSION(17) SEAL COMPRESSION(18) FUEL INJECTOR ADAPTER(19) FUEL INJECTOR ASSY(20) O-RING 2.8-20.2(21) O-RING 3.5-735(22) FUEL REGULATOR ASSY(23) O-RING 2.5-20(24) O-RING 5-2.5(25) AIR REGULATOR ASSY(26) O-RING 2.5-20(27) O-RING 5-2.5(28) HOLDING PLATE(29) HOLDING PLATE(30) CLAMP 6.5-47.5P(31) AIR HOSE ASSY(32) O-RING 9.8-1.9(33) FUEL HOSE ASSY(34) O-RING 9.8-1.9(35) PROTECTOR (L=150)(35) PROTECTOR (L=150)(36) HIGH PRESSURE FUEL FILTER(37) FUEL FILTER RUBBER MOUNT(38) CLAMP 21/32(38) CLAMP 21/32(38) CLAMP 21/32(38) CLAMP 21/32(39) FUEL FILTER BAND(40) HOLDING PLATE(40) HOLDING PLATE(41) COLLAR 6.7-12.7-3(41) COLLAR 6.7-12.7-3(41) COLLAR 6.7-12.7-3(41) COLLAR 6.7-12.7-3(42) BOLT(42) BOLT(42) BOLT(42) BOLT(43) GROUND (EARTHWIRE)(44) CAP VALVE(45) HOSE(46) PROTECTOR o12-630(47) HOSE(48) CLIP FUEL PIPE o10(48) CLIP FUEL PIPE o10(48) CLIP FUEL PIPE o10(48) CLIP FUEL PIPE o10(49) BAND LEAD WIRE 104(49) BAND LEAD WIRE 104(50) AIR RAIL DECAL



Parts List
2010 :: 90 HP :: TLDI Tohatsu MD90B :: AIR RAIL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR RAIL 3T9100800M 3T9-10080-0 $389.95 1
(2) L-NIPPLE 3T5101660M 3T5-10166-0 $9.41 1
(3) VALVE 3T5100980M 3T5-10098-0 $11.94 2
(4) PLUG ø 10.5 3T5101670M 3T5-10167-0 $3.14 3
(5) O-RING 1.9-6.8 3T5101641M 3T5-10164-0 $2.37 3
(6) PLUG STOPPER 3T5101650M 3T5-10165-0 $1.32 2
(7) BOLT 9101036612M 910103-6612 $1.24 2
(8) HOSE 98AY45105M 98AJ-4-0105 $8.88 1
(9) CLAMP 29/64 3T5100910M 3T5-10091-0 $7.48 2 Sold Out View More Details
(10) BOLT 9101030865M 910103-0865 $1.82 2
(11) WASHER 9401030800M 940113-0800 $0.90 2
(12) AIR INJECTOR 3Y7103100M 3Y7-10310-0 $267.79 3
(13) O-RING 5-52 (ø 1-10) 3T5103170M 3T5-10317-0 $9.73 1
(14) O-RING 2.4-9.6 3Y9103111M 3Y9-10311-0 BROWN $3.43 1
(15) AIR INJECTOR DISC SPRING 3Y9103120M 3Y9-10312-0 $3.74 3
(16) FUEL INJECTOR INSERT 3T5103140M 3T5-10314-0 $19.62 3
(17) COMPRESSION SEAL 3T5103160M 3T5-10316-0 $1.98 6
(18) FUEL INJECTOR ADAPTER 3T5103150M 3T5-10315-0 $19.62 3
(19) FUEL INJECTOR 3T5103000M 3T5-10300-0 MARK : 37003 (BLUE) $190.36 3
(20) O-RING 2.8-20.2 3T5103040M 3T5-10304-0 $11.79 1
(21) O-RING 3.5-7.5 3T5103030M 3T5-10303-0 $8.95 1
(22) FUEL REGULATOR 3T5101480M 3T5-10148-0 $107.82 1 Sold Out View More Details
(23) O-RING 2.5-20 3T5100950M 3T5-10095-0 $4.77 1
(24) O-RING 2.5-5 3T5100940M 3T5-10094-0 $3.94 1
(25) AIR REGULATOR 3T5100900M 3T5-10090-0 $133.92 1
(26) O-RING 2.5-20 3T5100950M 3T5-10095-0 $4.77 1
(27) O-RING 2.5-5 3T5100940M 3T5-10094-0 $3.94 1
(28) FUEL INJECTOR HOLDING PLATE 3T5103020M 3T5-10302-0 $1.64 2
(29) FUEL INJECTOR HOLDING PLATE 3Y9103020M 3Y9-10302-0 $11.74 1
(30) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.21 1
(31) AIR HOSE 3T9100880M 3T9-10088-0 $119.14 1
(32) O-RING 1.9-9.8 3T5101620M 3T5-10162-0 $1.67 2
(33) FUEL HOSE ASSY 3T9B100893 3T9-10089-2 $144.54 1
(34) O-RING 1.9-9.8 3T5101620M 3T5-10162-0 $1.67 2
(35) PROTECT TUBE 3U1061570M 3U1-06157-0 $3.77 1
(36) FUEL FILTER 3T5B101430 3T5B10143-0 FOR HIGH PRESSURE $100.63 1
(37) FUEL FILTER RUBBER MOUNT 3T5101450M 3T5-10145-0 $3.41 1 Sold Out View More Details
(38) CLAMP 21/32 3T5100860M 3T5-10086-0 $5.96 4
(39) FUEL FILTER BAND 3Y9101441M 3Y9-10144-0 $0.00 1 Sold Out View More Details
(40) NIPPLE HOLDING PLATE 3T5101690M 3T5-10169-0 $1.32 2
(41) COLLAR 6.7-12.7-3 3T5101530M 3T5-10153-0 $3.27 5
(42) BOLT 9101036616M 910103-6616 $1.27 5
(43) GROUNG CABLE 3A3623961M 3A3-62396-0 $19.09 1
(44) VALVE CAP 3T5100990M 3T5-10099-0 $1.67 2
(45) HOSE 98AB50670M 98AB-50-670 98AB-501000 $12.20 1
(46) PROTECTOR ø12-630 3Y6061570M 3Y6-06157-0 $0.00 1 Sold Out View More Details
(47) AIR PIPE 98AB50230M 98AB-5-0230 98AB-501000 $12.20 1
(48) CLIP ø10 338022150M 338-02215-0 $1.50 10
(49) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 $0.00 1 Sold Out View More Details
(50) AIR RAIL DECAL 3T5721960M 3T5-72196-0 $1.64 1
