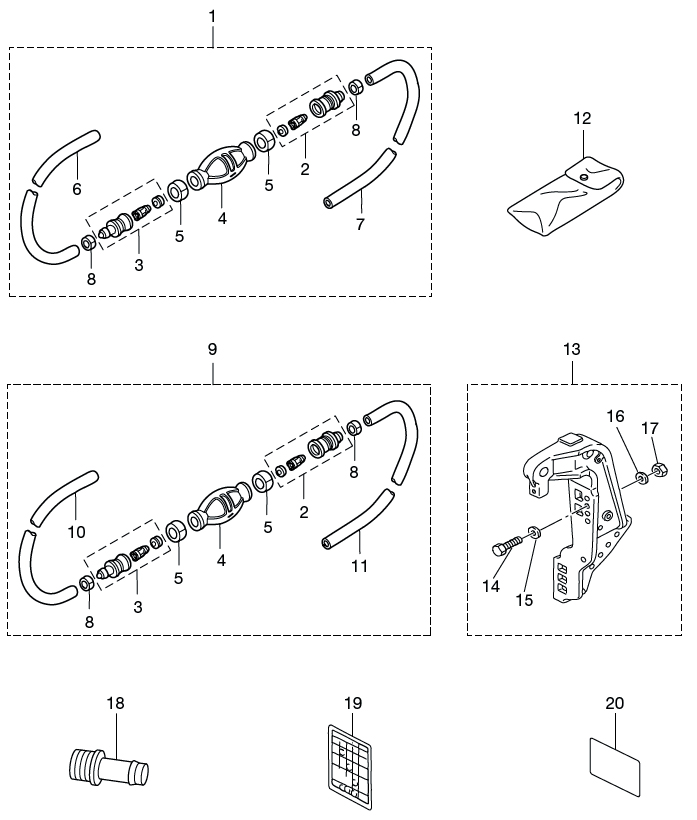

22. ACCESSORIES

Click Here for Microfiche Usage Tip
(1) PRIMER BULB ASSY(2) JOINT A ASSY IN(2) JOINT A ASSY IN(3) JOINT A ASSY OUT(3) JOINT A ASSY OUT(4) PRIMER BULB(4) PRIMER BULB(5) CLAMP(5) CLAMP(5) CLAMP(5) CLAMP(6) RUBBER PIPE(7) RUBBER PIPE(8) CLAMP(8) CLAMP(8) CLAMP(8) CLAMP(9) PRIMER BULB ASSY(10) HOSE(11) HOSE(12) TOOL ASSY(13) RIGGING BOLT SET(14) BOLT M12-P1.25-105(15) WASHER 13-34-3(16) WASHER(17) NUT M12-P1.25(18) HOSE JOINT(19) LABEL WORNIG BUZZER(20) LABEL OIL CAUTION (DOMESTIC MARKET)(20) LABEL OIL CAUTION (EXPORT MARKET)



Parts List
2010 :: 75 HP :: TLDI Nissan NSD75C2 :: ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) PRIMER BULB ASSY 3T1702001M 3T1-70200-1 STD $81.34 1
(2) JOINT A ASSY IN 3C7702201M 3C7-70220-1 $8.52 1
(3) JOINT A ASSY OUT 3C7702241M 3C7-70224-1 $8.77 1
(4) PRIMER BULB 3C7702111M 3C7-70211-0 $22.31 1
(5) CLAMP 3C7702170M 3C7-70217-0 $3.27 2
(6) RUBBER HOSE 98AB70700M 98AB-7-0700 98AB-701000 $13.44 1
(7) HOSE 98AB701600M 98AB-701600 98AB-701000×2 $13.44 1
(8) CLAMP 332702010M 332-70201-0 $2.07 2
(9) PRIMER BULB ASSY 3FF702002M 3FF-70200-2 LOW PERMEATION PARTS / (FOR USA MODEL) $81.34 1
(10) HOSE 3GF702410M 3GF-70241-0 LOW PERMEATION PARTS / (FOR USA MODEL) $0.00 1 Sold Out View More Details
(11) HOSE 3GF702400M 3GF-70240-0 LOW PERMEATION PARTS / (FOR USA MODEL) $0.00 1 Sold Out View More Details
(12) TOOL 3H6721000M 3H6-72100-0 $28.06 1
(13) RIGGING BOLT SET 3C8721200M 3C8-72120-0 $47.55 1
(14) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 $5.40 4
(15) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 4
(16) WASHER 9401031200M 940103-1200 $0.51 4
(17) NUT P1.25 3C7621391M 3C7-62139-1 $1.62 4
(18) HOSE JOINT 3T1724050M 3T1-72405-0 $5.73 1
(19) WARNING BUZZER CAUTION DECAL 3T5720500M 3T5-72050-0 $4.56 1
(20) LABEL OIL CAUTION (D) 3B7720420M 3B7-72042-0 FOR DOMESTIC MARKET $0.00 1 Sold Out View More Details
(20) LABEL OIL CAUTION (X) 3B7720430M 3B7-72043-0 FOR EXPORT MARKET $1.76 1 Sold Out View More Details
