20. SHIFT

Click Here for Microfiche Usage Tip

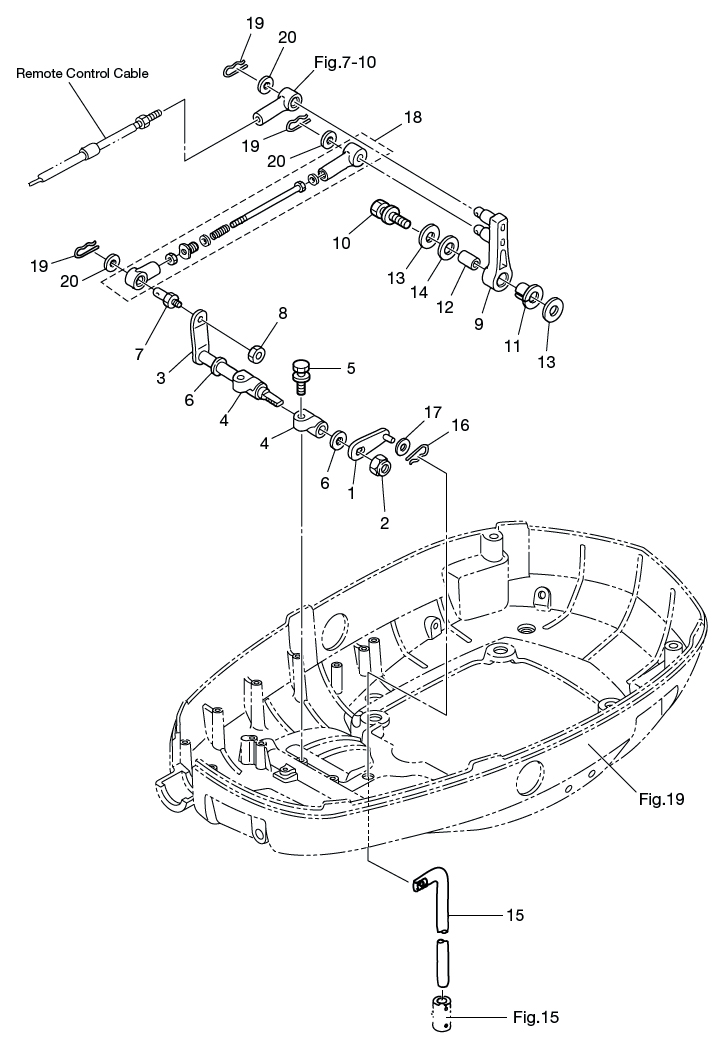

(1) SHIFT ROD LEVER(2) NYLON NUT(3) SHIFT LEVER SHAFT(4) HOLDER SHIFT LEVER SHAFT(4) HOLDER SHIFT LEVER SHAFT(5) BOLT(6) WASHER 10.5-18-1.5(6) WASHER 10.5-18-1.5(7) CABLE PIN(8) NUT(9) SHIFT ARM(10) BOLT(11) BUSHING 12-14-15.5(12) COLLAR 8.4-12-17(13) WASHER 8.5-24-1.5(13) WASHER 8.5-24-1.5(14) WASHER 12.5-24-1(15) SHIFT ROD(16) SNAP PIN D=6(17) WASHER 7-18-1.6(18) SHIFT ASSIST ASSY(19) R-PIN D=8(19) R-PIN D=8(19) R-PIN D=8(20) WASHER 8.5-18-1.6(20) WASHER 8.5-18-1.6(20) WASHER 8.5-18-1.6



Parts List
2010 :: 75 HP :: TLDI Nissan NSD75C2 :: SHIFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) SHIFT ROD LEVER 3Y9662250M 3Y9-66225-0 $17.12 1
(2) NYLON NUT 9304031000M 930403-1000 $4.56 1
(3) SHIFT LEVER SHAFT 3T9662250M 3T9-66225-0 $36.98 1
(4) SHIFT LEVER SHAFT HOLDER 353661451M 353-66145-1 $5.07 2
(5) BOLT 9101035825M 910103-5825 $1.89 2
(6) WASHER 10.5-18-1.5 332613150M 332-61315-0 $0.90 2
(7) CABLE PIN 353837281M 353-83728-0 $8.97 1
(8) NUT 9301030600M 930113-0600 $0.84 1
(9) SHIFT ARM 3B7661220M 3B7-66122-0 $22.84 1
(10) BOLT 9101035835M 910103-5835 $3.28 1
(11) BUSHING 12-14-15.5 3B7637130M 3B7-63713-0 $2.07 1
(12) COLLAR 8.4-12-17 3B7637321M 3B7-63732-0 $2.13 1
(13) WASHER 8.5-24-1.5 3B7637300M 3B7-63730-0 $1.85 2
(14) WASHER 12.5-24-1 3B7637310M 3B7-63731-0 $2.31 1
(15) SHIFT ROD 3T9662150M 3T9-66215-0 $0.00 1 Sold Out View More Details
(16) SNAP PIN D=6 9516030600M 951603-0600 $0.84 1
(17) WASHER 7-18-1.6 3AL837190M 3AL-83719-0 $4.42 1 Sold Out View More Details
(18) SHIFT ASSIST ASSY 3T9661501M 3T9-66150-1 $26.20 1
(19) SNAP PIN D=8 9516030800M 951603-0800 $0.70 3
(20) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.39 3
