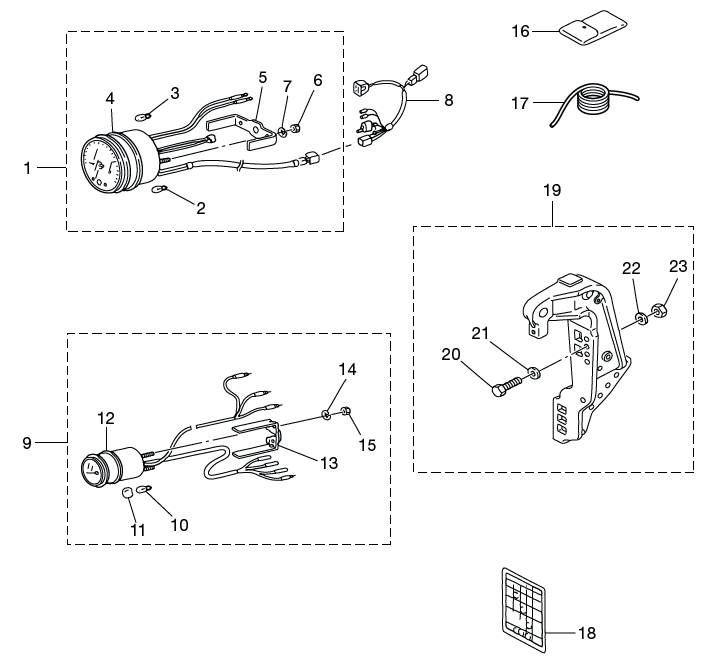

24. ACCESSORIES

Click Here for Microfiche Usage Tip
(1) TACHOMETER (BLACK)(1) TACHOMETER (WHITE)(1) TACHOMETER (W/OIL LAMP)(2) OIL BULB 12V-1.7W(3) METER BULB 12V-1.8W(4) METER DAMPER(5) FITTING PLATE(6) NUT(7) SPRING WASHER(8) METER LEAD WIRE L=8000(9) TRIM METER (BLACK)(9) TRIM METER (WHITE)(9) TRIM METER ASSY(10) METER BULB(11) METER BULB CAP(12) METER DAMPER(13) FITTING PLATE(14) SPRING WASHER(15) NUT(16) TOOL KIT(17) SAFETY ROPE 6-1600MM(18) BUZZER CAUTION DECAL(19) RIGGING BOLT SET(20) BOLT STERN BRACKET 12-P1.25(21) WASHER 13-34-3(22) WASHER(23) NUT 12-P1.25



Parts List
2010 :: 70 HP :: TLDI Tohatsu MD70B :: ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TACHOMETER (BLACK) 3GF726470M 3GF726470M $0.00 1 Sold Out View More Details
(1) TACHOMETER (WHITE) 3GL726470M 3GL726470M $0.00 1 Sold Out View More Details
(1) TACHOMETER 3Z5726401M 3Z5-72640-1 $0.00 1 Sold Out View More Details
(2) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 $3.27 3
(3) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 $0.00 1 Sold Out View More Details
(4) METER DAMPER 3B7726560M 3B7-72656-0 $3.27 1
(5) FITTING PLATE 3B7726610M 3B7-72661-0 $25.33 1
(6) NUT 9302030500M 930203-0500 $0.60 2
(7) SPRING WASHER 9413030500M 941303-0500 $0.90 2
(8) METER LEAD WIRE 3T5725370M 3T5-72537-0 $201.55 1
(9) TRIM METER KIT 3GF725710M 3GF725710M $98.67 1
(9) TRIM METER KIT 3GL725710M 3GL725710M $98.67 1
(9) TRIM METER 3T1725710M 3F3-72574-1 $0.00 1 Sold Out View More Details
(10) METER BULB 12V-1.7W 3T1726590M 3T1-72659-0 $3.85 1 Sold Out View More Details
(11) METER BULB CAP 3T1726530M 3T1-72653-0 $2.40 1 Sold Out View More Details
(12) METER DAMPER 3B7726550M 3B7-72655-0 $2.68 1
(13) FITTING PLATE 3T1726650M 3T1-72665-0 $12.61 1 Sold Out View More Details
(14) SPRING WASHER 9413030400M 941303-0400 $0.90 2
(15) NUT 9302030400M 930203-0400 $0.00 2 Sold Out View More Details
(16) TOOL 3H6721000M 3H6-72100-0 $28.06 1
(17) ROPE 3B7722010M 3B7-72201-0 $5.07 1
(18) WARNING BUZZER CAUTION DECAL 3T5720500M 3T5-72050-0 $4.56 1
(19) RIGGING BOLT SET 3C8721200M 3C8-72120-0 $47.55 1
(20) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 L=105 $5.40 4
(21) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 4
(22) WASHER 9401031200M 940103-1200 $0.51 4
(23) NUT P1.25 3C7621391M 3C7-62139-1 $1.62 4
