15. GEAR CASE (PROPELLER SHAFT)

Click Here for Microfiche Usage Tip

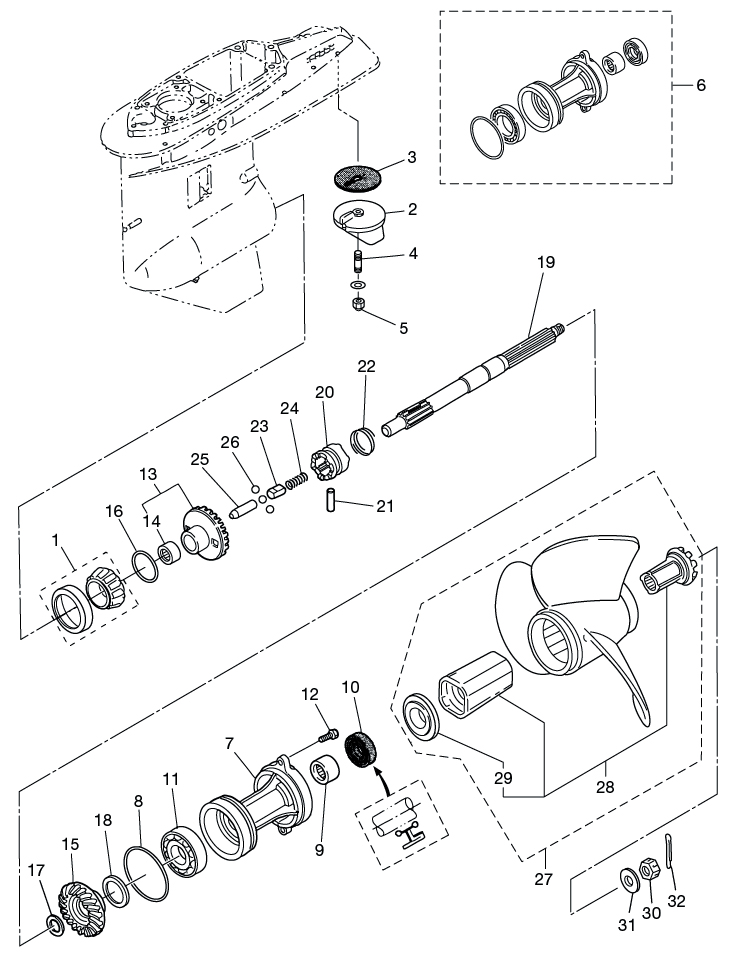

(1) TAPERED ROLLER BEARING 30209(2) TRIM TAB(3) TRIM TAB GASKET(4) STUD BOLT(5) NYLON NUT 8P1.25(6) PROPELLER SHAFT HOUSING ASSY(7) PROPELLER SHAFT HOUSING(8) O-RING 3.1-94.4(9) ROLLER BEARING 30-40-30(10) OIL SEAL 30-50-12(11) BALL BEARING 6208(12) PRE-COATED BOLT 8-30(13) BEVEL GEAR ASSY (A)(14) ROLLER BEARING 25-32-26(15) BEVEL GEAR C(16) SHIM 47-57-0.15(16) SHIM 47-57-0.1(17) WASHER T=3.2(17) WASHER T=3.0(17) WASHER T=2.8(18) SHIM 42-50-0.15(18) SHIM 42-50-0.1(19) PROPELLER SHAFT(20) CLUTCH(21) PIN CLUTCH(22) SNAP CLUTCH PIN(23) SPRING RETAINER CLUTCH(24) SPRING CLUTCH(25) PUSH ROD CLUTCH(26) STEEL BALL(27) PROPELLER ASSY (11") (3?355?279)(27) PROPELLER ASSY (13") (3?355?330)(27) PROPELLER ASSY (15") (3?349?381)(27) PROPELLER ASSY (16") (3?336?406)(27) PROPELLER ASSY (17") (3?336?432)(27) PROPELLER ASSY (19") (3?330?483)(27) PROPELLER ASSY (21") (3?324?533)(28) PROPELLER HUB KIT(29) FORWARD THRUST WASHER(30) PROPELLER NUT(31) WASHER 17-32-3(32) SPLIT PIN 3-25



Parts List
2010 :: 70 HP :: TLDI Tohatsu MD70B :: GEAR CASE (PROPELLER SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TAPER ROLLER BEARING 30209 3C7602150M 3C7-60215-0 $61.67 1
(2) TRIM TAB 3B7602171M 3B7-60217-1 $26.40 1
(3) TRIM TAB 3B7602190M 3B7-60219-0 $3.40 1
(4) STUD BOLT 9153030825M 915303-0825 $3.51 1
(5) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 1
(6) PROPELLER SHAFT HOUSING ASSY 3B7Q873231 3B7Q87323-1 $157.69 1
(7) PROPELLER SHAFT HOUSING 3B7Q601011 3B7S60101-1 $80.99 1
(8) O-RING 3.1-94.4 3B7601030M 3B7-60103-0 $4.54 1
(9) NEEDLE BEARING 30-40-30 3B7602110M 3B7-60211-0 $33.06 1
(10) OIL SEAL 30-50-12 3B7601110M 3B7-60111-0 $11.18 1
(11) BEARING 6208 960106208M 9601-0-6208 $30.77 1
(12) PRE-COATED BOLT 8-30 3C7601081M 3C7-60108-1 $5.92 2
(13) BEVEL GEAR A 3J5640100M 3J5-64010-0 70PS $242.28 1
(14) NEEDLE BEARING 25-32-26 3B7640110M 3B7-64011-0 $34.51 1
(15) BEVEL GEAR C 3Y7640930M 3Y7-64093-0 70PS $168.25 1
(16) SHIM 47-57-0.15 3B7640150M 3B7-64015-0 $0.87 0
(16) SHIM 47-57-0.1 3B7640160M 3B7-64016-0 $1.42 0
(17) BEVEL GEAR C WASHER 3B7640320M 3B7-64032-0 $34.08 0
(17) BEVEL GEAR C WASHER 3B7640340M 3B7-64034-0 $34.08 0
(17) BEVEL GEAR C WASHER 3B7640350M 3B7-64035-0 $7.23 0
(18) SHIM 42-50-0.15 3B7640360M 3B7-64036-0 $0.92 0 Sold Out View More Details
(18) SHIM 42-50-0.1 3B7640370M 3B7-64037-0 $0.87 0 Sold Out View More Details
(19) PROPELLER SHAFT 3B7642110M 3B7-64211-0 $295.84 1 Sold Out View More Details
(20) CLUTCH 3T1642151M 3T1-64215-1 $222.87 1
(21) CLUTCH PIN 3B7642180M 3B7-64218-0 $3.39 1
(22) CLUTCH PIN SNAP 3B7642191M 3B7-64219-1 $5.18 1
(23) SPRING RETAINER L=30.5 3T1642220M 3T1-64222-0 $11.00 1
(24) CLUTCH SPRING 346642210M 346-64221-0 $1.61 1
(25) PUSH ROD 3T1642230M 3T1-64223-0 $10.08 1
(26) BALL 3T1642240M 3T1-64224-0 $1.27 3
(27) PROPELLER ASSY (11) 3N4B645231 3E0-64176-0 OPT $142.37 1
(27) PROPELLER ASSY (13) 3N4B645271 3E0-64181-0 OPT $142.37 1
(27) PROPELLER ASSY (15) 3N4B645321 3E0-64185-0 STD:90PS 70PS $142.37 1
(27) PROPELLER ASSY (16) 3N4B645341 3E0-64187-0 OPT $0.00 1 Sold Out View More Details
(27) PROPELLER ASSY (17) 3N4B645361 3E0-64189-0 OPT $142.37 1
(27) PROPELLER ASSY (19) 3N4B645411 3N4B64541-1 OPT $142.37 1
(27) PROPELLER ASSY (21) 3N4B645451 3N4B64545-1 OPT $251.67 1 Sold Out View More Details
(28) PROPELLER HUB KIT 3Y9642380M 3Y9-64238-0 $0.00 1 Sold Out View More Details
(29) FORWARD THRUST WASHER 3E0642350M 3E0-64235-0 $142.56 1 Sold Out View More Details
(30) PROPELLER NUT 353641210M 353-64121-0 $15.44 1
(31) WASHER 17-32-3 345641240M 345-64124-0 $3.39 1
(32) SPLIT PIN 3-25 9515030325M 951503-0325 $0.86 1
