6. FFP ASSEMBLY

Click Here for Microfiche Usage Tip

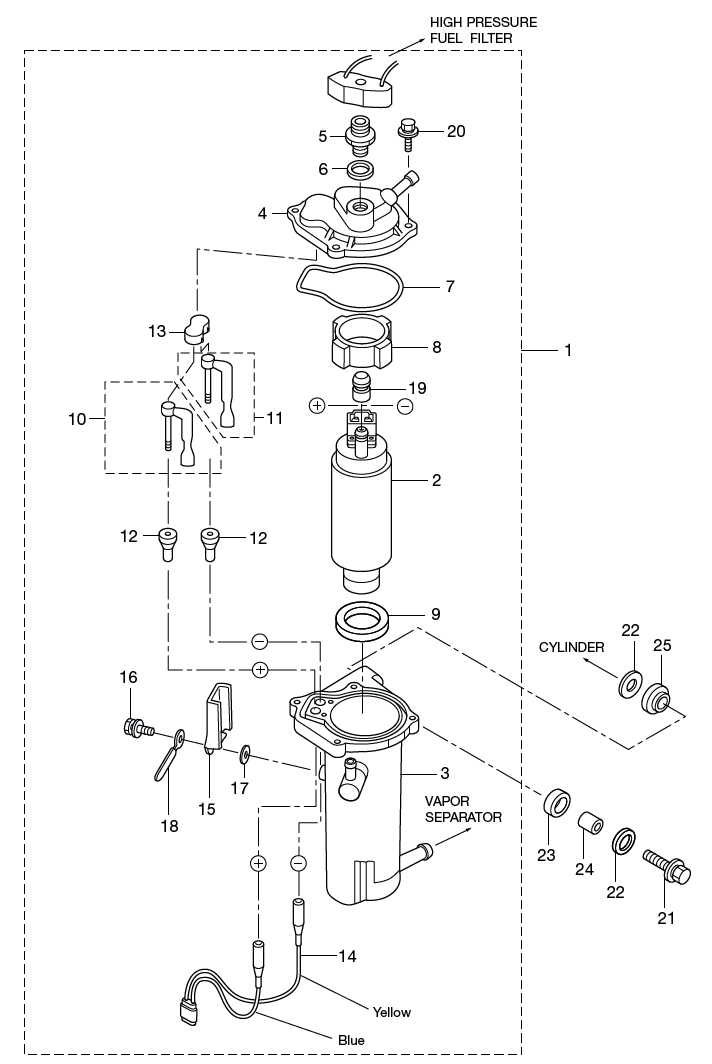

(1) FUEL FEED PUMP ASSY(2) FUEL FEED PUMP(3) CASE ASSY FFP(4) UPPER CASE ASSY FFP(5) ADAPTER(6) WASHER METAL 10.2-17-2(7) GASKET FFP(8) GROMMET FFP(9) GROMMET FFP LOWER(10) CABLE TERMINAL ASSY (POSITIVE)(11) CABLE TERMINAL ASSY (NEGATIVE)(12) GROMMET CABLE TERMINAL(12) GROMMET CABLE TERMINAL(13) GROMMET CABLE TERMINAL UPPER(14) CORD FFP(15) CORD COVER FFP(16) BOLT(17) WASHER(18) CLAMP 6.5-47.5P(19) GROMMET PIPE(20) BOLT(21) BOLT(22) WASHER 6-16-1.5(22) WASHER 6-16-1.5(23) RUBBER MOUNT 8.5-12-2(24) SPACER 6.2-9-15.7(25) RUBBER MOUNT



Parts List
2010 :: 70 HP :: TLDI Tohatsu MD70B :: FFP ASSEMBLY
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FFP (FUEL FEED PUMP) ASSY 3T5043100M 3T5-04310-0 $713.63 1
(2) FUEL FEED PUMP 3T5043020M 3T5-04302-0 $512.21 1
(3) FFP CASE 3T5043110M 3T5-04311-0 $73.29 1
(4) FFP CASE (UPPER) 3T5043120M 3T5-04312-0 $22.91 1
(5) HOSE JOINT ADAPTER 3T5043080M 3T5-04308-0 $5.34 1
(6) METAL WASHER 10.2-17-2 3T5043090M 3T5-04309-0 $0.81 1
(7) O-RING 3T5041160M 3T5-04116-0 $1.71 1
(8) FFP GROMMET (UPPER) 3T5043130M 3T5-04313-0 $2.59 1
(9) FFP GROMMET (LOWER) 3T5043140M 3T5-04314-0 $1.71 1
(10) CABLE TERMINAL (POSITIVE) 3T5042360M 3T5-04236-0 $13.74 1
(11) CABLE TERMINAL (NEGATIVE) 3T5042370M 3T5-04237-0 $13.74 1
(12) CABLE TERMINAL GROMMET 3T5043170M 3T5-04317-0 $1.22 2
(13) CABLE TERMINAL GROMMET (UPPER) 3T5043180M 3T5-04318-0 $1.04 1
(14) FFP CORD 3T5042380M 3T5-04238-0 $75.49 1
(15) FFP CORD COVER 3T5042390M 3T5-04239-0 $1.56 1
(16) BOLT 9101035512M 9101E3-5512 $0.00 1 Sold Out View More Details
(17) WASHER 9401030500M 940103-0500 $0.53 1
(18) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(19) PIPE GROMMET 3T5043190M 3T5-04319-0 $1.22 1
(20) BOLT 9101036518M 910103-6518 $0.00 4 Sold Out View More Details
(21) BOLT 9101036630M 910103-6630 $1.30 2
(22) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 4
(23) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.02 2
(24) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 2
(25) RUBBER MOUNT 8.5-18-7 3T5069200M 3T5-06920-0 $1.04 2
