3. AIR CHAMBER (AIR BOX)

Click Here for Microfiche Usage Tip

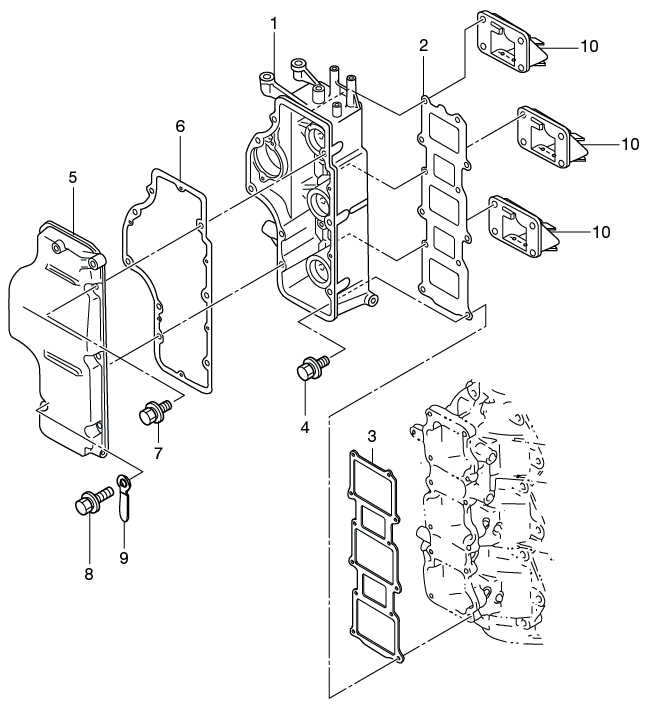

(1) AIR CHAMBER ASSY(2) AIR CHAMBER GASKET(3) INTAKE MANIFOLD GASKET(4) BOLT 6-25 PRECOATED(5) AIR CHAMBER COVER(6) AIR CHAMBER COVER GASKET(7) BOLT(8) BOLT(9) CLAMP 7-120P(10) REED VALVE ASSY(10) REED VALVE ASSY(10) REED VALVE ASSY



Parts List
2010 :: 70 HP :: TLDI Tohatsu MD70B :: AIR CHAMBER (AIR BOX)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR CHAMBER 3T9B022430 3T9B02243-0 $0.00 1 Sold Out View More Details
(2) AIR CHAMBER GASKET 3T9022420M 3T9-02242-0 $5.69 1
(3) INTAKE MANIFOLD GASKET 3T9021040M 3T9-02104-0 $11.51 1
(4) BOLT 6-25 PRE-COATED 3T5022410M 3T5-02241-0 $0.79 12
(5) AIR CHAMBER COVER 3T9B022440 3T9B02244-0 $0.00 1 Sold Out View More Details
(6) AIR CHAMBER COVER GASKET 3T9022451M 3T9-02245-0 $0.00 1 Sold Out View More Details
(7) BOLT 9101035625M 910103-5625 $1.47 6
(8) BOLT 9101035645M 910103-5645 $0.00 2 Sold Out View More Details
(9) CLAMP 6.5-120P 3Z5069721M 3Z5-06972-1 $0.00 1 Sold Out View More Details
(10) REED VALVE ASSY 3A3021000M 3A3-02100-0 $68.83 3
