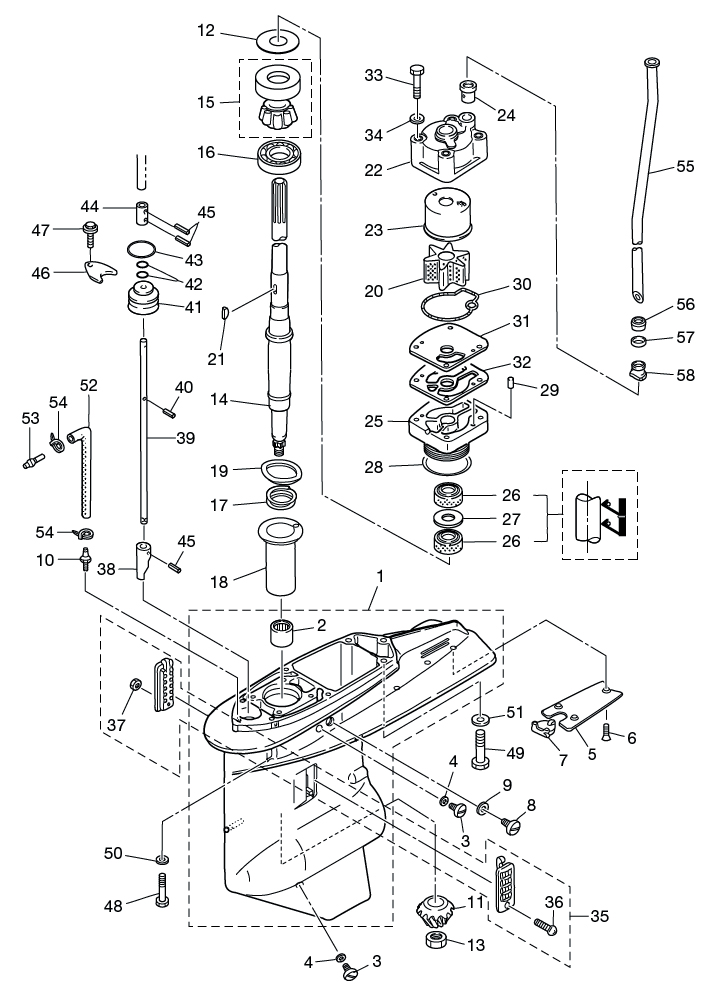

14. GEAR CASE (DRIVE SHAFT)

Click Here for Microfiche Usage Tip
(1) GEAR CASE ASSY(2) ROLLER BEARING 28.6-38.1-3(3) PLUG(3) PLUG(4) GASKET 8.1-15-1(4) GASKET 8.1-15-1(5) GEAR CASE PLATE(6) SCREW(7) GEAR CASE PLATE PLUG(8) PLUG WATER(9) GASKET 10.1-15-1(10) NIPPLE 6-1/8(11) BEVEL GEAR B(12) SHIM 52-60.5-0.3(12) SHIM 52-60.5-0.15(12) SHIM 52-60.5-0.1(13) NUT BEVEL GEAR B(14) DRIVE SHAFT (L)(14) DRIVE SHAFT (UL)(15) TAPERED ROLLER BEARING 0506(16) BALL BEARING 16007(17) DRIVE SHAFT SPRING(18) DRIVE SHAFT SPRING GUIDE(19) WAVE WASHER D=47.2(20) WATER PUMP IMPELLER(21) KEY PUMP IMPELLER(22) PUMP CASE SUB-ASSY (UPPER)(23) PUMP CASE LINER(24) WATER PIPE SEAL (LOWER)(25) PUMP CASE (LOWER)(26) OIL SEAL 22-42-7(26) OIL SEAL 22-42-7(27) SHIM 35-41.9-0.5(28) O-RING 3.1-54.4(29) DOWEL PIN 4-10(30) PUMP CASE GASKET(31) WATER PUMP GUIDE PLATE(32) GUIDE PLATE GASKET(33) BOLT(34) WASHER(35) WATER STRAINER SET(36) SCREW(37) NYLON NUT 4P0.7(38) CLUTCH CAM(39) CAM ROD (L)(39) CAM ROD (UL)(40) SPRING PIN 3.5-10(41) CAM ROD BUSHING(42) O-RING 1.9-6.8(43) O-RING 3.5-27.7(44) SHIFT ROD JOINT(45) SPRING PIN 3.5-16(45) SPRING PIN 3.5-16(46) STOPPER DRIVE SHAFT HOUSING(47) BOLT(48) BOLT(49) BOLT 10-40(50) WASHER(51) WASHER(52) HOSE(52) HOSE(53) NIPPLE 6-6(54) BAND LEAD WIRE 100(54) BAND LEAD WIRE 100(55) WATER PIPE (L)(55) WATER PIPE (UL)(56) WATER PIPE SEAL (UPPER)(57) COLLAR 18-20-4.5(58) WATER PIPE AUXILIARY MOUNT



Parts List
2010 :: 70 HP :: TLDI Nissan NSD70B :: GEAR CASE (DRIVE SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE 3C7Q600006 3C7Q60000-6 $772.97 1
(2) NEEDLE BEARING 28.6-38.1-31.8 3C7602111M 3C7-60211-1 $55.07 1
(3) WATER PLUG 332600052M 332-60005-2 $5.07 2
(4) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 2
(5) GEAR CASE PLATE 3B7600121M 3B7-60012-1 $13.90 1
(6) SCREW 9216E30614M 921613-0614 $0.69 3
(7) GEAR CASE PLATE PLUG 3B7600130M 3B7-60013-0 $2.56 1
(8) WATER PLUG 3B7600151M 3B7-60015-1 $5.29 1
(9) GASKET 10.1-15-1 3B7600161M 3B7-60016-0 $2.31 1
(10) NIPPLE 6-1/8 3C7600170M 3C7-60017-0 FOR SPEEDOMETER OPT $3.27 1
(11) BEVEL GEAR B 3J5640200M 3J5-64020-0 70PS $154.19 1
(12) SHIM 52-60.5-0.3 353640140M 353-64014-0 $1.14 0
(12) SHIM 52-60.5-0.15 353640150M 353-64015-0 $1.23 0
(12) SHIM 52-60.5-0.1 353640160M 353-64016-0 $1.49 0
(13) BEVEL GEAR B NUT 3B7640270M 3B7-64027-0 $10.41 1
(14) DRIVE SHAFT (L) 3C7643023M 3C7-64302-2 FOR TRANSOM L $543.87 1
(14) DRIVE SHAFT (UL) 3C7643033M 3C7-64303-2 FOR TRANSOM UL $562.96 1
(15) BEARING 0506 3C7602130M 3C7-60213-0 $44.07 1
(16) BEARING 16007 3C7602140M 3C7-60214-0 $26.40 1
(17) DRIVE SHAFT SPRING 3C7643270M 3C7-64327-0 $5.29 1 Sold Out View More Details
(18) DRIVE SHAFT SPRING GUIDE 3C7643280M 3C7-64328-0 $8.05 1
(19) WAVE WASHER D=47.2 3C7602100M 3C7-60210-0 $4.38 1
(20) WATER PUMP IMPELLER 3C7650211M 3C7-65021-1 $24.25 1
(21) WATER PUMP IMPELLER KEY 3B7650220M 3B7-65022-0 $10.98 1
(22) PUMP CASE (UPPER) 3C7650160M 3C7-65016-0 $48.67 1
(23) PUMP CASE LINER 3C7650110M 3C7-65011-0 $19.84 1
(24) WATER PIPE SEAL (LOWER) 3C7650140M 3C7-65014-0 $2.31 1
(25) PUMP CASE (LOWER) 3C7650172M 3C7-65017-2 $96.69 1
(26) OIL SEAL 22-42-7 3C7602231M 3C7-60223-1 $4.95 2
(27) SHIM 35 – 41.9 – 0.5 346640840M 346-64084-0 $2.18 1
(28) O-RING 3.1-54.4 3B7650150M 3B7-65015-0 $3.91 1
(29) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(30) PUMP CASE SEAL 3C7650180M 3C7-65018-0 $3.39 1
(31) WATER PUMP GUIDE PLATE 3C7650250M 3C7-65025-0 $13.51 1
(32) GUIDE PLATE GASKET 3C7650290M 3C7-65029-0 $2.56 1
(33) BOLT 9161E30885M 916113-0885 $3.50 4
(34) WASHER 9401030800M 940113-0800 $0.84 5
(35) WATER STRAINER SET 3C7602051M 3A1-60235-0 $13.35 1
(36) SCREW 9215030445M 921503-0445 $1.13 1
(37) NYLON NUT 4P-0.7 9304030400M 930406-0400 $1.68 1
(38) CLUTCH CAM 3B7660111M 3B7-66011-1 $52.86 1
(39) CAM ROD L 3B7660131M 3B7-66013-1 FOR TRANSOM L $20.02 1
(39) CAM ROD UL 3B7660141M 3B7-66014-1 FOR TRANSOM UL $21.90 1
(40) SPRING PIN 3.5-10 9514033510M 951403-3510 $0.49 1
(41) CAM ROD BUSHING 3B7660311M 3B7-66031-1 $23.01 1
(42) O-RING 1.9-6.8 345660210M 345-66021-0 $1.41 2
(43) O-RING 3.5-27.7 3B7660230M 3B7-66023-0 $2.76 1
(44) SHIFT ROD JOINT 353662411M 353-66241-1 $8.20 1
(45) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 2
(46) STOPPER 353660240M 353-66024-0 $4.40 1
(47) BOLT 9101036612M 910103-6612 $1.16 1
(48) BOLT 3T1600010M 3T1-60001-0 $5.35 4
(49) BOLT 10-40 3B7600014M 3B7-60001-4 $8.33 3
(50) WASHER 9401E30800M 9401E3-0800 $0.65 4
(51) WASHER 9402E31000M 940213-1000 $1.04 3
(52) SPEEDOMETER PIPE L 98AL40800M 98AL-4-0800 FOR TRANSOM L / 98AL-401000 $8.81 1
(52) SPEEDOMETER PIPE UL 98AL40920M 98AL-4-0920 FOR TRANSOM UL / 98AL-401000 $8.81 1
(53) NIPPLE 6-6 3C7600180M 3C7-60018-0 OPT $3.00 1
(54) LEAD WIRE BAND 100 353843980M 353-84398-0 OPT $0.84 2
(55) WATER PIPE L 3C7651100M 3C7-65110-0 FOR TRANSOM L OPT $22.54 1
(55) WATER PIPE UL 3C7651200M 3C7-65120-0 FOR TRANSOM UL OPT $25.33 1
(56) WATER PIPE SEAL (UPPER) 3C7652060M 3C7-65206-0 $2.56 1
(57) COLLAR 18-20-4.5 345652050M 345-65205-0 $2.22 1
(58) WATER PIPE AUXILIARY MOUNT 3C7652040M 3C7-65204-0 WATER PIPE LOCKING RUBBER $2.56 1
