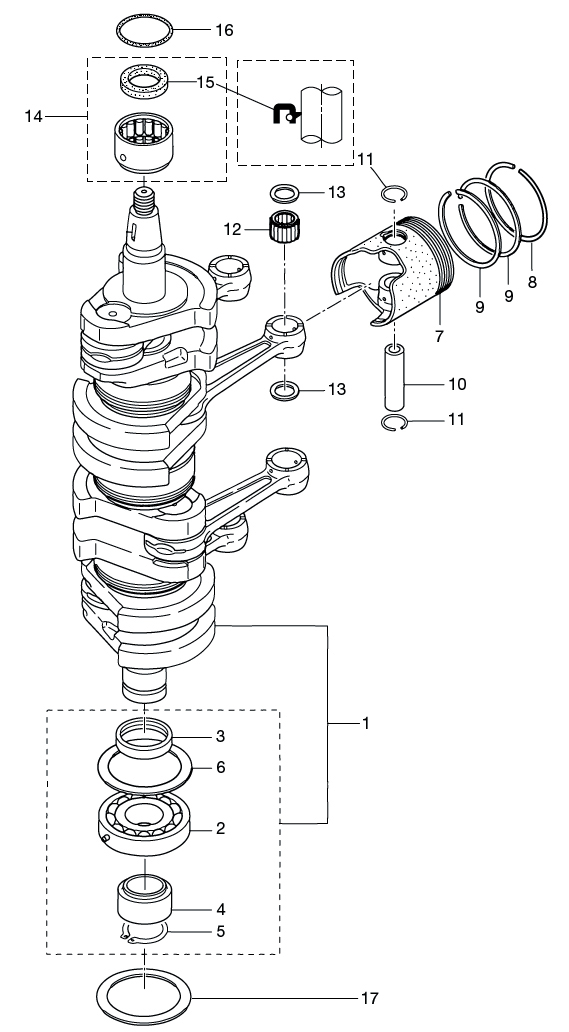

2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip
(1) CRANKSHAFT ASSY(2) BALL BEARING 6208(3) SPACER 40-52-7(4) SPACER 35-48.6-16(5) C-RING D=35(6) THRUST PLATE 66-85-2(7) PISTON (STD)(7) PISTON (0.5 O/S)(8) PISTON RING (STD) 1ST(8) PISTON RING (0.5O/S) 1ST(9) PISTON RING (STD) 2ND(9) PISTON RING (STD) 2ND(9) PISTON RING (0.5O/S) 2ND(9) PISTON RING (0.5O/S) 2ND(10) PISTON PIN(11) PISTON PIN CLIP(11) PISTON PIN CLIP(12) ROLLER BEARING 20-25-28(13) SMALL END BEARING WASHER(13) SMALL END BEARING WASHER(14) MAIN BEARING UPPER(15) OIL SEAL 36-46-6(16) O-RING 2.4-44.7(17) THRUST PLATE 66-85-2



Parts List
2010 :: 70 HP :: TLDI Nissan NSD70B :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT ASSY 3T7000300M 3T7-00030-0 $1,609.83 1 Sold Out View More Details
(2) BEARING 6208 960336208M 960336208M $27.54 1
(3) SPACER 40-52-7 3B7001160M 3B7-00116-0 $16.82 1
(4) SPACER 35-48.6-16 3T7001190M 3T7-00119-0 $0.00 1 Sold Out View More Details
(5) C-RING D=35 9451073500M 945107-3500 $0.99 1
(6) WASHER 66-85-2 3B7001150M 3B7-00115-0 $0.00 1 Sold Out View More Details
(7) PISTON (STD) 3Y9000010M 3Y9-00001-0 STD $211.29 3
(7) PISTON (0.5MM O/S) 3Y9000040M 3Y9-00004-0 OPT 0.5O/S $267.40 1
(8) PISTON RING 1ST ( STD 3B7000110M 3B7-00011-0 STD 1ST $16.73 3
(8) PISTON RING 1ST (0.5MM O/S) 3B7000140M 3B7-00014-0 OPT 1ST $20.43 3
(9) PISTON RING 2ND ( STD) 3B7000120M 3B7-00012-0 STD 2ND $12.48 6
(9) PISTON RING 2ND (0.5MM O/S) 3B7000150M 3B7-00015-0 OPT 2ND $12.74 6
(9) PISTON RING 2ND ( STD) 3B7000120M 3B7-00012-0 STD 2ND $12.48 6
(9) PISTON RING 2ND (0.5MM O/S) 3B7000150M 3B7-00015-0 OPT 2ND $12.74 6
(10) PISTON PIN 360000210M 360-00021-0 $13.51 3
(11) PISTON PIN CLIP 353000241M 353-00024-1 $0.70 6
(12) NEEDLE BEARING 20-25-28 3C7000420M 3C7-00042-0 $30.77 3
(13) SMALL END BEARING WASHER 353000460M 353-00046-0 $8.52 6
(14) MAIN BEARING UPPER 3T5001130M 3T5-00113-0 $88.51 1
(15) OIL SEAL 36-46-6 3T5001210M 3T5-00121-0 $39.57 1
(16) O-RING 2.4-44.7 353001080M 353-00108-0 $3.00 1
(17) WASHER 66-85-2 3B7001150M 3B7-00115-0 $0.00 1 Sold Out View More Details
