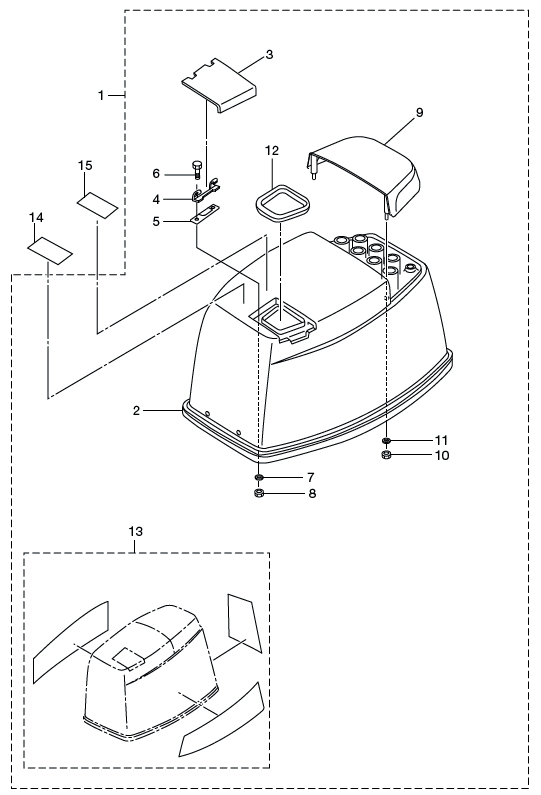

26. TOP COWL (MOTOR COVER UPPER)

Click Here for Microfiche Usage Tip
(1) TOP COWL ASSY (SERVICE)(1) TOP COWL ASSY - NISSAN(2) TOP COWL SEAL(3) FILLER LID(4) FILLER LID HINGE(5) SPRING SPRING(6) BOLT(7) SPRING WASHER(8) NUT(9) TILT HANDLE(10) NYLON NUT 6P1.0(11) WASHER 6-16-1.5(12) SEAL RUBBER FILLER LID(13) DECAL SET (MD50B2)(13) DECAL SET (NSD50B2)(14) CAUTION DECAL (A)(15) OIL CAUTION DECAL



Parts List
2010 :: 50 HP :: TLDI Tohatsu MD50B2 :: TOP COWL (MOTOR COVER UPPER)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TOP COWL ASSY (SERVICE) 3GFQ676450 3GFQ67645-0 TOHATSU $783.73 1
(1) TOP COWL 3Z7Q676450 3Z7Q676450 NISSAN $783.73 1
(2) TOP COWL SEAL 3C8675010M 3C8-67501-0 $35.48 1
(3) FILLER LID 3E3Q672101 3E3Q67210-0 $29.88 1
(4) FILLER LID HINGE 3B7672110M 3B7-67211-0 $3.05 1
(5) FILLER LID SPRING 3C8672121M 3C8-67212-0 $9.53 1
(6) BOLT 9101030614M 910103-0614 $0.76 2
(7) SPRING WASHER 9413030600M 941303-0600 $0.84 2
(8) NUT 9301030600M 930113-0600 FOR FILLER LID $0.84 2
(9) TILT HANDLE 3E3Q675211 3E3Q67521-1 $56.08 1
(10) NYLON NUT 6-P 1.0 9304030600M 930403-0600 FOR TILT HANDLE $2.25 4
(11) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 4
(12) FILLER LID SEAL 3E3672130M 3E3-67213-0 $2.99 1
(13) DECAL SET (MD50B2) 3GF878020M 3GF-87802-0 TOHATSU-50PS $67.31 1
(13) DECAL SET 3Z7N878020 3Z7N87802-0 NISSAN-50PS $0.00 1 Sold Out View More Details
(14) CAUTION DECAL (A) 3C7721803M 3C7-72180-3 $2.10 1
(15) OIL CAUTION DECAL 3T1720430M 3T1-72043-0 $1.43 1
