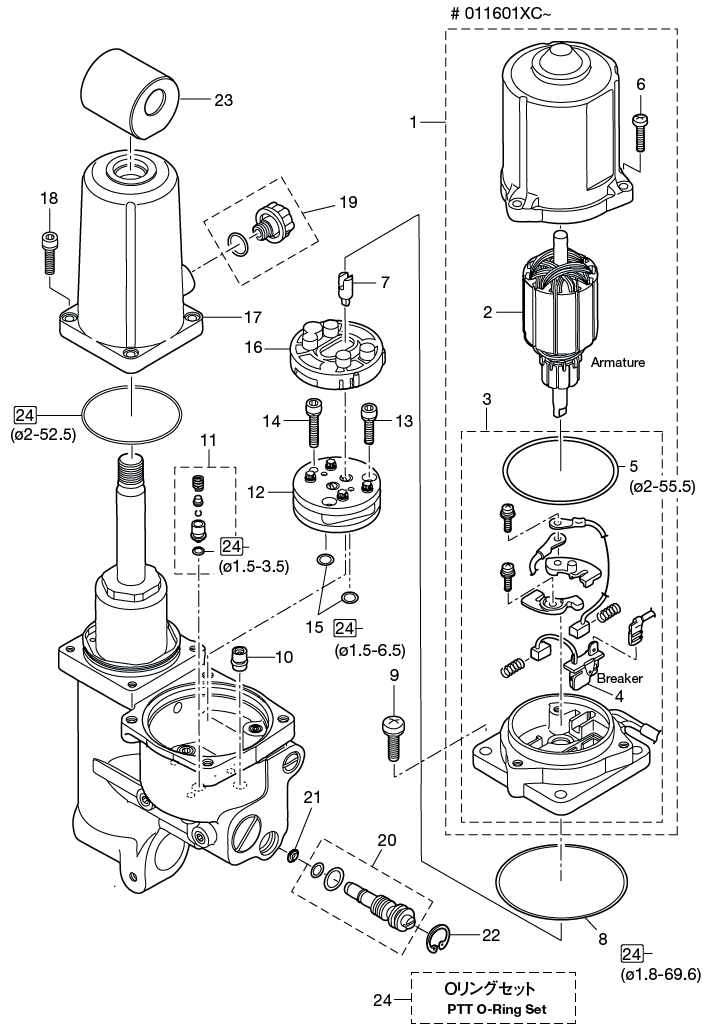

21. POWER TRIM & TILT

Click Here for Microfiche Usage Tip
(1) MOTOR ASSY(2) ARMATURE ASSY(3) MOTOR BRACKET ASSY(4) BREAKER(5) O-RING 2-55.5(6) SCREW(7) COUPLING PUMP(8) O-RING(9) SCREW(10) VALVE ASSY(11) RELIEF VALVE ASSY(12) PUMP(13) BOLT(14) BOLT(15) O-RING(16) FILTER(17) RESERVE TANK(18) BOLT(19) CAP ASSY (W/O-RING)(20) MANUAL VALVE ASSY (W/O-RING?2)(21) SEAL WASHER(22) C-RING(23) JOINT METAL(24) PTT O-RING SET(24) PTT O-RING SET(24) PTT O-RING SET(24) PTT O-RING SET(24) PTT O-RING SET



Parts List
2010 :: 50 HP :: TLDI Tohatsu MD50B2 :: POWER TRIM & TILT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) MOTOR 3Z5771800M 3Z5-77180-0 L=1050 $548.44 1 Sold Out View More Details
(2) ARMATURE ASSY 3Z5771900M 3Z5-77190-0 $0.00 1 Sold Out View More Details
(3) MOTOR BRACKET ASSY 3Z5771920M 3Z5-77192-0 $317.17 1
(4) BREAKER 3Z5771910M 3Z5-77191-0 $63.09 1
(5) O-RING 2-55.5 3Z5771820M 3Z5-77182-0 $9.71 1 Sold Out View More Details
(6) SCREW 9215030520M 921503-0520 $0.46 3
(7) COUPLING 3Z5771660M 3Z5-77166-0 $11.78 1
(8) O-RING 1.8-69.6 3B7771670M 3B7-77167-0 $6.35 1 Sold Out View More Details
(9) SCREW 3Z5771940M 3Z5-77194-0 $4.81 4
(10) VALVE ASSY 3Z5774600M 3Z5-77460-0 $32.81 1
(11) RELIEF VALVE ASSY 3Z5774500M 3Z5-77450-0 $35.66 1
(12) PUMP 3B7774300M 3B7-77430-0 $0.00 1 Sold Out View More Details
(13) BOLT 3B7774321M 3B7-77432-1 $3.27 2
(14) BOLT 3B7774311M 3B7-77431-1 $3.36 1
(15) O-RING 1.5 - 6.5 3B7774330M 3B7-77433-0 $3.34 2
(16) FILTER 3B7774341M 3B7-77434-1 $43.47 1
(17) RESERVOIR TANK 3Z5771650M 3Z5-77165-0 $107.12 1 Sold Out View More Details
(18) BOLT 3Z5771590M 3Z5-77159-0 $6.81 4
(19) CAP ASSY 3Z5772210M 3Z5-77221-0 $12.54 1
(20) MANUAL VALVE ASSY 3Z5771750M 3Z5-77175-0 $107.12 1
(21) SEAL WASHER 3R0771730M 3R0-77173-0 $6.76 1
(22) C-RING 3Z5771710M 3Z5-77171-0 $3.52 1
(23) JOINT METAL 3Z5773670M 3Z5-77367-0 $92.55 1
(24) O-RING SET 3Z5772250M 3Z5-77225-0 $16.63 1 Sold Out View More Details
