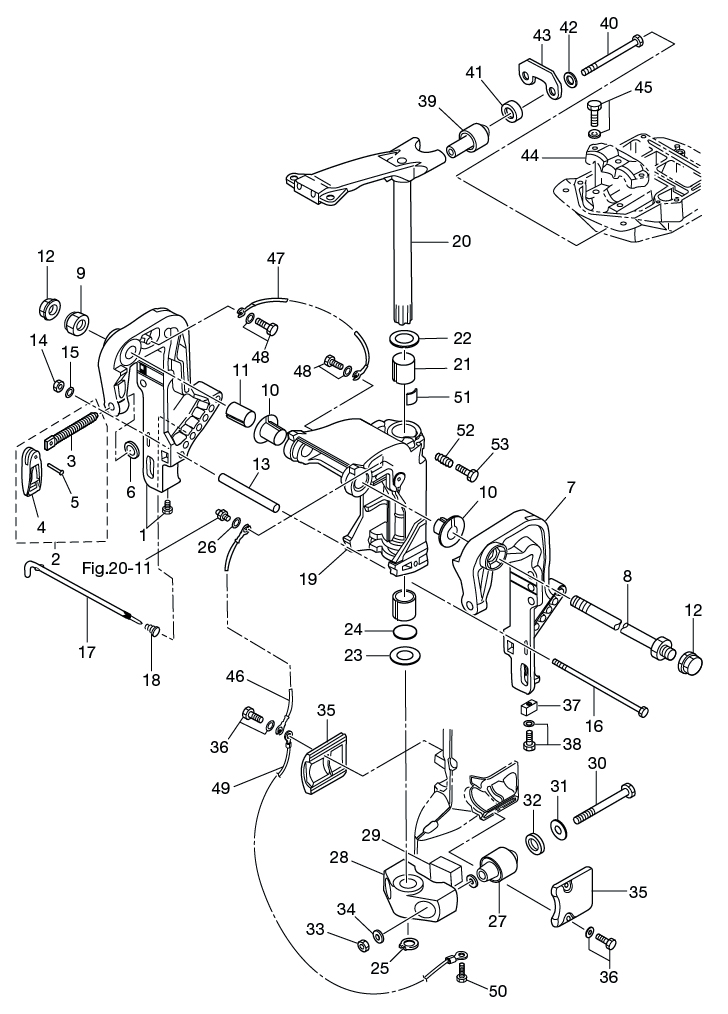

18. BRACKET (1) MANUAL TILT

Click Here for Microfiche Usage Tip
(1) CLAMP BRACKET (R)(2) CLAMP SCREW ASSY(2) CLAMP SCREW ASSY(3) CLAMP SCREW(3) CLAMP SCREW(4) CLAMP SCREW HANDLE(4) CLAMP SCREW HANDLE(5) RIVET 3-22(5) RIVET 3-22(6) CLAMP SCREW PAD(6) CLAMP SCREW PAD(7) CLAMP BRACKET (L)(8) SWIVEL BRACKET SHAFT ASSY(9) NYLON NUT 7/8(10) BUSHING 26-32(10) BUSHING 26-32(11) BUSHING 22-25-35.5(12) CAP NUT BRACKET BOLT(12) CAP NUT BRACKET BOLT(13) DISTANCE PIECE(14) NUT(15) WASHER(16) BOLT 8-170(17) THRUST ROD(18) THRUST ROD SPRING(19) SWIVEL BRACKET(20) STEERING SHAFT ASSY(21) BUSHING 26-32(22) THRUST PLATE (UPPER)(23) THRUST PLATE (LOWER)(24) O-RING 3.5-25.7(25) C-RING D=25(26) WASHER(27) RUBBER MOUNT (LOWER)(28) MOUNT BRACKET(29) DAMPER (LOWER)(30) BOLT LOWER MOUNT RUBBER(31) WASHER 13-34-3(32) DAMPER RUBBER(33) NYLON NUT 12P1.75(34) WASHER(35) MOUNT HOLDING PLATE (LOWER)(35) MOUNT HOLDING PLATE (LOWER)(36) BOLT(36) BOLT(37) ANODE(38) BOLT(39) RUBBER MOUNT (UPPER)(40) BOLT(41) DAMPER (UPPER)(42) WASHER(43) LOCK PLATE UPPER(44) MOUNT HOLDING PLATE (UPPER)(45) BOLT(46) GROUND (EARTH WIRE) L=210(47) GROUND (EARTH WIRE) L=130(48) BOLT(48) BOLT(49) GROUND (EARTH WIRE) L=110(50) BOLT(51) FRICTION PIECE(52) FRICTION SPRING(53) BOLT



Parts List
2010 :: 50 HP :: TLDI Tohatsu MD50B2 :: BRACKET (1) MANUAL TILT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (RIGHT) 3C8Q621120 3C8Q62112-0 STERN BRACKET (RIGHT) STARBOARD $123.66 1
(2) CLAMP SCREW ASSY 3C8Q621001 3C8Q62100-2 R $56.36 1
(2) CLAMP SCREW ASSY 3C8Q621001 3C8Q62100-2 L $56.36 1
(3) CLAMP SCREW 3E3621030M 3E3-62103-0 R $56.36 1
(3) CLAMP SCREW 3E3621030M 3E3-62103-0 L $56.36 1
(4) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 R $7.57 1
(4) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 L $7.57 1
(5) RIVET 3-22 3C8621042M 3C8-62104-2 R $0.92 1
(5) RIVET 3-22 3C8621042M 3C8-62104-2 L $0.92 1
(6) CLAMP SCREW PAD 332621010M 332-62101-0 R $3.36 1
(6) CLAMP SCREW PAD 332621010M 332-62101-0 L $3.36 1
(7) CLAMP BRACKET (LEFT) 3C8Q621130 3C8Q62113-0 STERN BRACKET (LEFT) PORT $109.19 1
(8) SWIVEL BRACKET SHAFT 3AC621910M 346-62191-0 BRACKET BOLT $41.18 1
(9) NYLON NUT 7/8 346621241M 346-62124-0 $21.14 1
(10) BUSHING BRACKET BOLT 349621260M 349-62126-0 $4.83 2
(11) BUSHING 22-25-35.5 3C8621320M 3C8-62132-0 $4.83 1
(12) CAP BRACKET BOLT 346621270M 346-62127-0 FOR F TYPE $2.31 2
(13) DISTANCE PIECE 3C8621171M 3C8-62117-1 $13.43 1
(14) NUT 9301030800M 930103-0800 $1.99 1
(15) WASHER 9401E30800M 9401E3-0800 $0.65 1
(16) BOLT 8-170 3C8621201M 3C8621200M $9.09 1
(17) THRUST ROD 3C8621211M 3C8-62121-1 $19.27 1 Sold Out View More Details
(18) SPRING THRUST ROD 345621222M 345-62122-2 $2.19 1 Sold Out View More Details
(19) SWIVEL BRACKET 3C8Q623103 3C8Q62310-3 $232.67 1
(20) STEERING SHAFT 3C8Q620102 3C8Q62010-2 $0.00 1 Sold Out View More Details
(21) BUSHING 26-32-30 345624170M 345-62417-0 $7.08 2
(22) THRUST PLATE (UPPER) 3A0624232M 3A0-62423-2 $2.82 1
(23) THRUST PLATE (LOWER) 346624241M 346-62424-1 $3.02 1
(24) O-RING 3.5 - 25.7 345624150M 345-62415-0 $1.10 1 Sold Out View More Details
(25) C-RING D=25 9451032500M 945103-2500 $1.75 1
(26) WASHER 9401030600M 940103-0600 $0.70 1
(27) LOWER MOUNT RUBBER 3C8613020M 3C8-61302-0 $46.05 2
(28) MOUNT BRACKET 3C8Q614112 3C8Q61411-2 $83.35 1
(29) DAMPER RUBBER 3C8613360M 3C8-61336-0 $5.69 1
(30) RUBBER MOUNT BOLT (LOWER) 3C8613211M 3C8-61321-1 $9.66 2
(31) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(32) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(33) NYLON NUT 12-P1.75 9304031200M 930403-1200 $6.47 2
(34) WASHER 9402E31200M 940203-1200 $2.10 4
(35) MOUNT HOLDING PLATE (LOWER) 3C8Q613420 3C8Q61342-0 RUBBER MOUNT CAP (LOWER) $16.27 2
(36) BOLT 9101E35620M 910113-5620 $1.30 4
(37) ANODE 3B7602181M 3B7-60218-1 $13.25 1
(38) BOLT 9101035635M 910103-5635 $1.96 1 Sold Out View More Details
(39) RUBBER MOUNT (UPPER) 3E3613011M 3E3-61301-1 $32.23 2
(40) BOLT 353613071M 353-61307-1 $10.35 2
(41) DAMPER (UPPER) 3E3613330M 3E3-61333-0 $8.97 2
(42) WASHER 10-29-3 353613350M 353-61335-0 $2.31 2
(43) LOCK PLATE (UPPER) 3E3613350M 3E3-61335-0 $5.29 1
(44) MOUNT HOLDING PLATE (UPPER) 3C8613410M 3C8-61341-0 RUBBER MOUNT CAP (UPPER) $0.00 1 Sold Out View More Details
(45) BOLT 9101E35835M 910113-5835 $3.28 3
(46) GROUND CABLE 3C8623961M 3C8-62396-0 $4.56 1
(47) GROUND CABLE 398623961M 398-62396-1 $5.75 1 Sold Out View More Details
(48) BOLT 9101E35612M 910103-5612 $1.07 2
(49) GROUNG CABLE 3A3623961M 3A3-62396-0 $17.85 1
(50) BOLT 9101E35612M 910103-5612 $1.07 1
(51) FRICTION PLATE 345624410M 345-62441-0 $5.55 1
(52) FRICTION SPRING 346624211M 346-62421-1 $3.20 1
(53) BOLT 9101E30830M 9101E3-0830 $1.67 1
