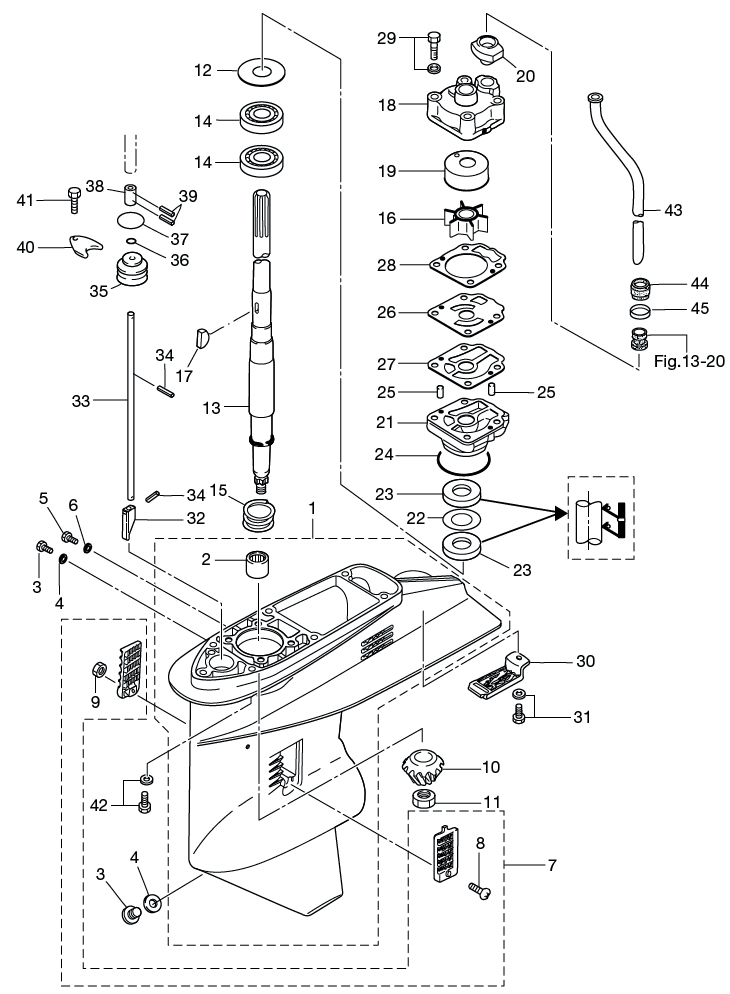

14. GEAR CASE (DRIVE SHAFT)

Click Here for Microfiche Usage Tip
(1) GEAR CASE ASSY(1) GEAR CASE ASSY (W/SUBWATER PIPE)(2) ROLLER BEARING 22-30-30(3) PLUG(3) PLUG(4) GASKET 8.1-15-1(4) GASKET 8.1-15-1(5) PLUG WATER(6) GASKET 10.1-15-1(7) WATER STRAINER SET(8) SCREW(9) NYLON NUT 4P0.7(10) BEVEL GEAR B(11) NUT BEVEL GEAR B(12) SHIM 41-51.5-0.1(12) SHIM 41-51.5-0.15(12) SHIM 41-51.5-0.3(12) SHIM 41-51.5-0.5(13) DRIVE SHAFT (S)(13) DRIVE SHAFT (L)(13) DRIVE SHAFT (UL)(14) TAPERED ROLLER BEARING 6304(14) TAPERED ROLLER BEARING 6304(15) DRIVE SHAFT SPRING(16) WATER PUMP IMPELLER(17) KEY PUMP IMPELLER(18) PUMP CASE (UPPER)(19) PUMP CASE LINER(20) WATER PIPE SEAL (LOWER)(21) PUMP CASE (LOWER)(22) SHIM 32.9-26-0.5(23) OIL SEAL 17-33-6(23) OIL SEAL 17-33-6(24) O-RING 3.2-47(25) DOWEL PIN 4-10(25) DOWEL PIN 4-10(26) WATER PUMP GUIDE PLATE(27) GUIDE PLATE GASKET(28) PUMP CASE GASKET(29) BOLT(30) SUB-WATER INLET STRAINER(31) BOLT 5-16(32) CLUTCH CAM(33) CAM ROD (S)(33) CAM ROD (L)(33) CAM ROD (UL)(34) SPRING PIN 3-12(34) SPRING PIN 3-12(35) CAM ROD BUSHING(36) O-RING 2.4-5.8(37) O-RING 3.5-21.7(38) SHIFT ROD JOINT(39) SPRING PIN 3-12(40) STOPPER DRIVE SHAFT HOUSING(41) BOLT(42) BOLT(43) WATER PIPE (S)(43) WATER PIPE (L)(43) WATER PIPE (UL)(44) WATER PIPE SEAL (UPPER)(45) COLLAR 18-20-4.5



Parts List
2010 :: 50 HP :: TLDI Tohatsu MD50B2 :: GEAR CASE (DRIVE SHAFT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) GEAR CASE 3C8Q600000 3C8Q60000-0 STD $353.61 1
(1) GEAR CASE WITH SUB WATER PIPE 3C8Q600900 3C8Q60090-0 FOR UL WITH SUBWATER / PIPE $432.84 1
(2) NEEDLE BEARING 22-30-30 345602110M 345-60211-0 $33.06 1 Sold Out View More Details
(3) WATER PLUG 332600052M 332-60005-2 $5.07 2
(4) GASKET 8.1-15-1 332600060M 332-60006-0 $0.86 2
(5) WATER PLUG 3B7600151M 3B7-60015-1 $5.29 1
(6) GASKET 10.1-15-1 3B7600161M 3B7-60016-0 $2.31 1
(7) WATER STRAINER SET 3C8602051M 3C8-60235-1 $7.50 1
(8) SCREW 9215030438M 921503-0438 $0.72 1
(9) NYLON NUT 4P-0.7 9304030400M 930406-0400 $1.68 1
(10) BEVEL GEAR B 3C8640202M 3C8-64020-2 $55.07 1
(11) BEVEL GEAR B NUT 3C8640270M 3C8-64027-0 $8.80 1
(12) SHIM 41-51.5-0.1 345640810M 345-64081-0 $1.84 0
(12) SHIM 41-51.5-0.15 345640820M 345-64082-0 $0.00 0 Sold Out View More Details
(12) SHIM 41-51.5-0.3 345640830M 345-64083-0 $1.84 0
(12) SHIM 41-51.5-0.5 345640840M 345-64084-0 $1.84 0
(13) DRIVE SHAFT S 3C8643010M 3C8-64301-0 FOR TRANSOM S $294.49 1
(13) DRIVE SHAFT L 3C8643020M 3C8-64302-0 FOR TRANSOM L $301.47 1
(13) DRIVE SHAFT UL 3C8643030M 3C8-64303-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(14) BEARING 6304 3C8602130M 3C8-60213-0 $14.95 2
(15) DRIVE SHAFT SPRING 3C8643270M 3C8-64327-0 $2.62 1
(16) WATER PUMP IMPELLER 3C8650212M 3C8-65021-2 $12.88 1
(17) KEY PUMP IMPELLER 332650220M 332-65022-0 $6.47 1
(18) PUMP CASE (UPPER) 3T5650160M 3C8-65016-1 $30.53 1
(19) PUMP CASE LINER 3T5650110M 3T5-65011-0 $8.66 1
(20) WATER PIPE SEAL (LOWER) 3C8650140M 3C8-65014-0 $2.76 1
(21) PUMP CASE (LOWER) 3C8650171M 3C8-65017-1 $44.07 1
(22) SHIM 32.9-26-0.5 3C8640840M 3C8-64084-0 $2.12 1
(23) OIL SEAL 17-33-6 3C8602230M 3C8-60223-0 $7.34 2
(24) O-RING 3.2-47 345650150M 345-65015-0 $1.50 1
(25) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
(26) WATER PUMP GUIDE PLATE 3C8650250M 3C8-65025-0 $3.18 1
(27) GUIDE PLATE GASKET 3C8650292M 3C8-65029-0 $5.87 1
(28) PUMP CASE GASKET 3T5650182M 3T5650180M $3.51 1
(29) BOLT 9101E35855M 9101E3-5855 $3.18 4
(30) SUB WATER STRAINER 3C8602040M 3C8-60204-0 $7.08 1
(31) BOLT 9101035616M 910103-5616 $1.15 1
(32) CLUTCH CAM 3C8660110M 3C8-66011-0 $32.23 1
(33) CAM ROD S 3C8660120M 3C8-66012-0 FOR TRANSOM S $19.33 1
(33) CAM ROD L 3C8660130M 3C8-66013-0 FOR TRANSOM L $29.26 1
(33) CAM ROD UL 3C8660140M 3C8-66014-0 FOR TRANSOM UL $22.78 1
(34) SPRING PN 3-12 9514070312M 951407-0312 $0.86 2
(35) CAM ROD BUSHING 3C8660311M 3C8-66031-1 $21.14 1
(36) O-RING 2.4 - 5.8 332660210M 332-66021-0 $1.41 1
(37) O-RING 3.5 - 21.7 3C8660320M 3C8-66032-0 $2.07 1
(38) SHIFT ROD JOINT 3C8662410M 3C8-66241-0 $5.55 1
(39) SPRING PIN 3-12 9514030312M 951403-0312 $0.83 1
(40) STOPPER 353660240M 353-66024-0 $4.40 1
(41) BOLT 9101036612M 910103-6612 $1.16 1
(42) BOLT 9101E35835M 910113-5835 $3.28 6
(43) WATER PIPE S 3C8651000M 3C8-65100-0 FOR TRANSOM S $17.77 1
(43) WATER PIPE L 3C8651100M 3C8-65110-0 FOR TRANSOM L $20.96 1
(43) WATER PIPE UL 3C8651200M 3C8-65120-0 FOR TRANSOM UL $23.01 1
(44) WATER PIPE SEAL (UPPER) 345652060M 345-65206-0 $2.10 1
(45) COLLAR 18-20-4.5 345652050M 345-65205-0 $2.22 1
