10. ELECTRIC PARTS (ECU & DIAGRAM)

Click Here for Microfiche Usage Tip
(1) ECU ASSY(2) BOLT(2) BOLT(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(3) WASHER 6.5-21-1(4) MOUNT MOTOR COVER LOWER(4) MOUNT MOTOR COVER LOWER(5) RUBBER MOUNT 8.5-14-2.5(5) RUBBER MOUNT 8.5-14-2.5(6) SPACER 6.2-9-16.6(6) SPACER 6.2-9-16.6(7) CLAMP 6.5-47.5P(8) IGNITION COIL (W/RESISTANCE- CAP) #1(9) PLUG CAP (W/RESISTANCE)(10) BAND LEAD WIRE 158(11) IGNITION COIL (W/RESISTANCE-CAP)(11) IGNITION COIL (W/RESISTANCE-CAP)(12) PLUG CAP (W/RESISTANCE)(13) BAND LEAD WIRE 158(13) BAND LEAD WIRE 158(14) BOLT(14) BOLT(14) BOLT(15) CLAMP 6.5-47.5P(16) CLAMP 6.5-87P(16) CLAMP 6.5-87P(16) CLAMP 6.5-87P(17) BOLT(18) RECTIFIER COMPLETE(19) BOLT(20) CORD ASSY(21) CABLE TERMINAL PLUG(21) CABLE TERMINAL PLUG(21) CABLE TERMINAL PLUG(21) CABLE TERMINAL PLUG(21) CABLE TERMINAL PLUG(21) CABLE TERMINAL PLUG(22) CABLE TERMINAL PLUG(22) CABLE TERMINAL PLUG(22) CABLE TERMINAL PLUG(23) SOLENOID SWITCH BRACKET ASSY(24) FUSE HOLDER BRACKET(25) TAPPING SCREW 6-16(26) CLAMP 6.5-87P(26) CLAMP 6.5-87P(26) CLAMP 6.5-87P(27) STARTER SOLENOID(28) BOLT(29) STARTER CABLE L=270(30) TERMINAL CAP STARTER(30) TERMINAL CAP STARTER(31) FUSE WIRE ASSY(32) FUSE WIRE ASSY(33) FUSE 30A(34) FUSE 25A(35) FUSE 15A(36) PTT SOLENOID SWITCH (A)(37) PTT SOLENOID SWITCH (B)(38) GROUND CABLE(39) BOLT(40) WASHER 6-16-1.5(41) RUBBER MOUNT 8.5-12-2(42) COLLAR 6.2-9-10.7(43) TERMINAL CAP STARTER(43) TERMINAL CAP STARTER(44) WATER TEMPERATURE SENSOR (W/O-RING)(44) WATER TEMPERATURE SENSOR (W/O-RING)(45) O-RING 2.0-10.0(45) O-RING 2.0-10.0



Parts List

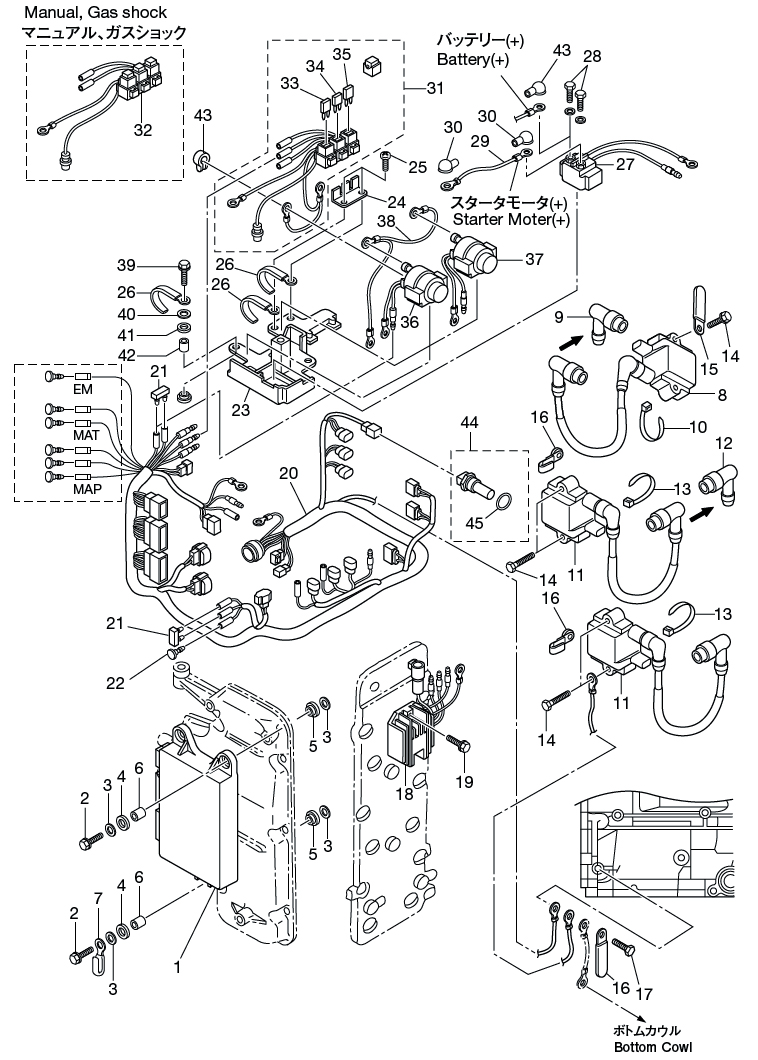

2010 :: 50 HP :: TLDI Tohatsu MD50B2 :: ELECTRIC PARTS (ECU & DIAGRAM)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ECU ASSY 3GF064010M 3GF-06401-0 50PS (40PS-ITALY USE ONLY) / LABEL 3GF09AA $1,777.08 1
(2) BOLT 9101036630M 910103-6630 $1.30 3
(3) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 6
(4) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 3
(5) RUBBER MOUNT 8.5-14-2.5 3B7069200M 3B7-06920-0 $1.59 3
(6) SPACER 6.2-9-16.6 3T5671140M 3T5-67114-0 $1.22 3
(7) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(8) IGNITION COIL #1 3Z5064690M 3Z5-06469-0 #1 $84.69 1
(9) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 #1 $25.93 1
(10) LEAD WIRE BAND 150 369843980M 369-84398-0 #1 $1.67 1
(11) IGNITION COIL #2 & # 3 3Z5064700M 3Z5-06470-0 #2 #3 $84.69 2
(12) PLUG CAP (WITH RESISTANCE) 3H6069990M 3H6-06999-0 #2 #3 $25.93 1
(13) LEAD WIRE BAND 150 369843980M 369-84398-0 #2 #3 $1.67 1
(14) BOLT 9101037635M 910103-7635 $2.35 6
(15) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(16) CLAMP 6.5-87P 3T4069721M 3T4-06972-1 $1.53 3
(17) BOLT 9101036614M 910103-6614 $1.09 1
(18) RECTIFIER COMPLETE 3Z5760601M 3Z5-76060-1 $114.50 1
(19) BOLT 9101035620M 910103-5620 $1.30 2
(20) CORD ASSY 3GF761100M 3GF-76110-0 $520.08 1 Sold Out View More Details
(21) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR EFT $1.50 1
(21) CABLE TERMINAL PLUG 353760370M 353-76037-0 FOR EFG $2.53 2
(21) CABLE TERMINAL PLUG 353760370M 353-76037-0 FOR EP $2.53 2
(22) CABLE TERMINAL PLUG 353760370M 353-76037-0 FOR EFT $2.53 1
(22) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR EFG $1.50 1
(22) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 FOR EP $1.50 1
(23) SOLENOID SWITCH BRACKET 3T5725850M 3T5-72585-0 $0.00 1 Sold Out View More Details
(24) FUSE HOLDER BRACKET 3T9760640M 3T9-76064-0 $0.00 1 Sold Out View More Details
(25) TAPPING SCREW 6-16 3T5064370M 3T5-06437-0 $1.27 2
(26) CLAMP 6.5-87P 3T4069721M 3T4-06972-1 $1.53 3
(27) STARTER SOLENOID 3H8760400M 3H8-76040-0 $67.57 1
(28) BOLT 9101035610M 910103-5610 $1.02 2
(29) STARTER CORD (L=270) 3R3761410M 3R3-76141-0 $24.89 1
(30) CAP CORD 3A3761450M 3A3-76145-0 FOR PTT TYPE $3.39 2
(31) FUSE WIRE ASSY 3Y9760621M 3Y9-76062-1 FOR PTT TYPE $113.37 1 Sold Out View More Details
(32) FUSE HOLDER B (EFO TYPE) 3Z5760660M 3Z5-76066-0 FOR MANUAL GAS ASSIST $0.00 1 Sold Out View More Details
(33) FUSE 30A 3T5762490M 3T5-76249-0 $2.40 1
(34) FUSE 25A 3Y9762480M 3Y9-76248-0 $1.98 1
(35) FUSE 15A 3T5762460M 3T5-76246-0 $3.34 1
(36) SOLENOID SWITCH A PTT 3C8725800M 3C8-72580-0 UP FOR PTT TYPE $42.82 1
(37) SOLENOID SWITCH B PTT 3C8725810M 3C8-72581-0 DN FOR PTT TYPE $42.82 1
(38) GROUND CABLE L=140&285 3T5761421M 3T5-76142-1 FOR PTT TYPE / L=285 L=140 $8.60 1
(39) BOLT 9101036625M 910103-6625 $1.01 3
(40) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.41 3
(41) RUBBER MOUNT 8.5 -12 - 2 3F3069200M 3F3-06920-0 $3.02 6
(42) COLLAR 6.2-9-10.7 3T5760790M 3T5-76079-0 $1.75 3
(43) CAP CORD 3A3761450M 3A3-76145-0 $3.39 3
(44) WATER TEMP SENSOR 3Y9725140M 3Y9-72514-0 FOR PTT TYPE $26.18 1
(44) WATER TEMP SENSOR 3Y9725140M 3Y9-72514-0 FOR MANUAL GAS ASSIST $26.18 1
(45) O-RING 2-10 3G9661360M 3G9-66136-0 FOR PTT TYPE $1.59 1
(45) O-RING 2-10 3G9661360M 3G9-66136-0 FOR MANUAL GAS ASSIST $1.59 1
