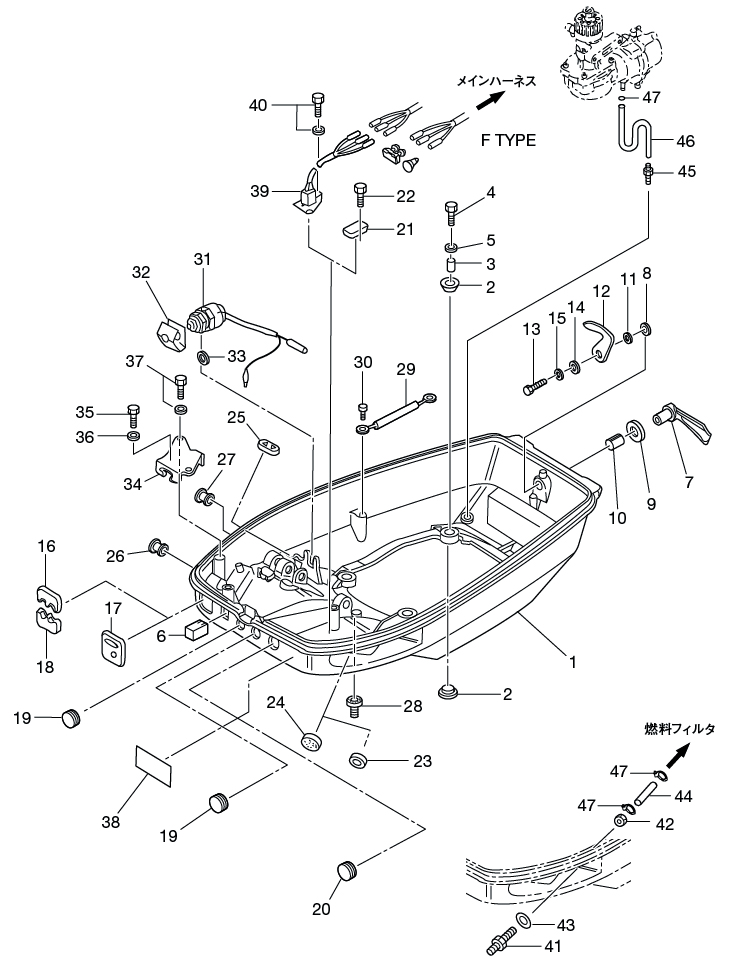

24. BOTTOM COWL (MOTOR COVER LOWER)

Click Here for Microfiche Usage Tip
(1) BOTTOM COWL(2) MOUNT MOTOR COVER LOWER(2) MOUNT MOTOR COVER LOWER(3) SPACER 6.2-9-15.7(4) BOLT(5) WASHER 6.5-21-1(6) PLUG CHOKE KNOB(7) HOOK LEVER(8) WASHER(9) SEAL RING HOOK LEVER(10) HOOK LEVER BUSHING(11) WAVE WASHER D=14(12) COVER HOOK(13) BOLT(14) WASHER 6-16-1.5(15) SPRING WASHER(16) GROMMET REMOTE CONTROL CABLE(17) GROMMET BATTERY CORD(18) GROMMET CORD(19) GROMMET 17-2.7(19) GROMMET 17-2.7(20) GROMMET(21) GROMMET POWER TRIM & TILT SWITCH(22) BOLT(23) GROMMET 18-2.5(24) GROMMET 17-2.7(25) GROMMET THROTTLE WIRE(25) GROMMET THROTTLE HOLE(26) GROMMET THROTTLE SHAFT(27) PLUG(28) GROMMET 17-3(29) GROUND CABLE L=270(30) BOLT(31) NEUTRAL SWITCH(32) NEUTRAL SWITCH ACTUATOR(33) WASHER 12.5-24-1(34) CLUTCH CABLE CLIP BRACKET(35) SCREW 4-20 P0.5(36) SPRING WASHER(37) BOLT 5-16(38) PTT SWITCH DECAL(39) PTT SWITCH (B) ASSY(40) BOLT (W/WASHER)(41) FUEL CONNECTOR (MALE)(42) NUT M10P1.25(43) GASKET 10.2-16-0.5(44) HOSE(45) NIPPLE WATER(46) HOSE(47) CLIP FUEL PIPE o10(47) CLIP FUEL PIPE o10(47) CLIP FUEL PIPE o10



Parts List
2010 :: 50 HP :: TLDI Nissan NSD50B2 :: BOTTOM COWL (MOTOR COVER LOWER)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3C8Q671000 3C8Q67100-0 $0.00 1 Sold Out View More Details
(2) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.78 8 Sold Out View More Details
(3) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.89 4
(4) BOLT 9101E30630M 910114-5630 $1.30 4
(5) WASHER 6.5-21-1 346671150M 346-67115-0 $1.50 4
(6) PLUG 3T5671500M 3T5-67150-0 $1.50 1
(7) HOOK LEVER 3C8Q671410 3C8Q67141-0 $20.31 1
(8) WASHER 14-22-1 3C8671460M 3C8-67146-0 $1.57 1
(9) SEAL RING 338671470M 338-67147-0 $1.98 1
(10) BUSHING 369671050M 369-67105-0 $2.21 1
(11) WAVE WASHER D=14 9414031400M 941403-1400 $0.88 1
(12) COVER HOOK 3C8671421M 3C8-67142-1 $14.66 1
(13) BOLT 9101F40612M 9101F4-0612 $0.90 1
(14) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 $1.50 1
(15) SPRING WASHER 9413030600M 941303-0600 $0.90 1
(16) REMOTE CONTROL CABLE GROMMET 3C8837320M 3C8-83732-0 FOR P TYPE $2.21 1
(17) BATTERY CABLE GROMMET 3T5671620M 3T5-67162-0 FOR F TYPE $7.31 1
(18) CORD GROMMET 3C8761161M 3C8-76116-1 FOR P TYPE $2.28 1
(19) GROMMET 17-2.7 345671170M 345-67117-0 $2.48 2
(20) MAIN SWITCH GROMMET 345760920M 345-76092-0 $4.69 1
(21) GROMMET 3C8726190M 3C8-72619-0 FOR F TYPE $0.00 1 Sold Out View More Details
(22) BOLT 9101030610M 910114-0610 FOR F TYPE $0.83 2
(23) GROMMET 18-2.5 338671630M 338-67163-0 $2.21 1
(24) GROMMET 17-2.7 345671170M 345-67117-0 $2.48 3
(25) THROTTLE CABLE GROMMET 3C8636210M 3C8-63621-0 FOR F TYPE $3.62 1
(25) THROTTLE HOLE GROMMET 3C8636240M 3C8-63624-0 FOR P TYPE $3.62 1
(26) GROMMET 3B2671870M 3B2-67187-0 FOR P TYPE $3.50 1
(27) PLUG 3B7010460M 3B7-01046-0 $1.50 1
(28) GROMMET 17 - 3 345662260M 345-66226-0 $4.19 1
(29) GROUND CABLE 3N4761421M 3N4-76142-1 $5.12 1 Sold Out View More Details
(30) BOLT 9101036612M 910103-6612 $1.24 1
(31) NEUTRAL SWITCH 398760800M 398-76080-0 FOR F TYPE $44.34 1
(32) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 FOR F TYPE $4.35 1
(33) WASHER 12.5-24-1 3B7637310M 3B7-63731-0 FOR F TYPE $2.48 1
(34) REMOTE CONTROL CABLE BRACKET 3C8838200M 3C8-83820-0 FOR P TYPE $12.28 1
(35) SCREW 4-20 P0.5 3C8838210M 3C8-83821-0 FOR P TYPE $2.49 1
(36) SPRING WASHER 9413030400M 941303-0400 FOR P TYPE $0.97 1
(37) BOLT 9101035616M 910103-5616 FOR P TYPE $1.22 2 Sold Out View More Details
(38) PTT SWITCH DECAL 3T5720570M 3T5-72057-0 FOR P TYPE $0.00 1 Sold Out View More Details
(39) PTT SWITCH (B) ASSY 3T5726131M 3T5-72613-0 FOR P TYPE $68.61 1
(40) BOLT 9101035612M 910103-5612 FOR P TYPE $1.15 2 Sold Out View More Details
(41) FUEL CONNECTOR (ENGINE MALE) 3B2702601M 3B2-70260-1 $18.15 1
(42) NUT 10-P 1.25 332702610M 332-70261-0 $2.76 1
(43) GASKET 10.2-16-0.5 336701120M 336-70112-0 $1.66 1
(44) RUBBER HOSE 98AB50260M 98AB-5-0260 98AB-501000 $12.20 1
(45) WATER NIPPLE 3BA011380M 353-01138-0 $2.36 1
(46) RUBBER HOSE 98AB50250M 98AB-5-0250 98AB-501000 $12.20 1
(47) CLIP ø10 338022150M 338-02215-0 $1.50 3
