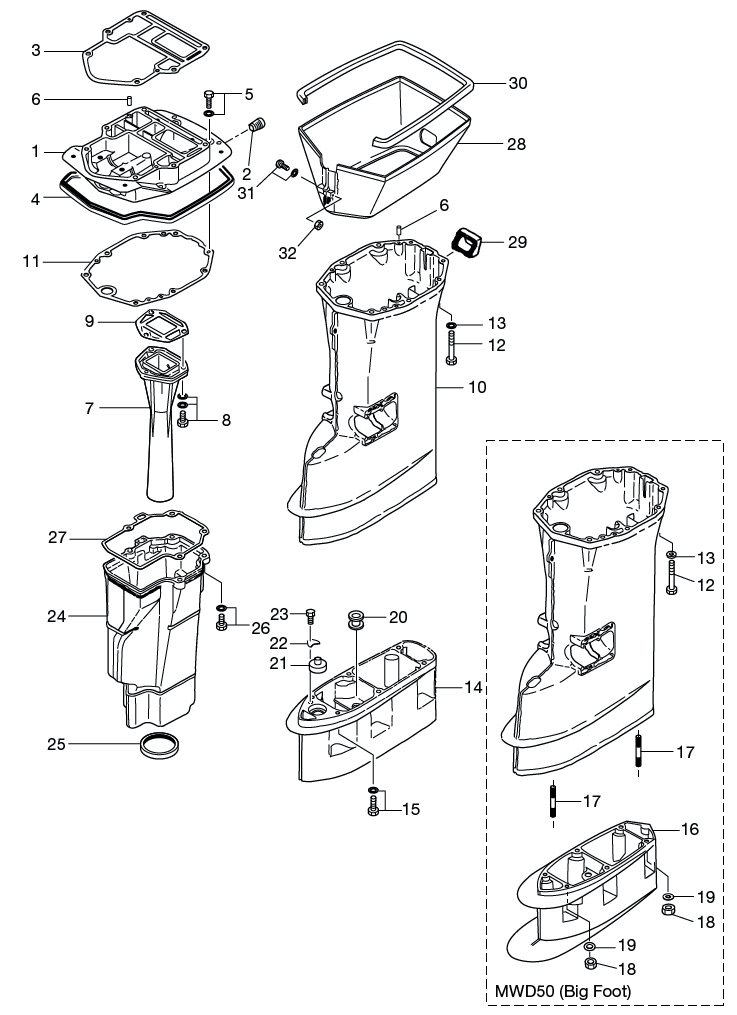

13. DRIVE SHAFT HOUSING

Click Here for Microfiche Usage Tip
(1) ENGINE BASEMENT(2) EXHAUST PLUG(3) ENGINE BASEMENT GASKET(4) ENGINE BASEMENT SEAL(5) BOLT(6) DOWEL PIN 6-12(6) DOWEL PIN 6-12(7) EXHAUST PIPE(8) BOLT(9) EXHAUST PIPE GASKET(10) DRIVE SHAFT HOUSING (S)(10) DRIVE SHAFT HOUSING (L)(11) DRIVE SHAFT HOUSING GASKET(12) BOLT(12) BOLT(13) WASHER(13) WASHER(14) EXTENSION HOUSING(15) BOLT(16) EXTENSION HOUSING ASSY (UL)(17) STUD BOLT(17) STUD BOLT(18) NUT(18) NUT(19) WASHER(19) WASHER(20) WATER PIPE AUXILIARY MOUNT(20) WATER PIPE AUXILIARY MOUNT(21) CAM ROD HOLDER(22) STOPPER DRIVE SHAFT HOUSING(23) BOLT(24) EXHAUST HOUSING(25) GROMMET EXHAUST HOUSING(26) BOLT(27) EXHAUST HOUSING GASKET(28) APRON(29) GROMMET SPLASH PAN(30) SEAL RUBBER SPLASH PAN(31) SCREW(32) NYLON NUT 5P0.8



Parts List
2010 :: 50 HP :: TLDI Nissan NSD50B2 :: DRIVE SHAFT HOUSING
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ENGINE BASEMENT 3T5Q013010 3T5Q01301-0 $174.86 1
(2) EXHAUST PLUG 3H6072570M 3H6-07257-0 $3.68 1
(3) ENGINE BASEMENT GASKET 3C8013034M 3C8-01303-0 $20.71 1
(4) ENGINE BASEMENT SEAL 3C8671160M 3C8-67116-0 $15.21 1
(5) BOLT 9101035625M 910103-5625 $1.47 4
(6) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 4
(7) EXHAUST PIPE 3E3023110M 3E3-02311-0 $73.63 1
(8) BOLT 8-30 3C8023190M 3C8-02319-0 $1.82 3
(9) EXHAUST PIPE GASKET 3C8023122M 3C8-02312-0 $4.29 1
(10) DRIVE SHAFT HOUSING S 3C8Q611911 3C8Q61191-1 FOR TRANSOM S $396.48 1
(10) DRIVE SHAFT HOUSING L 3C8Q611920 3C8Q61192-0 FOR TRANSOM L & UL $425.48 1
(11) DRIVE SHAFT HOUSING GASKET 3C8610122M 3C8-61012-0 $8.29 1
(12) BOLT 9161F40880M 9161F4-0880 $4.51 6
(13) WASHER 9401E30800M 9401E3-0800 $0.65 6
(14) EXTENSION HOUSING UL 3C8Q611100 3C8Q61110-0 FOR TRANSOM UL $392.38 1
(15) BOLT 9101E35835M 910113-5835 FOR TRANSOM UL $3.28 6
(16) EXTENSION HOUSING 3S7Q611100 3S7Q61110-0 FOR MWD50 (BIG FOOT) $341.00 1 Sold Out View More Details
(17) STUD 9153E30825M 915313-0825 FOR MWD50 (BIG FOOT) $3.51 6
(18) NUT 9301030800M 930103-0800 FOR MWD50 (BIG FOOT) $1.99 6
(19) WASHER 9402E30800M 9402E3-0800 FOR MWD50 (BIG FOOT) $1.11 6
(20) WATER PIPE AUXILIARY MOUNT 346652040M 346-65204-0 STD $2.31 1 Sold Out View More Details
(20) WATER PIPE AUXILIARY MOUNT 346652040M 346-65204-0 FOR UL WATER PIPE / LOCKING RUBBER $2.31 2 Sold Out View More Details
(21) HOLDER CAM ROD 346660370M 346-66037-0 FOR TRANSOM UL $2.19 1
(22) STOPPER 353660240M 353-66024-0 FOR TRANSOM UL $4.40 1
(23) BOLT 9101036612M 910103-6612 FOR TRANSOM UL $1.16 1
(24) EXHAUST HOUSING 3C8611800M 3C8-61180-0 $0.00 1 Sold Out View More Details
(25) EXHAUST HOUSING GROMMET 3C8611820M 3C8-61182-0 $9.46 1
(26) BOLT 8-30 3C8611840M 3C8-61184-0 $0.00 4 Sold Out View More Details
(27) EXHAUST HOUSING GASKET 3C8611812M 3C8-61181-0 $10.22 1
(28) APRON 3C8Q612100 3C8S61210-0 $32.72 1
(29) APRON GROMMET 3C8612120M 3C8-61212-0 $6.47 1
(30) APRON SEAL 3C8612130M 3C8-61213-0 $7.34 1
(31) SCREW 9215E35540M 9215E3-5540 $1.47 1
(32) NYLON NUT 5-P0.8 9304030500M 930403-0500 $1.47 1
