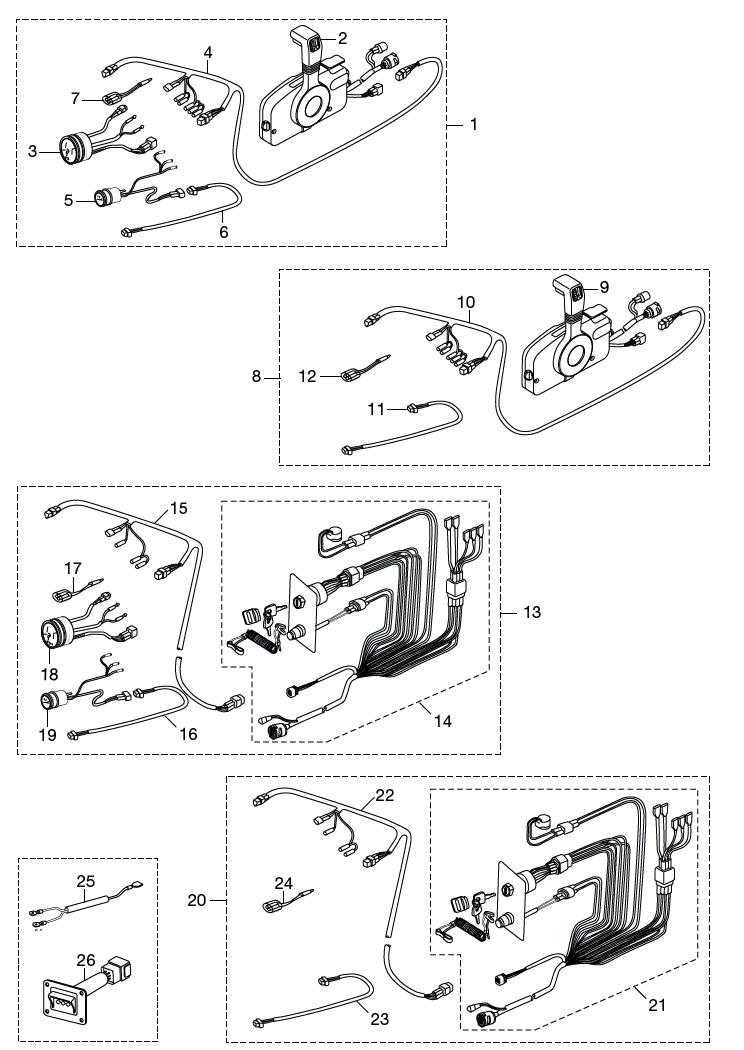

35. RIGGING KIT

Click Here for Microfiche Usage Tip
(1) PRE-RIGGING KIT(2) REMOTE CONTROL HEAD ASSY (RC5F)(3) TACHOMETER(3) TACHOMETER(4) METER LEAD WIRE L=8000(5) TRIM METER (BLACK)(5) TRIM METER (WHITE)(5) TRIM METER(6) EXTENSION CORD (TRIM SENSOR) L=6000(7) ASSIST CORD (BLACK) L=200(8) PRE-RIGGING KIT(9) REMOTE CONTROL HEAD ASSY (RC5F)(10) METER LEAD WIRE L=8000(11) EXTENSION CORD (TRIM SENSOR) L=6000(12) ASSIST CORD (BLACK) L=200(13) PRE-RIGGING KIT(14) RIGGING CORD KIT(15) METER LEAD WIRE(16) EXTENSION CORD (TRIM SENSOR) L=6000(17) ASSIST CORD (BLACK) L=200(18) TACHOMETER (W/OIL LAMP)(18) TACHOMETER(19) TRIM METER (BLACK)(19) TRIM METER (WHITE)(19) TRIM METER ASSY(20) PRE-RIGGING KIT(21) RIGGING CORD KIT(22) METER LEAD WIRE(23) EXTENSION CORD (TRIM SENSOR) L=6000(24) ASSIST CORD (BLACK) L=200(25) LEAD WIRE L=200(26) LAMP PANEL ASSY



Parts List
2010 :: 40 HP :: TLDI Tohatsu MD40B2 :: RIGGING KIT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) PRE-RIGGING KIT 3Y7Q845505 3Y7Q84550-5 WITH METER $0.00 1 Sold Out View More Details
(2) REMOTE CONTROL HEAD ASSY (RC5F) 3GFQ845000 3T5Q84500-1 $490.66 1
(3) TACHOMETER (WHITE) 3GL726470M 3GL726470M $0.00 1 Sold Out View More Details
(3) TACHOMETER (BLACK) 3GF726470M 3GF726470M $0.00 1 Sold Out View More Details
(4) METER LEAD WIRE 3T5725370M 3T5-72537-0 $215.66 1
(5) TRIM METER KIT 3GF725710M 3GF725710M 2-WIRE $105.57 1
(5) TRIM METER KIT 3GL725710M 3GL725710M 2-WIRE $105.57 1
(5) TRIM METER 3T1725710M 3F3-72574-1 2-WIRE $0.00 1 Sold Out View More Details
(6) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $45.94 1 Sold Out View More Details
(7) ASSIST CORD (BLACK) 353725480M 353-72548-0 $6.33 1
(8) PRE-RIGGING KIT 3GLQ845500 3GLQ84550-0 WITHOUT METER $490.66 1
(9) REMOTE CONTROL HEAD ASSY (RC5F) 3GFQ845000 3T5Q84500-1 $490.66 1
(10) METER LEAD WIRE 3T5725370M 3T5-72537-0 $215.66 1
(11) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $45.94 1 Sold Out View More Details
(12) ASSIST CORD (BLACK) 353725480M 353-72548-0 $6.33 1
(13) PRE-RIGGING KIT 3Z5845505M 3Z5-84550-5 WITH METER $861.67 1 Sold Out View More Details
(14) HARNESS KIT 3Y9845601M 3Y9845601M $0.00 1 Sold Out View More Details
(15) METER LEAD WIRE 3T5725370M 3T5-72537-0 $215.66 1
(16) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $45.94 1 Sold Out View More Details
(17) ASSIST CORD (BLACK) 353725480M 353-72548-0 $6.33 1
(18) TACHOMETER 3Z5726401M 3Z5-72640-1 $0.00 1 Sold Out View More Details
(18) TACHOMETER (BLACK) 3GF726470M 3GF726470M $0.00 1 Sold Out View More Details
(19) TRIM METER KIT 3GF725710M 3GF725710M $105.57 1
(19) TRIM METER KIT 3GL725710M 3GL725710M $105.57 1
(19) TRIM METER 3T1725710M 3F3-72574-1 $0.00 1 Sold Out View More Details
(20) PRE-RIGGING KIT 3GM845500M 3GM-84550-0 WITHOUT METER $707.37 1
(21) HARNESS KIT 3Y9845601M 3Y9845601M $0.00 1 Sold Out View More Details
(22) METER LEAD WIRE 3T5725370M 3T5-72537-0 $215.66 1
(23) TRIM SENSOR EXTENSION CORD 3T1725730M 3T1-72573-0 $45.94 1 Sold Out View More Details
(24) ASSIST CORD (BLACK) 353725480M 353-72548-0 $6.33 1
(25) LEAD WIRE 3Y9760490M 3Y9-76049-0 FOR TWIN ENGINES (PTT) $0.00 1 Sold Out View More Details
(26) LAMP PANEL ASSY 3Y9726510M 3Y9-72651-0 $0.00 1 Sold Out View More Details
