34. ASSEMBLY - KIT

Click Here for Microfiche Usage Tip

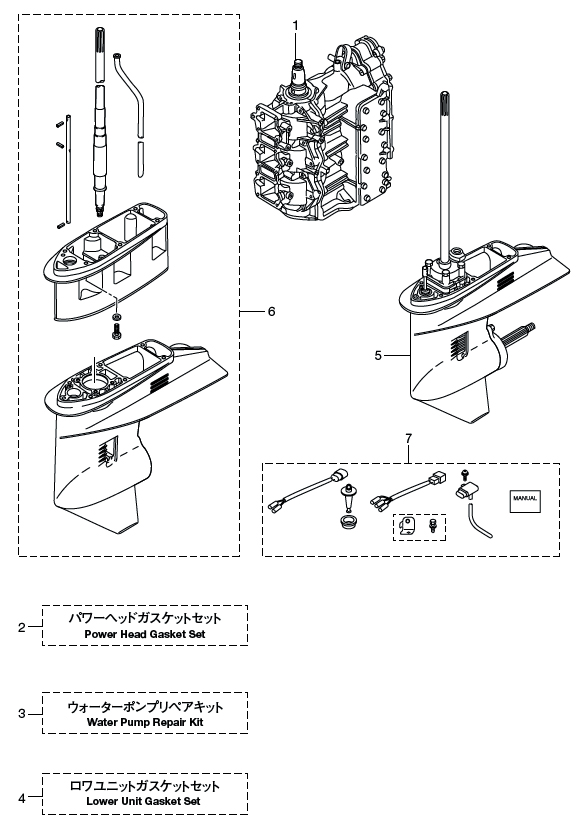

(1) ENGINE SHORT BLOCK KIT(1) ENGINE SHORT BLOCK KIT (ITALY)(2) POWER HEAD GASKET SET(3) WATER PUMP REPAIR KIT(4) LOWER UNIT GASKET SET(5) LOWER UNIT ASSY (S)(5) LOWER UNIT ASSY (L)(5) LOWER UNIT ASSY (UL)(6) EXTENSION HOUSING KIT (UL)(7) ALTITUDE ADJUSTMENT KIT



Parts List
2010 :: 40 HP :: TLDI Tohatsu MD40B2 :: ASSEMBLY - KIT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ENGINE SHORT BLOCK KIT 3GFB870901 3GFB87090-1 STD $3,428.02 1
(1) ENGINE SHORT BLOCK KIT (ITALY) 3GLB87090-1 NA FOR ITALY USE ONLY $0.00 1 Sold Out View More Details
(2) POWER HEAD GASKET SET 3T5871216M 3T5-87121-3 $127.91 1
(3) WATER PUMP REPAIR KIT 3T5873223M 3T5873222M $48.13 1
(4) LOWER UNIT GASKET SET 3T5873212M 3T5873212M $42.46 1
(5) LOWER UNIT ASSY (S) 3T5Q873013 3T5Q87301-3 FOR TRANSOM S $978.02 1
(5) LOWER UNIT ASSY (L) 3T5Q873023 3T5Q87302-3 FOR TRANSOM L $993.17 1
(5) LOWER UNIT ASSY (UL) 3T5Q873043 3T5Q87304-3 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(6) EXTENSION HOUSING KIT (UL) 3C8Q873141 3C8Q87314-0 FOR TRANSOM L $875.02 1
(7) ALTITUDE ADJUSTMENT KIT 3GF102300M 3GF-10230-0 FOR HIGH ALTITUDE $110.13 1
