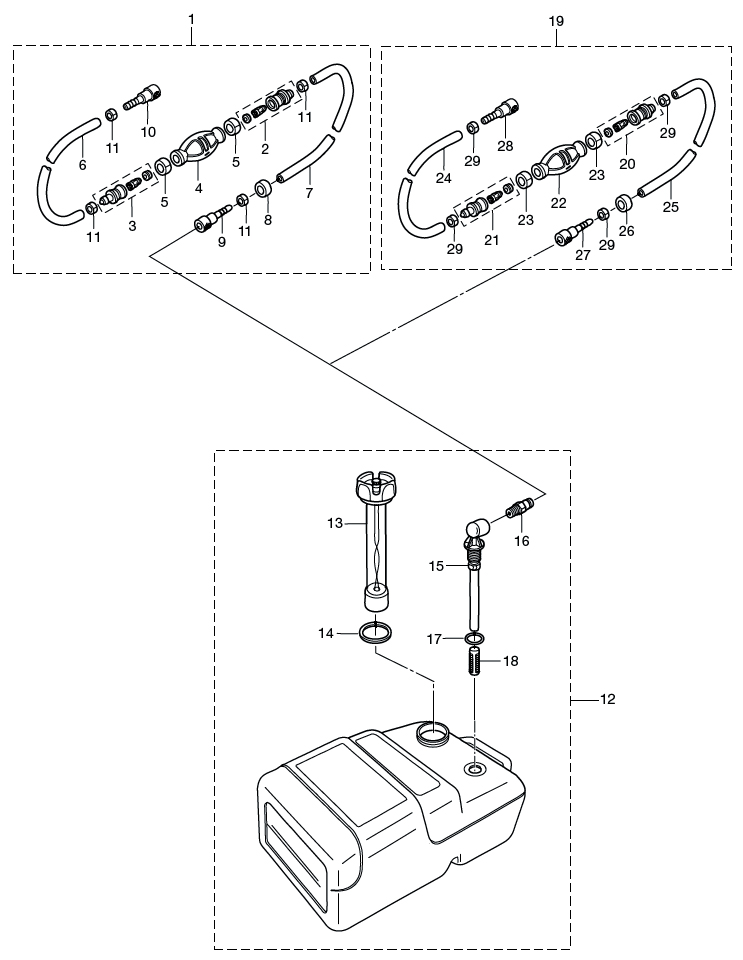

27. SEPARATE FUEL TANK

Click Here for Microfiche Usage Tip
(1) PRIMER BULB ASSY(2) JOINT ASSY (INLET)(3) JOINT ASSY (OUTLET)(4) PRIMER BULB(5) CLAMP(5) CLAMP(6) HOSE(7) HOSE(8) FUEL CONNECTOR MARK(9) FUEL CONNECTOR(10) FUEL CONNECTOR(11) CLAMP(11) CLAMP(11) CLAMP(11) CLAMP(12) FUEL TANK ASSY 25LITER (TOHATSU)(12) FUEL TANK ASSY 25LITER (NISSAN)(13) FUEL GAUGE VENT CAP ASSY(14) TANK FILLER CAP GASKET(15) PICK-UP ELBOW ASSY (25LITER)(16) QUICK-CONNECTOR (MALE)(17) O-RING(18) FILTER(19) PRIMER BULB ASSY(20) JOINT ASSY (INLET)(21) JOINT ASSY (OUTLET)(22) PRIMER BULB(23) CLAMP(23) CLAMP(24) HOSE(25) HOSE(26) FUEL CONNECTOR MARK(27) FUEL CONNECTOR(28) FUEL CONNECTOR(29) CLAMP(29) CLAMP(29) CLAMP(29) CLAMP



Parts List
2010 :: 40 HP :: TLDI Tohatsu MD40B2 :: SEPARATE FUEL TANK
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) PRIMER BULB ASSY 3B7702004M 3B7-70200-3 $125.87 1
(2) JOINT A ASSY IN 3C7702201M 3C7-70220-1 $8.52 1
(3) JOINT A ASSY OUT 3C7702241M 3C7-70224-1 $8.77 1
(4) PRIMER BULB 3C7702111M 3C7-70211-0 $22.31 1
(5) CLAMP 3C7702170M 3C7-70217-0 $3.27 2
(6) RUBBER HOSE 98AB70700M 98AB-7-0700 98AB-701000 $13.44 1
(7) HOSE 98AB701600M 98AB-701600 98AB-701000×2 $13.44 1
(8) FUEL CONNECTOR MARK 3B7702801M 3B7-70280-1 $2.62 1
(9) FUEL CONNECTOR 3GF702810M 3GF-70281-0 $24.91 1
(10) FUEL CONNECTOR 3GF702500M 3GF-70250-0 $22.14 1
(11) CLAMP 332702010M 332-70201-0 $2.07 4
(12) FUEL TANK ASSY (25L) 3C7701770M 3C7-70177-0 TOHATSU $102.65 1
(12) FUEL TANK ASSY (25L) 99998FT26M 99998FT26M NISSAN $102.65 1
(13) FUEL GAUGE VENTED CAP ASSY 3C7700500M 3C7-70050-0 $0.00 1 Sold Out View More Details
(14) TANK CAP GASKET 3C7700210M 3C7-70021-0 $0.00 1 Sold Out View More Details
(15) ELBOW TUBING AND CLAMP ASSY 3C7701550M 3C7-70155-0 $13.52 1
(16) MALE QUICK CONNETOR 3E0702700M 3E0-70270-0 $9.71 1
(17) O-RING 3C7701990M 3C7-70199-0 $1.24 1
(18) FILTER 3C7701130M 3C7-70113-0 $3.20 1
(19) PRIMER BULB ASSY 3GF702002M 3GF-70200-2 LOW PERMEATION PARTS (FOR USA MODEL) $137.78 1
(20) JOINT A ASSY IN 3C7702201M 3C7-70220-1 $8.52 1
(21) JOINT A ASSY OUT 3C7702241M 3C7-70224-1 $8.77 1
(22) PRIMER BULB 3C7702111M 3C7-70211-0 $22.31 1
(23) CLAMP 3C7702170M 3C7-70217-0 $3.27 2
(24) HOSE 3GF702410M 3GF-70241-0 LOW PERMEATION PARTS (FOR USA MODEL) $0.00 1 Sold Out View More Details
(25) HOSE 3GF702400M 3GF-70240-0 LOW PERMEATION PARTS (FOR USA MODEL) $0.00 1 Sold Out View More Details
(26) FUEL CONNECTOR MARK 3B7702801M 3B7-70280-1 $2.62 1
(27) FUEL CONNECTOR 3GF702810M 3GF-70281-0 $24.91 1
(28) FUEL CONNECTOR 3GF702500M 3GF-70250-0 $22.14 1
(29) CLAMP 332702010M 332-70201-0 $2.07 4
