22. TILLER HANDLE (F TYPE)

Click Here for Microfiche Usage Tip

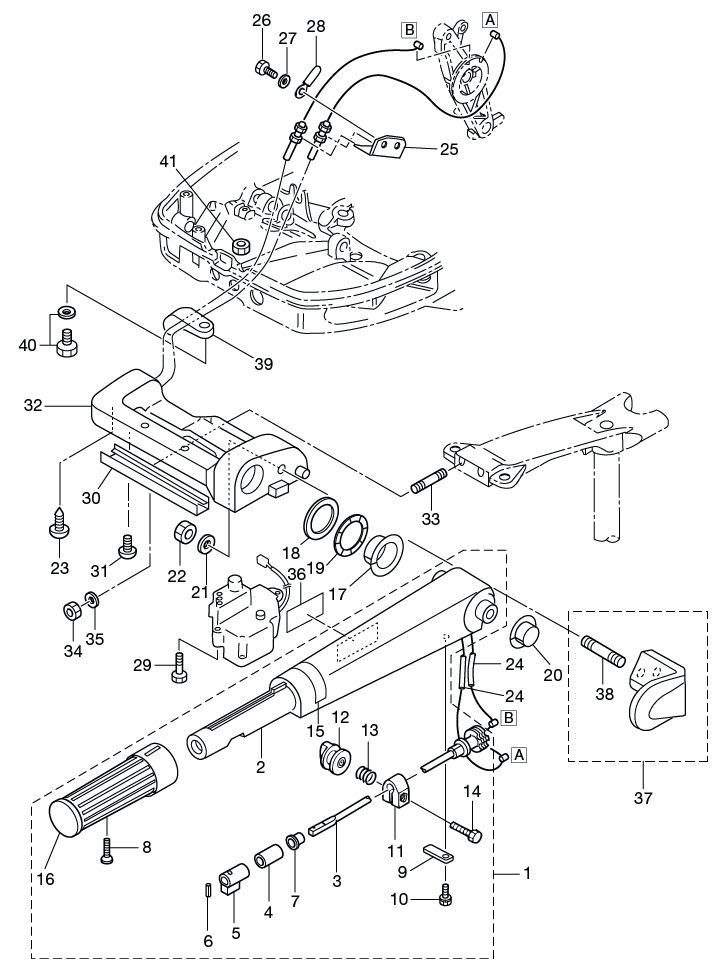

(1) TILLER HANDLE ASSY(2) TILLER HANDLE(3) THROTTLE SHAFT(4) THROTTLE SHAFT DAMPER A(5) SPACER THROTTLE SHAFT A(6) SPRING PIN 3-10(7) BUSHING 8.4-10-11(8) SCREW(9) THROTTLE SHAFT SUPPORT(10) BOLT(11) FRICTION PIECE(12) ADJUSTING NUT(13) SPRING(14) BOLT(15) THROTTLE DECAL(16) GRIP(17) BUSHING A STEERING HANDLE(18) WASHER 30-45-1(19) WAVE WASHER 30-45-1.2(20) BUSHING B STEERING HANDLE(21) WASHER(22) NUT 10P1.5(23) CLIP THROTTLE WIRE(24) THROTTLE WIRE(24) THROTTLE WIRE(25) THROTTLE WIRE BRACKET(26) BOLT(27) WASHER(28) CLAMP 6.5-47.5P(29) BOLT(30) CORD HOLDER(31) SCREW(32) STEERING BRACKET(33) STUD BOLT(34) NYLON NUT 8P1.25(35) WASHER(36) MAIN SWITCH DECAL(37) TILLER HANDLE HOLDER ASSY(38) STUD BOLT(39) CLAMP(40) BOLT (W/WASHER)(41) NUT



Parts List
2010 :: 40 HP :: TLDI Tohatsu MD40B2 :: TILLER HANDLE (F TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILLER HANDLE ASSY 3T5Q630031 3T5Q63003-1 STEERING HANDLE ASSY $136.44 1
(2) TILLER HANDLE 3C8Q630112 3C8S63011-1 $82.87 1
(3) THROTTLE SHAFT 3C8630411M 3C8-63041-1 $33.06 1
(4) RUBBER THROTTLE SHAFT 345630480M 345-63048-0 $1.85 1
(5) THROTTLE SHAFT SPACER 398630530M 398-63053-0 $2.31 1
(6) SPRING PIN 3-10 9514030310M 951403-0310 $0.86 1
(7) BUSHING 8.4 -10 -11 350630460M 350-63046-0 $1.85 1
(8) SCREW 9218030525M 921803-0525 $0.92 1
(9) THROTTLE SHAFT SUPPORTER 3C8630630M 3C8-63063-0 $1.85 1
(10) BOLT 9101E35612M 910103-5612 $1.07 1
(11) FRICTION PIECE 3V1630351M 3V1-63035-0 $2.58 1
(12) ADJUSTING NUT 3V1630770M 3V1-63077-0 $3.85 1
(13) SPRING 3V1630360M 3V1-63036-0 $1.57 1
(14) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 $0.95 1
(15) THROTTLE DECAL 3T5720190M 3T5-72019-0 $2.25 1
(16) GRIP 398630120M 398-63012-0 $29.88 1
(17) TILLER HANDLE BUSHING A 3C8631010M 3C8-63101-0 $5.98 1
(18) WASHER 30-45-1 3B2631080M 3B2-63108-0 $1.41 1
(19) WAVE WASHER 30-45-1.2 3B2631090M 3B2-63109-0 $4.19 1
(20) TILLER HANDLE BUSHING B 3C8631021M 3C8-63102-1 $2.56 1
(21) WASHER 9401E31000M 940113-1000 $1.50 1
(22) NUT 9301031000M 930103-1000 $1.59 1
(23) THROTTLE CABLE CLIP 3C8636070M 3C8-63607-0 $1.18 1
(24) THROTTLE WIRE 3C8636001M 3C8-63600-0 $21.14 2
(25) THROTTLE CABLE BRACKET 3C8635080M 3C8-63508-0 $4.78 1
(26) BOLT 9101F40614M 9101F4-0614 $0.67 2
(27) WASHER 9401030600M 940103-0600 $0.70 2
(28) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(29) BOLT 9101036625M 910103-6625 $1.01 2
(30) CORD HOLDER 3T5620040M 3T5-62004-0 $10.04 1
(31) SCREW 9219030625M 921903-0625 $0.92 2
(32) STEERING BRACKET 3C8Q620012 3C8S62001-2 $45.63 1
(33) STUD 9152E30845M 915213-0845 $0.00 2 Sold Out View More Details
(34) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 2
(35) WASHER 9401E30800M 9401E3-0800 $0.65 2
(36) MAIN SWITCH DECAL 3T5843350M 3T5-84335-0 $2.05 1
(37) TILLER HOLDER ASSY 3C8Q630270 3C8Q63027-0 $30.92 1
(38) STUD 9153E31022M 9153E3-1022 $4.26 1
(39) CLAMP 3P0069150M 3P0-06915-0 $3.31 1 Sold Out View More Details
(40) BOLT 9101035612M 910103-5612 $1.07 1
(41) NUT 9301030600M 930113-0600 $0.84 1
