20. BRACKET (2) POWER TRIM & TILT

Click Here for Microfiche Usage Tip

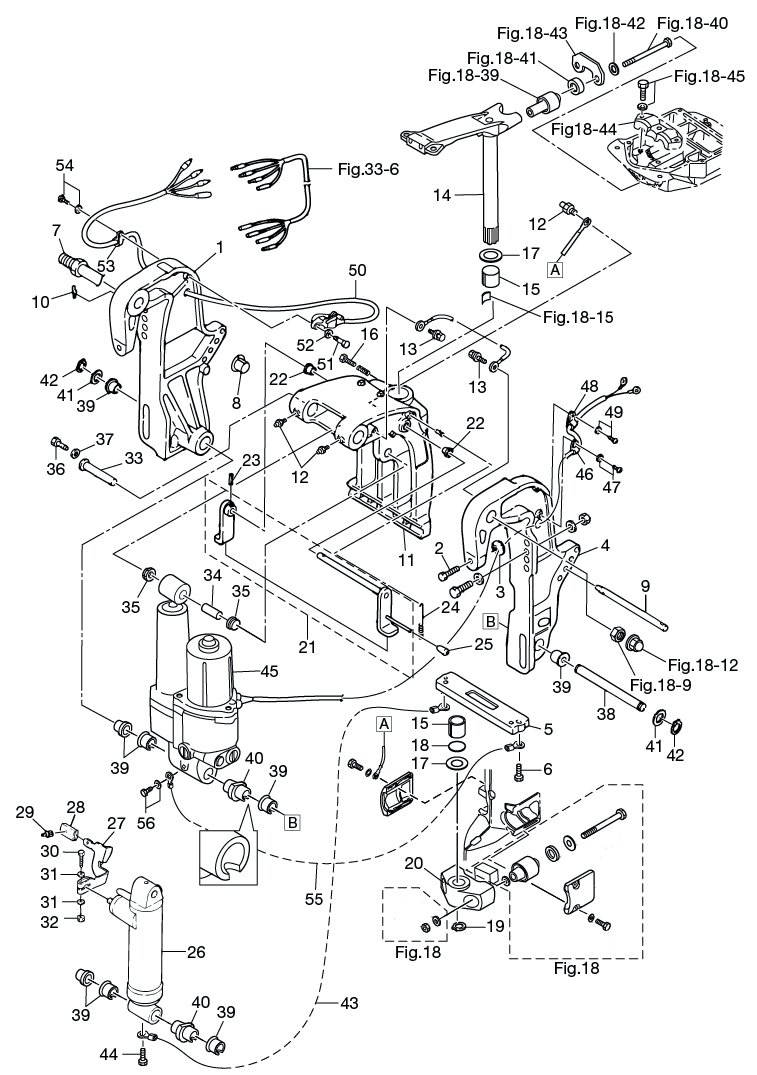

(1) CLAMP BRACKET (PTT-R)(2) CLAMP SCREW (PTT)(2) CLAMP SCREW (PTT)(3) CLAMP SCREW PAD(3) CLAMP SCREW PAD(4) CLAMP BRACKET (PTT-L)(5) ANODE STERN BRACKET(6) BOLT(7) SWIVEL BRACKET SHAFT ASSY(8) BUSHING BRACKET BOLT(9) PTT THRUST ROD(10) SNAP PIN(11) SWIVEL BRACKET ASSY (PTT)(12) GREASE FITTING(12) GREASE FITTING(13) BOLT(13) BOLT(13) BOLT(13) BOLT(14) STEERING SHAFT ASSY(15) BUSHING BRACKET SHAFT(15) BUSHING BRACKET SHAFT(16) BOLT(17) THRUST PLATE (UPPER)(17) THRUST PLATE (UPPER)(18) O-RING BRACKET SHAFT(19) C-RING D=28(20) MOUNT BRACKET(21) TILT STOPPER ASSY(21) TILT STOPPER ASSY(22) COLLAR 10.2-12-12(22) COLLAR 10.2-12-12(23) SPRING PIN 3.5-16(24) TILT STOPPER SPRING(25) TILT STOPPER GRIP(26) GAS SHOCK ABSORBER(27) REVERSE LOCK LEVER(28) REVERSE LOCK LEVER GRIP(29) STOPPER REVERSE LOCK LEVER GRIP(30) BOLT(31) WASHER(31) WASHER(31) WASHER(31) WASHER(32) NUT(33) CYLINDER PIN (UPPER)(33) CYLINDER PIN (UPPER)(34) BUSHING 13-16-40(34) BUSHING 13-16-40(35) BUSHING 13-17-19.5(35) BUSHING 13-17-19.5(35) BUSHING 13-17-19.5(35) BUSHING 13-17-19.5(36) BOLT 6-12(36) BOLT 6-12(37) WASHER 6.5-23-1.5(37) WASHER 6.5-23-1.5(38) CYLINDER PIN (LOWER)(38) CYLINDER PIN (LOWER)(39) BUSHING 18-24-22(39) BUSHING 18-24-22(39) BUSHING 18-24-22(39) BUSHING 18-24-22(39) BUSHING 18-24-22(39) BUSHING 18-24-22(39) BUSHING 18-24-22(39) BUSHING 18-24-22(39) BUSHING 18-24-22(39) BUSHING 18-24-22(39) BUSHING 18-24-22(39) BUSHING 18-24-22(40) BUSHING 18-24-60(40) BUSHING 18-24-60(40) BUSHING 18-24-60(40) BUSHING 18-24-60(41) WASHER 18.2-34-1(41) WASHER 18.2-34-1(41) WASHER 18.2-34-1(41) WASHER 18.2-34-1(42) C-RING D=18(42) C-RING D=18(42) C-RING D=18(42) C-RING D=18(43) GROUND (EARTH WIRE)(44) BOLT(45) PTT ASSY(46) CLAMP 6-9.5L(47) SCREW(48) CLAMP 6.5-14(49) SCREW(50) TRIM SENSOR L=1700(51) BOLT(52) WASHER 6-16-1.5(53) CLAMP 6-9.5L(54) SCREW(55) GROUND (EARTH WIRE) L=130(56) BOLT



Parts List
2010 :: 40 HP :: TLDI Tohatsu MD40B2 :: BRACKET (2) POWER TRIM & TILT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (RIGHT) 3Z5Q772110 3Z5Q77211-0 STERN BRACKET (RIGHT) STARBOARD $0.00 1 Sold Out View More Details
(2) CLAMP SCREW 3C8772140M 3C8-77214-0 R $39.91 1
(2) CLAMP SCREW 3C8772140M 3C8-77214-0 L $39.91 1
(3) CLAMP SCREW PAD 332621010M 332-62101-0 R $3.36 1
(3) CLAMP SCREW PAD 332621010M 332-62101-0 L $3.36 1
(4) CLAMP BRACKET (LEFT) 3Z5Q772120 3Z5Q77212-0 STERN BRACKET (LEFT) PORT $0.00 1 Sold Out View More Details
(5) ANODE 3C7602182M 3C7-60218-2 $19.84 1
(6) BOLT 9101036630M 910103-6630 $1.30 2
(7) SWIVEL BRACKET SHAFT 3AD621910M 3Z5-62191-0 BRACKET BOLT $41.18 1
(8) BUSHING BRACKET BOLT 3C8772130M 3C8-77213-0 $5.07 2
(9) THRUST ROD 3R0771180M 3R0-77118-0 $22.77 1
(10) SNAP PIN D=10 9516031000M 951603-1000 $1.13 1
(11) SWIVEL BRACKET (POWER TRIM & TILT) 3Z5Q772150 3Z5Q77215-0 $292.22 1
(12) GREASE FITTING 344671770M 344-67177-0 $2.56 3 Sold Out View More Details
(13) BOLT 9101E35612M 910103-5612 FOR GAS ASSIST MODEL $1.07 1
(13) BOLT 9101E35612M 910103-5612 FOR PTT MODEL $1.07 1
(14) STEERING SHAFT 3Z5Q620100 3Z5Q62010-0 $308.12 1
(15) BUSHING 30 - 36 - 41 353624170M 353-62417-0 $5.98 2 Sold Out View More Details
(16) BOLT 9101E30830M 9101E3-0830 $1.67 1
(17) THRUST PLATE 353624231M 353624230M $3.92 2
(18) O-RING 3.5 - 29.7 353624150M 353-62415-0 $2.53 1
(19) C-RING D=28 9451032800M 945103-2800 $1.06 1
(20) MOUNT BRACKET 3Z5Q614110 3Z5Q61411-0 $0.00 1 Sold Out View More Details
(21) TILT STOPPER ASSY 3R0Q624700 3R0Q62470-0 FOR GAS ASSIST MODEL $66.77 1
(21) TILT STOPPER ASSY 3Z5624701M 3Z5-62470-1 FOR PTT MODEL $66.77 1
(22) COLLAR 10.2 -12 -12 353632070M 353-63207-0 $1.10 2
(23) SPRING PIN 3.5 -16 9514033516M 951403-3516 $0.84 1
(24) SPRING TILT STOPPER 3R0624730M 3R0-62473-0 $3.91 1
(25) TILT STOPPER GRIP 369624331M 369-62433-1 $1.85 1
(26) GAS SHOCK ABSORBER 3Z5776010 3Z5-77601-0 FOR GAS ASSIST MODEL $770.62 1
(27) LOCK LEVER 3R0663110M 3R0-66311-0 FOR GAS ASSIST MODEL $28.78 1
(28) REVERSE LOCK LEVER GRIP 3AL663330M 3AL-66333-0 FOR GAS ASSIST MODEL $3.62 1
(29) STOPPER LEVER GRIP 346663340M 346-66334-0 FOR GAS ASSIST MODEL $1.27 1
(30) BOLT 9101F40635M 9101F4-0635 FOR GAS ASSIST MODEL $0.00 1 Sold Out View More Details
(31) WASHER 9401E30600M 9401E3-0600 FOR GAS ASSIST MODEL $0.00 2 Sold Out View More Details
(31) WASHER 9401030600M 940103-0600 FOR GAS ASSIST MODEL $0.70 2
(32) NUT 9301E30600M 9301E3-0600 FOR GAS ASSIST MODEL $0.52 1 Sold Out View More Details
(33) CYLINDER PIN (UPPER) 3R0770711M 3R0-77071-1 FOR GAS ASSIST MODEL $8.58 1
(33) CYLINDER PIN (UPPER) 3R0770711M 3R0-77071-1 FOR PTT MODEL $8.58 1
(34) BUSHING 13 -16 - 40 3R0770750M 3R0-77075-0 FOR GAS ASSIST MODEL $1.57 1
(34) BUSHING 13 -16 - 40 3R0770750M 3R0-77075-0 FOR PTT MODEL $1.57 1
(35) BUSHING 13 -17 -19.5 3R0770760M 3R0-77076-0 FOR GAS ASSIST MODEL $1.57 2
(35) BUSHING 13 -17 -19.5 3R0770760M 3R0-77076-0 FOR PTT MODEL $1.57 2
(36) BOLT 9101030612M 910113-0612 FOR GAS ASSIST MODEL $0.84 1
(36) BOLT 9101E30612M 9101E3-0612 FOR PTT MODEL $0.84 1
(37) WASHER 6.5-23-1.5 345051221M 345-05122-1 FOR GAS ASSIST MODEL $2.17 1
(37) WASHER 6.5-23-1.5 345051221M 345-05122-1 FOR PTT MODEL $2.17 1
(38) CYLINDER PIN (LOWER) 3R0771011M 3R0-77101-0 FOR GAS ASSIST MODEL $38.19 1
(38) CYLINDER PIN (LOWER) 3R0771011M 3R0-77101-0 FOR PTT MODEL $38.19 1
(39) BUSHING 18 - 24 - 22 3C8770761M 3C8-77076-1 FOR GAS ASSIST MODEL $2.31 5
(39) BUSHING 18 - 24 - 22 3C8770761M 3C8-77076-1 FOR PTT MODEL $2.31 5
(40) BUSHING 18-24-60 3Z5771030M 3Z5-77103-0 FOR GAS ASSIST MODEL $3.17 1
(40) BUSHING 18-24-60 3Z5771030M 3Z5-77103-0 FOR PTT MODEL $3.17 1
(41) WASHER 18.2 - 34 -1 3R0771120M 3R0-77112-0 FOR GAS ASSIST MODEL $2.40 2
(41) WASHER 18.2 - 34 -1 3R0771120M 3R0-77112-0 FOR PTT MODEL $2.40 2
(42) C-RING D=18 9451031800M 945103-1800 FOR GAS ASSIST MODEL $1.93 2
(42) C-RING D=18 9451031800M 945103-1800 FOR PTT MODEL $1.93 2
(43) GROUND CABLE 3C8623961M 3C8-62396-0 FOR GAS ASSIST MODEL $4.56 1
(44) BOLT 9101035608M 910103-5608 FOR GAS ASSIST MODEL $1.59 1
(45) PTT ASSY 3Z5771501M 3Z5-77150-1 FOR PTT MODEL $1,410.91 1
(46) CLAMP 6 - 9.5L 336069730M 336-06973-0 FOR PTT MODEL $1.41 1
(47) SCREW 9215035612M 921503-5612 FOR PTT MODEL $0.86 1
(48) CLAMP 6.5-14L 345069150M 345-06915-0 FOR PTT MODEL $4.63 1
(49) SCREW 9215035612M 921503-5612 FOR PTT MODEL $0.86 1
(50) TRIM SENSOR 3Z4725740M 3Z4-72574-0 FOR PTT MODEL $220.86 1
(51) BOLT 9101030620M 910103-0620 FOR P TYPE $1.04 2
(52) WASHER 6 -16 -1.5 3C8663080M 3C8-66308-0 FOR P TYPE $1.41 2
(53) CLAMP 6 - 9.5L 336069730M 336-06973-0 FOR P TYPE $1.41 1
(54) SCREW 9215035612M 921503-5612 FOR P TYPE $0.86 1
(55) GROUND CABLE 398623961M 398-62396-1 $5.75 1 Sold Out View More Details
(56) BOLT 9101E35612M 910103-5612 $1.07 1
