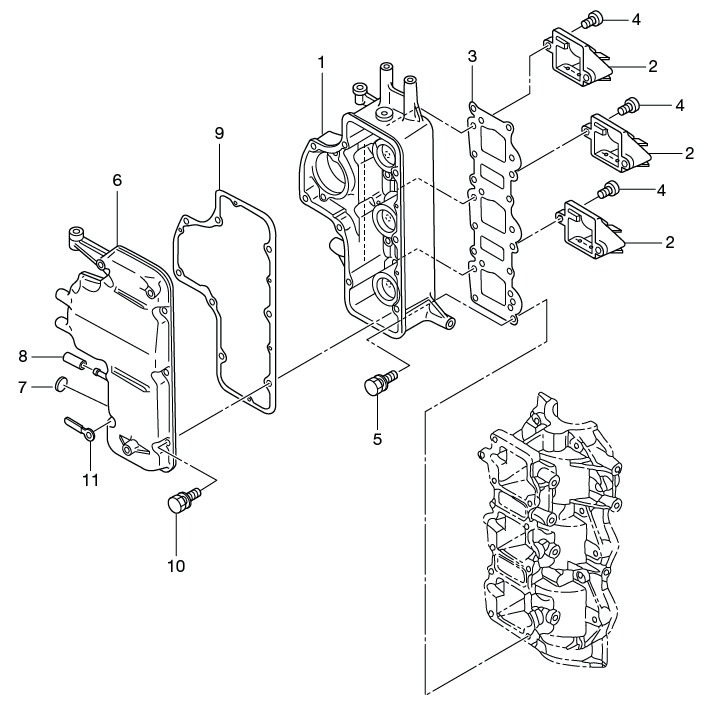

3. AIR CHAMBER (AIR BOX)

Click Here for Microfiche Usage Tip
(1) AIR CHAMBER ASSY(2) REED VALVE ASSY(2) REED VALVE ASSY(2) REED VALVE ASSY(3) INTAKE MANIFOLD GASKET(4) SCREW(4) SCREW(4) SCREW(5) BOLT 6-25 PRECOATED(6) AIR CHAMBER COVER(7) GROMMET(8) SEALING CAP(9) AIR CHAMBER COVER GASKET(10) BOLT(11) CLAMP 7-120P



Parts List
2010 :: 40 HP :: TLDI Tohatsu MD40B2 :: AIR CHAMBER (AIR BOX)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) AIR CHAMBER 3T5B022400 3T5B02240-0 $93.13 1
(2) REED VALVE ASSY 3T5021001M 3T5-02100-0 $56.49 3
(3) REED VALVE GASKET 3T5021041M 3T5-02104-1 $17.12 1
(4) SCREW 9215216516M 921521-6516 $0.55 6
(5) BOLT 6-25 PRE-COATED 3T5022410M 3T5-02241-0 $0.79 12
(6) AIR CHAMBER COVER 3GFB022440 3GFB02244-0 $45.04 1 Sold Out View More Details
(7) MAIN SWITCH GROMMET 345760920M 345-76092-0 $4.38 1
(8) SEALING CAP 3GF011390M 3GF-01139-0 $2.83 1 Sold Out View More Details
(9) AIR CHAMBER COVER GASKET 3T5022450M 3T5-02245-0 $25.93 1
(10) BOLT 9101035625M 910103-5625 $1.47 8
(11) CLAMP 6.5-120P 3Z5069721M 3Z5-06972-1 $0.00 1 Sold Out View More Details
