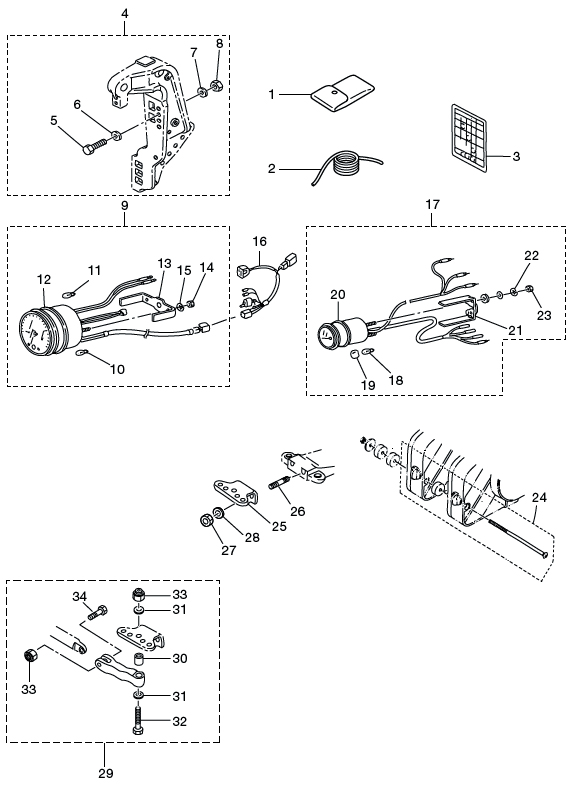

30. ACCESSORIES

Click Here for Microfiche Usage Tip
(1) TOOL KIT(2) SAFETY ROPE 6-1600(3) BUZZER CAUTION DECAL(4) RIGGING BOLT SET(5) BOLT STERN BRACKET L=105(6) WASHER 13-34-3(7) WASHER(8) NUT P1.25(9) TACHOMETER TLDI (BLACK)(9) TACHOMETER TLDI (WHITE)(9) TACHOMETER (W/OIL LAMP)(10) OIL BULB 12V-1.7W(11) METER BULB 12V-1.8W(12) METER DAMPER(13) FITTING PLATE(14) NUT(15) SPRING WASHER(16) METER LEAD WIRE L=8000(17) TRIM METER (BLACK)(17) TRIM METER (WHITE)(17) TRIM METER ASSY(18) METER BULB(19) METER BULB CAP(20) METER DAMPER(21) FITTING PLATE(22) SPRING WASHER(23) NUT(24) TWIN REMOTE CONTROL KIT(25) STEERING HOOK(26) STUD BOLT(27) NYLON NUT 8P1.25(28) WASHER(29) CLEVIS ASSY(30) COLLAR 9.6-13-20.5(31) WASHER 9.6-18-2(31) WASHER 9.6-18-2(32) BOLT 3/8-43(33) NYLON NUT 3/8(33) NYLON NUT 3/8(34) BOLT 3/8-35



Parts List
2010 :: 40 HP :: TLDI Nissan NSD40B2 :: ACCESSORIES
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TOOL 3H6721000M 3H6-72100-0 $28.06 1
(2) ROPE 3B7722010M 3B7-72201-0 $5.07 1
(3) WARNING BUZZER CAUTION DECAL 3T5720500M 3T5-72050-0 $4.56 1
(4) RIGGING BOLT SET 3C8721200M 3C8-72120-0 $47.55 1
(5) BOLT 12P 1.25 - L105 3C7621332M 3C7-62133-2 $5.40 4
(6) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 4
(7) WASHER 9401031200M 940103-1200 $0.51 4
(8) NUT P1.25 3C7621391M 3C7-62139-1 $1.62 4
(9) TACHOMETER (BLACK) 3GF726470M 3GF726470M $0.00 1 Sold Out View More Details
(9) TACHOMETER (WHITE) 3GL726470M 3GL726470M $0.00 1 Sold Out View More Details
(9) TACHOMETER 3Z5726401M 3Z5-72640-1 FOR P TYPE $0.00 1 Sold Out View More Details
(10) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 FOR P TYPE $3.27 3
(11) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR P TYPE $0.00 1 Sold Out View More Details
(12) METER DAMPER 3B7726560M 3B7-72656-0 FOR P TYPE $3.27 1
(13) FITTING PLATE 3B7726610M 3B7-72661-0 FOR P TYPE $25.33 1
(14) NUT 9302030500M 930203-0500 FOR P TYPE $0.60 2
(15) SPRING WASHER 9413030500M 941303-0500 FOR P TYPE $0.90 2
(16) METER LEAD WIRE 3T5725370M 3T5-72537-0 FOR P TYPE $201.55 1
(17) TRIM METER KIT 3GF725710M 3GF725710M $98.67 1
(17) TRIM METER KIT 3GL725710M 3GL725710M $98.67 1
(17) TRIM METER 3T1725710M 3F3-72574-1 FOR P TYPE $0.00 1 Sold Out View More Details
(18) METER BULB 12V-1.7W 3T1726590M 3T1-72659-0 FOR P TYPE $3.85 1 Sold Out View More Details
(19) METER BULB CAP 3T1726530M 3T1-72653-0 FOR P TYPE $2.40 1 Sold Out View More Details
(20) METER DAMPER 3B7726550M 3B7-72655-0 FOR P TYPE $2.68 1
(21) FITTING PLATE 3T1726650M 3T1-72665-0 FOR P TYPE $12.61 1 Sold Out View More Details
(22) SPRING WASHER 9413030400M 941303-0400 FOR P TYPE $0.90 2
(23) NUT 9302030400M 930203-0400 FOR P TYPE $0.00 2 Sold Out View More Details
(24) TWIN REMOTE CONTROL BOX KIT 3A3813010M 3A3-81301-0 $52.86 1
(25) STEERING HOOK PLATE 3C8848300M 3C8-84830-0 $33.06 1
(26) STUD BOLT 9152030816M 915203-0816 $9.00 2
(27) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 2
(28) WASHER 9401030600M 940103-0600 $0.70 2
(29) CREVICE ASSY 3C8Q849600 3C8Q84960-0 $303.28 1
(30) COLLAR 9.6-13-20.5 3C8849620M 3C8-84962-0 $6.39 1
(31) WASHER 9.6-18-2 353849160M 353-84916-0 $1.45 2
(32) BOLT 3/8-43 3C8849630M 3C8-84963-0 $4.83 1
(33) NYLON NUT 3/8 353849180M 353-84918-0 $6.59 2
(34) BOLT 3/8-35 3C8849640M 3C8-84964-0 $18.38 1
