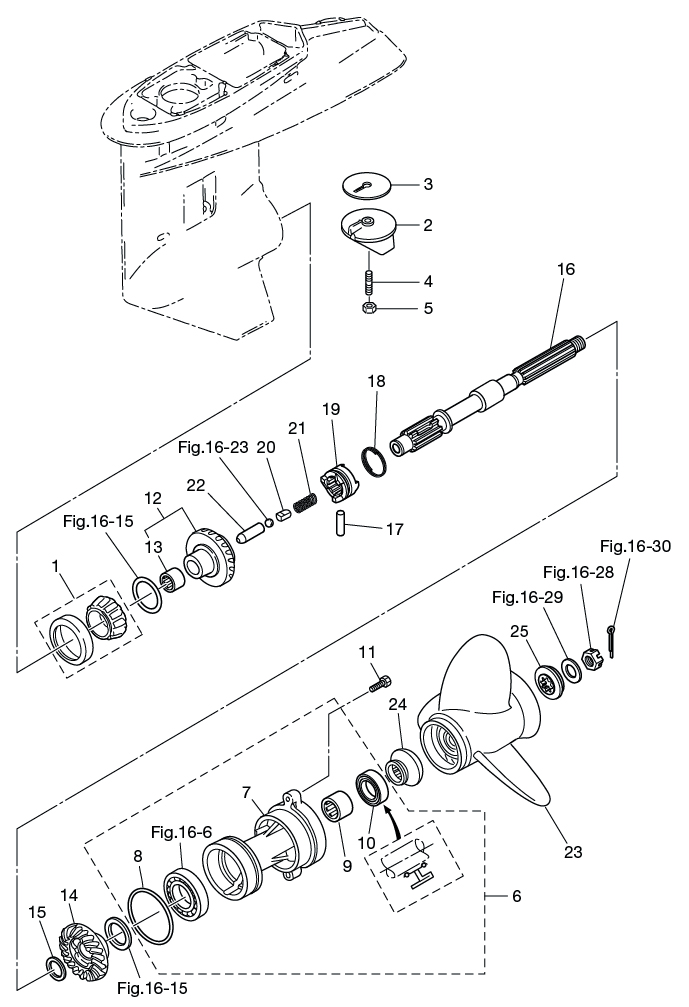

17. GEAR CASE (PROPELLER SHAFT) FOR MWD50 BIGFOOT

Click Here for Microfiche Usage Tip
(1) TAPERED ROLLER BEARING 32007JR(2) TRIM TAB(3) TRIM TAB GASKET(4) STUD BOLT(5) NYLON NUT 8P1.25(6) PROPELLER SHAFT HOUSING ASSY(7) PROPELLER SHAFT HOUSING(8) O-RING 3.5-74.6(9) ROLLER BEARING PROPELLER SHAFT(10) OIL SEAL 25-38-10(11) PRE-COATED BOLT 8-30(12) BEVEL GEAR ASSY (A)(13) ROLLER BEARING 202720(14) BEVEL GEAR C(15) WASHER 22.1-28-3.0(15) WASHER 22.1-28-2.75(15) WASHER 22.1-28-2.5(16) PROPELLER SHAFT(17) PIN CLUTCH(18) SNAP PIN CLUTCH(19) CLUTCH(20) SPRING RETAINER CLUTCH(21) SPRING CLUTCH(22) PUSH ROD CLUTCH(23) PROPELLER ASSY 12"(23) PROPELLER ASSY 9"(23) PROPELLER ASSY 10"(23) PROPELLER ASSY 11"(23) PROPELLER ASSY 13"(23) PROPELLER ASSY 14"(23) PROPELLER ASSY 15"(23) PROPELLER ASSY 16.5"(23) PROPELLER ASSY 17.5"(24) THRUST HOLDER A PROPELLER(25) STOPPER A PROPELLER



Parts List
2010 :: 40 HP :: TLDI Nissan NSD40B2 :: GEAR CASE (PROPELLER SHAFT) FOR MWD50 BIGFOOT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TAPERED ROLLER BEARING 32007JR 3F3602150M 3F3-60215-0 $50.65 1
(2) TRIM TAB 3B7602171M 3B7-60217-1 $26.40 1
(3) TRIM TAB 3B7602190M 3B7-60219-0 $3.40 1
(4) STUD BOLT 9153030825M 915303-0825 $3.51 1
(5) NYLON NUT 8P-1.25 9304030800M 930446-0800 $1.99 1
(6) PROPELLER SHAFT HOUSING ASSY 3A3Q601000 3A3Q60100-0 $94.13 1
(7) PROPELLER SHAFT HOUSING 3A3Q601010 3A3Q60101-0 $86.23 1
(8) O-RING 3.5-74.6 353601030M 353-60103-0 $4.38 1
(9) ROLLER BEARING 25-33-30 353602110M 353-60211-0 $33.06 1
(10) OIL SEAL 25-38-10 353601110M 353-60111-0 $8.80 1
(11) PRE-COATED BOLT 8-30 3C7601081M 3C7-60108-1 $5.92 2
(12) BEVEL GEAR ASSY (A) 3F3640103M 3F3-64010-3 $220.25 1
(13) ROLLER BEARING 202720 345640110M 345-64011-0 $17.62 1
(14) BEVEL GEAR C 3F3640300M 3F3-64030-0 $187.23 1
(15) WASHER T=3.0 353640320M 353-64032-0 $7.89 0
(15) WASHER T=2.75 353640340M 353-64034-0 $0.00 0 Sold Out View More Details
(15) WASHER T=2.5 353640350M 353-64035-0 $0.00 0 Sold Out View More Details
(16) PROPELLER SHAFT 3A3642110M 3A3-64211-0 $386.75 1
(17) PIN 353642181M 353-64218-1 $2.35 1
(18) SNAP 353642192M 353-64219-2 $2.19 1
(19) CLUTCH 3F3642150M 3F3-64215-0 $169.58 1
(20) SPRING RETAINER 3A3642220M 3A3-64222-0 $9.89 1
(21) CLUTCH SPRING 346642210M 346-64221-0 $1.61 1
(22) PUSH ROD 353642231M 353-64223-1 $11.02 1
(23) PROPELLER ASSY (12) 353B641040 353B64104-0 STD $0.00 1 Sold Out View More Details
(23) PROPELLER ASSY (9) 353B641010 353B64101-0 OPT $0.00 1 Sold Out View More Details
(23) PROPELLER ASSY (10) 353B641020 353B64102-0 OPT $0.00 1 Sold Out View More Details
(23) PROPELLER ASSY (11) 353B641030 353B64103-0 OPT $0.00 1 Sold Out View More Details
(23) PROPELLER ASSY (13) 353B641050 353B64105-0 OPT $0.00 1 Sold Out View More Details
(23) PROPELLER ASSY (14) 353B641060 353B64106-0 OPT $0.00 1 Sold Out View More Details
(23) PROPELLER ASSY (15) 353B641070 353B64107-0 OPT $0.00 1 Sold Out View More Details
(23) PROPELLER ASSY (16.5) 353B641080 353B64108-0 OPT $0.00 1 Sold Out View More Details
(23) PROPELLER ASSY (17.5) 353B641090 353B64109-0 OPT $0.00 1 Sold Out View More Details
(24) THRUST HOLDER 353642310M 353-64231-0 $85.19 1
(25) STOPPER 353642330M 353-64233-0 $9.89 1
