9. MAGNETO

Click Here for Microfiche Usage Tip

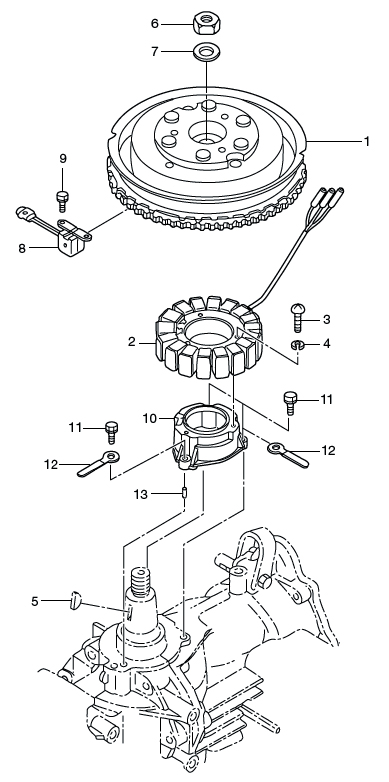

(1) FLYWHEEL (W/RING GEAR)(2) ALTERNATOR ASSY(3) SCREW(4) SPRING WASHER(5) KEY MAGNETO(6) NUT 18P1.5(7) WASHER 19-34-3(8) PICK-UP COIL(9) BOLT(10) COIL BRACKET(11) BOLT(11) BOLT(12) CLAMP 6.5-47.5P(12) CLAMP 6.5-47.5P(13) DOWEL PIN 4-10



Parts List
2010 :: 40 HP :: TLDI Nissan NSD40B2 :: MAGNETO
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) FLYWHEEL 3T5061910M 3T5-06191-0 F4T601-71 $636.01 1
(2) ALTERNATOR 3Y9061230M 3Y9-06123-0 $701.21 1
(3) SCREW 9215030635M 921503-0635 $1.27 3
(4) SPRING WASHER 9413030600M 941303-0600 $0.84 3
(5) KEY MAGNETO 334001310M 334-00131-0 $3.39 1
(6) NUT 18 P1.5 353001320M 353-00132-0 $4.40 1
(7) WASHER 19 - 34 - 3 353001330M 353-00133-0 $3.00 1
(8) PICK-UP COIL 3T5061450M 3T5-06145-0 CRANK POSITION SENSOR $54.80 1
(9) BOLT 9101036512M 9101036512M $0.90 2
(10) COIL BRACKET 3T5060081M 3T5-06008-1 $55.64 1 Sold Out View More Details
(11) BOLT 9101037625M 9101037625M $1.29 3
(12) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 2
(13) KNOCK 4 -10 334650120M 334-65012-0 $3.00 2
