2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

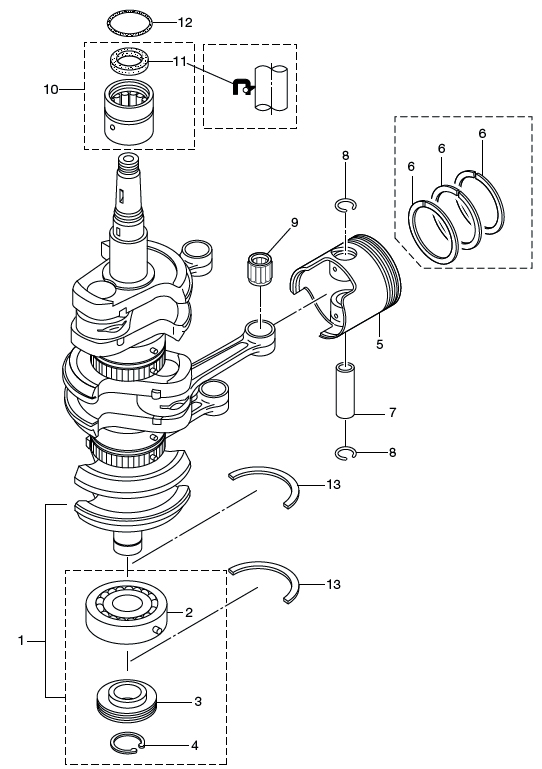

(1) CRANKSHAFT ASSY (W/GEAR)(2) MAIN BEARING 6305(3) OIL PUMP DRIVE GEAR(4) C-RING D=25(5) PISTON (STD)(5) PISTON (0.5 O/S)(6) PISTON RING (STD)(6) PISTON RING (STD)(6) PISTON RING (STD)(6) PISTON RING (0.5 O/S)(6) PISTON RING (0.5 O/S)(6) PISTON RING (0.5 O/S)(7) PISTON PIN(8) PISTON PIN CLIP(8) PISTON PIN CLIP(9) ROLLER BEARING 17-21-27(10) MAIN BEARING UPPER(11) OIL SEAL 36-46-6(12) O-RING 2.4-44.7(13) THRUST PLATE CRANKSHAFT(13) THRUST PLATE CRANKSHAFT



Parts List
2010 :: 40 HP :: TLDI Nissan NSD40B2 :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT ASSY W/GEAR 3T5000501M 3T5-00050-0 $1,409.90 1
(2) BEARING 6305 3J2001140M 3J2-00114-0 $28.76 1
(3) OIL PUMP DRIVE GEAR 3C8090600M 3C8-09060-0 $132.17 1
(4) C-RING D=25 9451072500M 945107-2500 $1.10 1
(5) PISTON (STD) 3GF000010M 3GF-00001-0 STD $115.06 3
(5) PISTON (0.5 O/S) 3GF000040M 3GF-00004-0 OPT $132.46 3
(6) PISTON RING 1ST ( STD ) 3T5000110M 3T5-00011-0 STD $11.78 9
(6) PISTON RING 1ST ( 0.5MM O/S) 3T5000140M 3T5-00014-0 OPT $16.79 9
(6) PISTON RING 1ST ( STD ) 3T5000110M 3T5-00011-0 STD $11.78 9
(6) PISTON RING 1ST ( 0.5MM O/S) 3T5000140M 3T5-00014-0 OPT $16.79 9
(7) PISTON PIN 3C8000211M 3C8-00021-0 $8.80 3
(8) PISTON PIN CLIP 334000241M 334-00024-1 $1.20 6
(9) NEEDLE BEARING 17-21-27 345000420M 345-00042-0 $11.48 3
(10) MAIN BEARING UPPER 3T5001130M 3T5-00113-0 $88.51 1
(11) OIL SEAL 36-46-6 3T5001210M 3T5-00121-0 $39.57 1
(12) O-RING 2.4-44.7 353001080M 353-00108-0 $3.00 1
(13) CRANK SHAFT THRUST PLATE 346001150M 346-00115-0 $2.74 2
