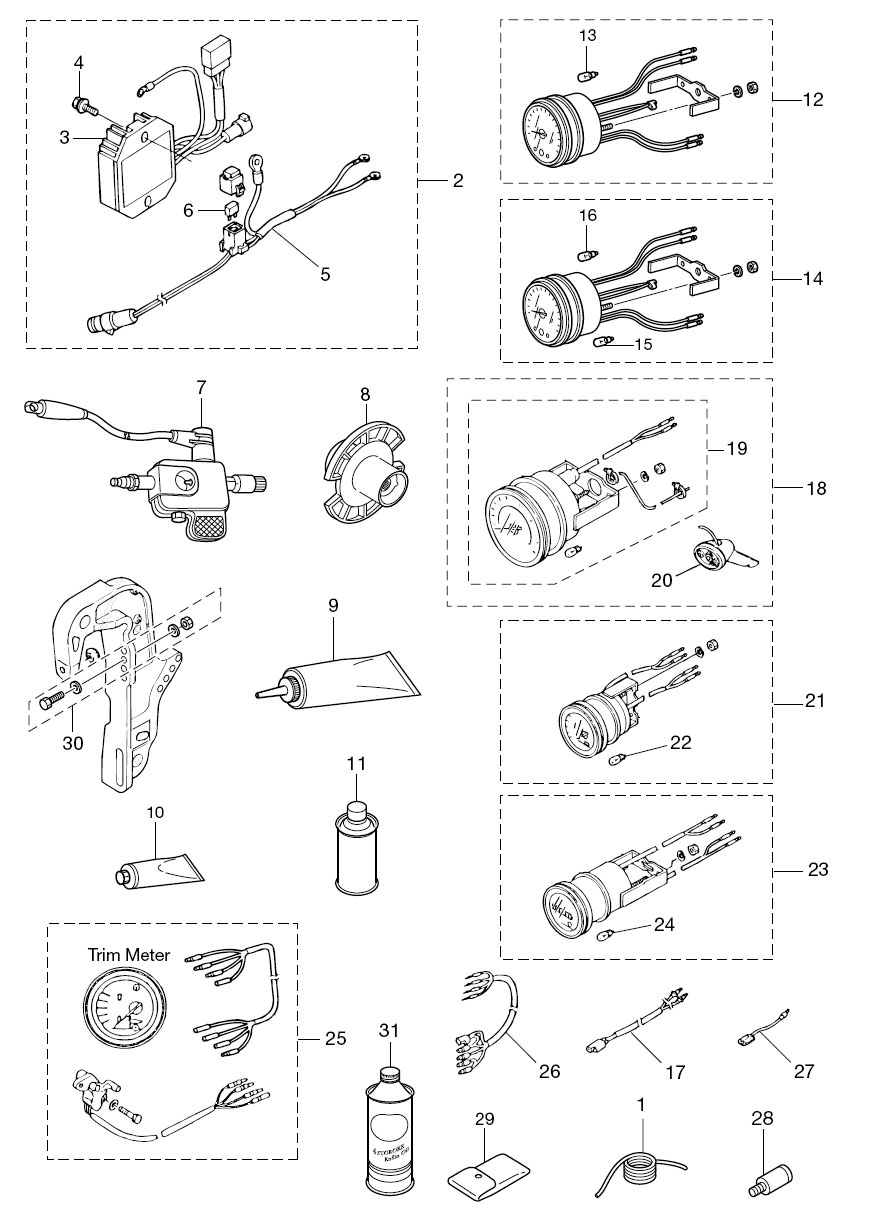

24. OPTIONAL PARTS (ACCESSORIES)

Click Here for Microfiche Usage Tip
(1) SAFETY ROPE 6-1600MM(2) RECTIFIER KIT(3) RECTIFIER COMPLETE(4) BOLT(5) EXTENSION CORD L=3000(6) FUSE 20A(7) SPARK TESTER (PET-4000)(8) TEST PROPELLER(9) TOHATSU GEAR LUBE (12-QUARTS)(9) TOHATSU GEAR LUBE (5 GAL PAIL)(9) TOHATSU GEAR LUBE (16 GAL DRUM)(9) NISSAN GEAR LUBE (12-QUARTS)(9) NISSAN GEAR LUBE (5 GAL PAIL)(9) NISSAN GEAR LUBE (16 GAL DRUM)(10) TOHATSU GREASE (10-14 OZ. CARTRIDGE)(10) NISSAN GREASE (10-14 OZ. CARTRIDGE)(11) TOUCH-UP PAINT (AQUAMARINE BLUE)(12) TACHOMETER (BLACK)(12) TACHOMETER (WHITE)(12) TACHOMETER ASSY(13) METER BULB 12V-1.8W(14) TACHOMETER (BLACK)(14) TACHOMETER (WHITE)(14) TACHOMETER W/OIL LAMP(15) OIL BULB 12V-1.7W(16) METER BULB 12V-1.8W(17) TACHOMETER LEAD WIRE L=6000(18) SPEEDOMETER (BLACK)(18) SPEEDOMETER (WHITE)(18) SPEEDOMETER KIT (50MPH)(18) SPEEDOMETER KIT (75MPH)(19) SPEEDOMETER ASSY (50MPH)(19) SPEEDOMETER ASSY (75MPH)(20) SPEEDOMETER SENSOR(21) VOLTMETER (BLACK)(21) VOLTMETER (WHITE)(21) VOLTMETER ASSY(22) METER BULB 12V-1.7W(23) HOUR METER (BLACK)(23) HOUR METER (WHITE)(23) HOUR METER ASSY(24) METER BULB 12V-1.7W(25) TRIM METER KIT(26) METER LEAD WIRE L=2000(27) ASSIST CORD (BLUE) 200MM(27) ASSIST CORD (BLACK) 200MM(27) ASSIST CORD (RED) 200MM(28) FLUSHING PLUG(29) TOOL KIT(30) RIGGING BOLT SET(30) RIGGING BOLT SET(31) TOHATSU 4-CYCLE FCW OIL (12-QUARTS)(31) TOHATSU 4-CYCLE FCW OIL (6-GALLONS)(31) NISSAN 4-CYCLE FCW OIL (12-QUARTS)(31) NISSAN 4-CYCLE FCW OIL (6-GALLONS)



Parts List
2010 :: 25 HP :: 4 Stroke Tohatsu MFS25B :: OPTIONAL PARTS (ACCESSORIES)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ROPE 3B7722010M 3B7-72201-0 $5.07 1
(2) RECTIFIER KIT 3AC761601M 3AC-76160-1 FOR MF TYPE $191.46 1
(3) RECTIFIER COMPLETE 3AC760651M 3AC-76065-1 $127.36 1
(4) BOLT 9101035625M 910103-5625 FOR RECTIFIER $1.47 2
(5) EXTENSION CORD L=3000 3AC761610M 3AC-76161-0 $70.66 1
(6) FUSE (20A) 3T5762470M 3T5-76247-0 $2.99 2
(7) SPARK TESTER 3F3725400M 3F3-72540-0 $169.88 1
(8) TEST PROPELLER 3R0641110M 3R0-64111-0 $312.92 1
(9) TOHATSU GEAR LUBE (12-QUARTS) 332823100M 332823100M QUARTS - 12 PER CASE $140.48 1
(9) TOHATSU GEAR LUBE (5 GAL PAIL) 332823120M 332823120M 5 GALLON PAIL $200.25 1
(9) TOHATSU GEAR LUBE (16 GAL DRUM) 332823140M 332823140M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(9) NISSAN GEAR LUBE (12-QUARTS) 332823090M 332823090M QUARTS - 12 PER CASE $140.48 1
(9) NISSAN GEAR LUBE (5 GAL PAIL) 332823110M 332823110M 5 GALLON PAIL $200.25 1
(9) NISSAN GEAR LUBE (16 GAL DRUM) 332823130M 332823130M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(10) TOHATSU GREASE (10-14 OZ. CARTRIDGE) 332823180M 332823180M 14OZ. CARTRIDGES - 10 PER CASE $89.08 1
(10) NISSAN GREASE (10-14 OZ. CARTRIDGE) 332823170M 332823170M 14OZ. CARTRIDGES - 10 PER CASE $89.08 1
(11) TOUCH-UP PAINT (AQUAMARINE BLUE) 3AC723260M 3AC-72326-0 N.A.F.N. $36.56 1
(12) TACHOMETER ASSY (BLACK) 3AC726400M 3AC726400M $118.82 1
(12) TACHOMETER ASSY (WHITE) 3AD726400M 3AD726400M $118.82 1
(12) TACHOMETER (WITHOUT OIL LAMP) 3B7725302M 3B7-72530-1 FOR MF & EF $0.00 1 Sold Out View More Details
(13) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR MF & EF $0.00 1 Sold Out View More Details
(14) TACHOMETER ASSY (BLACK) 3AC726400M 3AC726400M $118.82 1
(14) TACHOMETER ASSY (WHITE) 3AD726400M 3AD726400M $118.82 1
(14) TACHOMETER (WITH OIL LAMP) 3N8726401M 3B7-72640-1 FOR EP & EPT $0.00 1 Sold Out View More Details
(15) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 FOR EP & EPT $3.27 1
(16) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR EP & EPT $0.00 1 Sold Out View More Details
(17) TACHOMETER LEAD CABLE 361725390M 361-72539-0 FOR MF & EF $50.65 1
(18) SPEEDOMETER KIT (60MPH) 3GF726720M 3GF726720M $178.39 1
(18) SPEEDOMETER KIT (60MPH) 3GL726720M 3GL726720M $178.39 1
(18) SPEEDOMETER 50MPH KIT 3E0725220M 3E0-72522-0 50MPH $0.00 1 Sold Out View More Details
(18) SPEEDOMETER 75MPH KIT 3E0726440M 3E0-72644-0 75MPH $0.00 1 Sold Out View More Details
(19) SPEEDOMETER 50MPH 3E0726480M 3E0-72648-0 50MPH $0.00 1 Sold Out View More Details
(19) SPEEDOMETER 75MPH 3E0726490M 3E0-72649-0 75MPH $0.00 1 Sold Out View More Details
(20) SPEEDOMETER SENDER 3B7726430M 3B7-72643-0 $52.86 1 Sold Out View More Details
(21) VOLTMETER ASSY 3GF725290M 3GF725290M $34.36 1
(21) VOLTMETER ASSY 3GL725290M 3GL725290M $34.36 1
(21) VOLTMETER 3E0725290M 3E0-72529-0 $0.00 1 Sold Out View More Details
(22) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(23) HOUR METER ASSY 3GF725240M 3GF725240M $66.93 1
(23) HOUR METER ASSY 3GL725240M 3GL725240M $66.93 1
(23) HOURMETER 3E0725240M 3E0-72524-0 $0.00 1 Sold Out View More Details
(24) METER BULB 12V-1.7W 3B7726570M 3B7-72657-0 $0.00 1 Sold Out View More Details
(25) TRIM METER KIT 3R0725252M 3R0-72525-2 $0.00 1 Sold Out View More Details
(26) LEAD WIRE METER 3R0725371M 3R0-72537-1 OPT FOR EP & EPT $65.87 1
(27) ASSIST CORD (BLUE) 353725470M 353-72547-0 $5.92 1
(27) ASSIST CORD (BLACK) 353725480M 353-72548-0 $5.92 1
(27) ASSIST CORD (RED) 353725460M 353-72546-0 $5.92 1
(28) FLUSHING ATTACHMENT 336600070M 336-60007-0 $8.05 1
(29) TOOL 3BJ721000M 3H6-72100-0 $28.06 1
(30) RIGGING BOLT SET 3AC721200M 3AC-72120-0 FOR MANUAL TILT $10.07 1
(30) RIGGING BOLT SET 3AD721200M 3AD-72120-0 FOR PTT/GAS ASSIST $55.50 1
(31) TOHATSU 4-CYCLE FCW OIL (12-QUARTS) 332823080M 332823080M QUARTS - 12 PER CASE $124.06 1 Sold Out View More Details
(31) TOHATSU 4-CYCLE FCW OIL (6-GALLONS) 332823050M 332823050M GALLONS - 6 PER CASE $145.62 1
(31) NISSAN 4-CYCLE FCW OIL (12-QUARTS) 332823070M 332823070M QUARTS - 12 PER CASE $124.06 1 Sold Out View More Details
(31) NISSAN 4-CYCLE FCW OIL (6-GALLONS) 332823020M 332823020M GALLONS - 6 PER CASE $145.62 1
