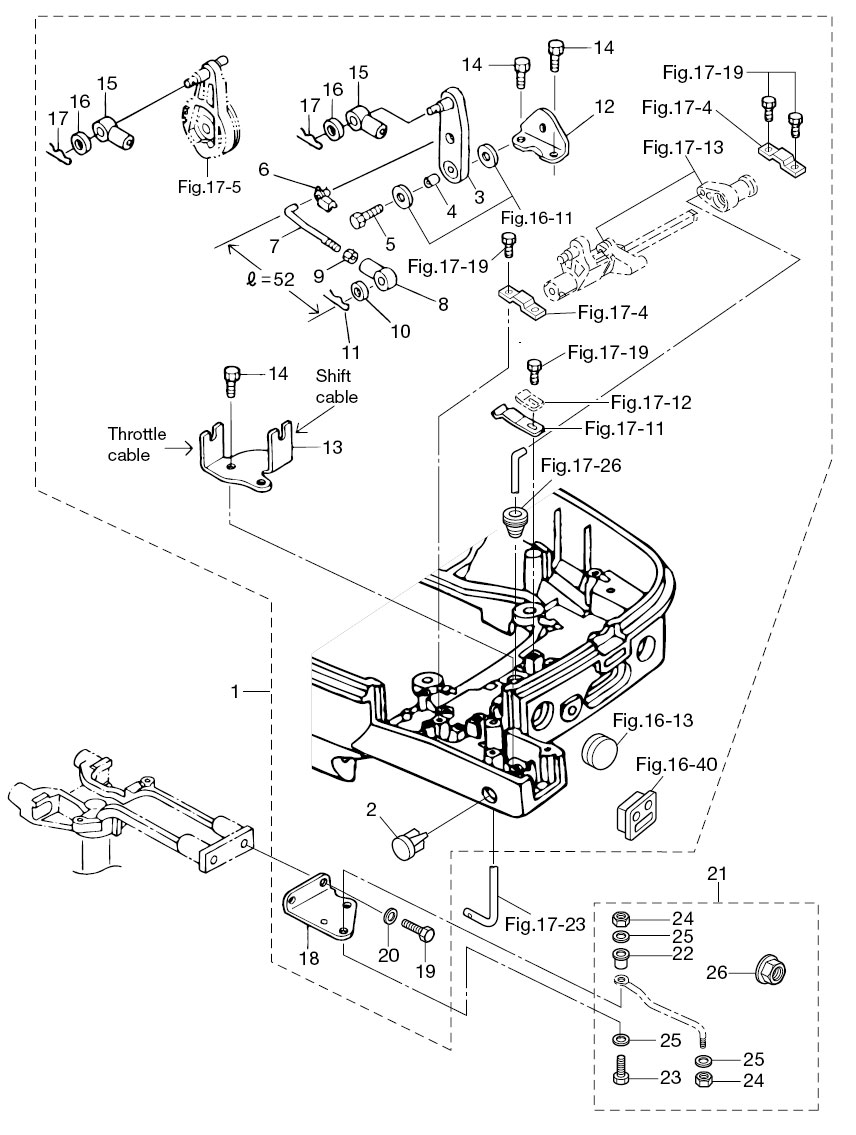

18. REMOTE CONTROL

Click Here for Microfiche Usage Tip
(1) REMOTE CONTROL FITTING ASSY(2) PLUG(3) SHIFT ARM (REMOTE CONTROL)(4) COLLAR 6.2-9-9.3(5) BOLT(6) ROD SNAP 5-3(7) SHIFT LEVER ROD 4.5-40.5(8) CABLE JOINT(9) NUT(10) WASHER 8.5-18-1.6(11) SNAP PIN D=8(12) BRACKET SHIFT ARM(13) CABLE CLIP ASSY(14) BOLT(14) BOLT(14) BOLT(15) CABLE JOINT(15) CABLE JOINT(16) WASHER 8.5-18-1.6(16) WASHER 8.5-18-1.6(17) SNAP PIN D=8(17) SNAP PIN D=8(18) STEERING HOOK PLATE(19) BOLT(20) WASHER(21) DRAG LINK ASSY H(22) SPACER DRAG LINK ASSY H(23) BOLT 3/8-50(24) NYLON NUT 3/8(24) NYLON NUT 3/8(25) WASHER 9.6-18-2(25) WASHER 9.6-18-2(25) WASHER 9.6-18-2(26) SEAL RING DRAG LINK



Parts List
2010 :: 25 HP :: 4 Stroke Tohatsu MFS25B :: REMOTE CONTROL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) REMOTE CONTROL FITTING ASSY 3AC838801M 3AC-83880-0 $73.09 1
(2) PLUG 3B7010460M 3B7-01046-0 FOR EP & EPT $1.50 1
(3) SHIFT ARM 3AC661220M 3AC-66122-0 FOR EP & EPT $4.10 1
(4) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 FOR EP & EPT $4.35 1
(5) BOLT 9101E30620M 9101E3-0620 FOR EP & EPT $1.11 1 Sold Out View More Details
(6) ROD SNAP 5-3 3C8637330M 3C8-63733-0 FOR EP & EPT $1.56 1
(7) LINK 4.5 - 40.5 3R0637090M 3R0-63709-0 FOR EP & EPT $2.25 1
(8) CABLE JOINT 3R0837150M 3R0-83715-0 FOR EP & EPT $2.58 1
(9) NUT 9301030500M 930103-0500 FOR EP & EPT $0.92 1
(10) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 FOR EP & EPT $2.56 1
(11) SNAP PIN D=8 9516030800M 951603-0800 FOR EP & EPT $0.75 1
(12) BRACKET SHIFT ARM 3R0661260M 3R0-66126-0 FOR EP & EPT $12.33 1
(13) BRACKET CABLE 3R0838200M 3R0-83820-0 FOR EP & EPT $8.69 1
(14) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR EP & EPT $1.22 3
(15) CABLE JOINT 3B7837151M 3B7-83715-1 FOR EP & EPT $5.16 2
(16) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.56 2
(17) SNAP PIN D=8 9516030800M 951603-0800 $0.75 2
(18) STEERING HOOK PLATE 3R0838300M 3R0-83830-0 FOR EP & EPT $11.07 1
(19) BOLT 9101031030M 910103-1030 FOR EP & EPT $2.68 2 Sold Out View More Details
(20) WASHER 9401031000M 940103-1000 FOR EP & EPT $1.61 2
(21) DRAG LINK H ASSY 3E0849050M 3E0-84905-0 FOR EP & EPT $164.98 1
(22) SPACER 3E0849140M 3E0-84914-0 FOR EP & EPT $7.83 1
(23) BOLT 3/8 - 50 3E0849170M 3E0-84917-0 FOR EP & EPT $12.08 1
(24) NYLON NUT 3/8 353849180M 353-84918-0 FOR EP & EPT $7.05 2
(25) WASHER 9.6-18-2 353849160M 353-84916-0 FOR EP & EPT $1.56 3
(26) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 FOR EP & EPT $2.74 1
