12. BRACKET (MANUAL TILT)

Click Here for Microfiche Usage Tip

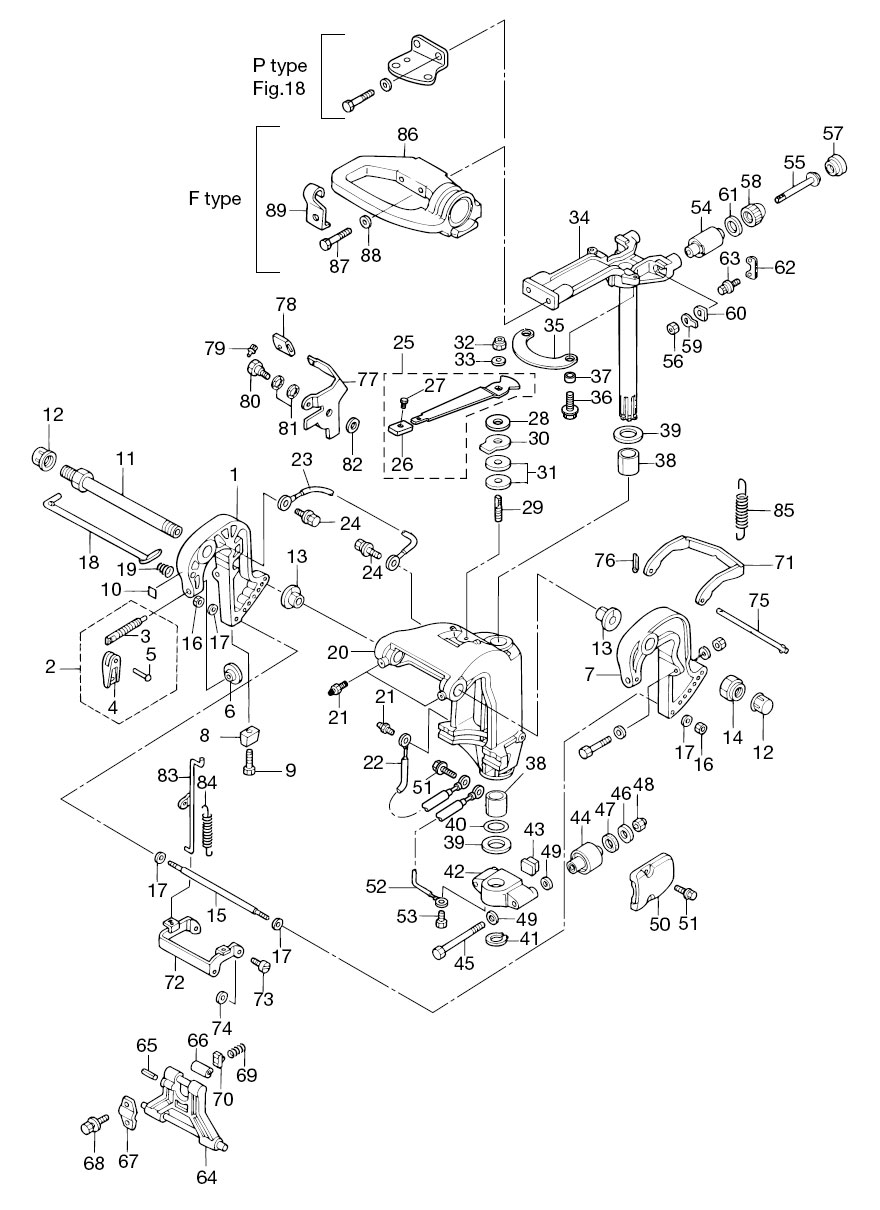

(1) CLAMP BRACKET (R)(2) CLAMP SCREW ASSY(2) CLAMP SCREW ASSY(3) CLAMP SCREW(3) CLAMP SCREW(4) CLAMP SCREW HANDLE(4) CLAMP SCREW HANDLE(5) RIVET 3-22(5) RIVET 3-22(6) CLAMP SCREW PAD(6) CLAMP SCREW PAD(7) CLAMP BRACKET (L)(8) ANODE(9) BOLT(10) CO-PILOT DECAL(11) SWIVEL BRACKET SHAFT ASSY(12) CAP NUT BRACKET BOLT(12) CAP NUT BRACKET BOLT(13) BUSHING 26-32(13) BUSHING 26-32(14) NYLON NUT 7/8(15) DISTANCE PIECE(16) NUT(16) NUT(17) WASHER(17) WASHER(17) WASHER(17) WASHER(18) THRUST ROD(19) THRUST ROD SPRING(20) SWIVEL BRACKET(21) GREASE FITTING(21) GREASE FITTING(22) GROUND (EARTH WIRE) L=210(23) GROUND (EARTH WIRE) L=130(24) BOLT W/WASHER(24) BOLT W/WASHER(25) FRICTION LEVER ASSY(26) GRIP CO-PILOT HANDLE(27) STOPPER REVERSE LOCK LEVER GRIP(28) WASHER 8.1-20-0.8(29) BOLT CO-PILOT(30) WASHER CO-PILOT(31) DISC CO-PILOT(32) NYLON NUT 8P1.25(33) WASHER(34) STEERING SHAFT ASSY(35) PLATE CO-PILOT(36) BOLT(37) COLLAR(38) BUSHING BRACKET SHAFT(38) BUSHING BRACKET SHAFT(39) THRUST PLATE (UPPER)(39) THRUST PLATE (UPPER)(40) O-RING BRACKET SHAFT(41) C-RING D=28(42) MOUNT BRACKET(43) DAMPER (LOWER)(44) RUBBER MOUNT (LOWER)(45) BOLT MOUNT RUBBER LOWER(46) WASHER 13-34-3(47) DAMPER RUBBER(48) NYLON NUT 12P-1.25(49) WASHER(49) WASHER(50) MOUNT HOLDING PLATE (LOWER)(51) BOLT(51) BOLT(52) GROUND (EARTH WIRE) L=110(53) BOLT W/WASHER(54) RUBBER MOUNT (UPPER)(55) BOLT MOUNT RUBBER(56) NUT 10P1.5(57) DAMPER (UPPER)(58) DAMPER (UPPER)(59) LOCK PLATE MOUNT RUBBER(60) WASHER MOUNT RUBBER(61) LOCK PLATE UPPER(62) RUBBER MOUNT RETAINER(63) BOLT(64) TILT STOPPER(65) SPRING PIN(66) BUSHING 10.2-12-29.5(67) SETTING PLATE TILT STOPPER(68) BOLT(69) FRICTION SPRING(70) SETTING PIECE TILT STOPPER(71) REVERSE LOCK(72) REVERSE LOCK ARM(73) PIVOT BOLT(74) WASHER 6-16-1.5(75) REVERSE LOCK ROD(76) SPLIT PIN 2-12(77) REVERSE LOCK LEVER(78) REVERSE LOCK LEVER GRIP(79) STOPPER REVERSE LOCK LEVER GRIP(80) REVERSE LOCK LEVER SHAFT(81) WAVE WASHER D=8(82) WASHER 6-16-1.5(83) REVERSE LOCK LINK(84) REVERSE LOCK LEVER SPRING(85) REVERSE LOCK SPRING (L)(85) REVERSE LOCK SPRING (S)(86) STEERING BRACKET(87) BOLT(88) WASHER(89) CLAMP THROTTLE



Parts List
2010 :: 25 HP :: 4 Stroke Tohatsu MFS25B :: BRACKET (MANUAL TILT)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CLAMP BRACKET (R) 3AEQ621122 3AEQ62112-2 STARBOARD $84.79 1
(2) CLAMP SCREW ASSY 3AAQ621000 3AAQ62100-0 R $56.36 1
(2) CLAMP SCREW ASSY 3AAQ621000 3AAQ62100-0 L $56.36 1
(3) CLAMP SCREW 3AA621030M 3AA-62103-0 R $14.84 1
(3) CLAMP SCREW 3AA621030M 3AA-62103-0 L $14.84 1
(4) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 R $7.57 1
(4) CLAMP SCREW HANDLE 332Q621021 332Q62102-1 L $7.57 1
(5) RIVET 3-22 3C8621042M 3C8-62104-2 R $0.92 1
(5) RIVET 3-22 3C8621042M 3C8-62104-2 L $0.92 1
(6) CLAMP SCREW PAD 332621010M 332-62101-0 R $3.36 1
(6) CLAMP SCREW PAD 332621010M 332-62101-0 L $3.36 1
(7) CLAMP BRACKET (L) 3AEQ621132 3AEQ62113-2 PORT $84.79 1
(8) ANODE 3B7602181M 3B7-60218-1 $13.25 1
(9) BOLT 9101035630M 910113-5630 $1.15 1
(10) LABEL CO-PILOT 3H8720490M 3H8-72049-0 FOR MF & EF $2.31 1
(11) SWIVEL BRACKET SHAFT 3AC621910M 346-62191-0 BRACKET BOLT $41.18 1
(12) CAP BRACKET BOLT 346621270M 346-62127-0 $2.31 2
(13) BUSHING BRACKET BOLT 349621260M 349-62126-0 $4.83 2
(14) NYLON NUT 7/8 346621241M 346-62124-0 $21.14 1
(15) DISTANCE PIECE 346621171M 346-62117-1 $16.63 1
(16) NUT 9301E30600M 9301E3-0600 $0.52 2 Sold Out View More Details
(17) WASHER 9401E30600M 9401E3-0600 $0.00 4 Sold Out View More Details
(18) THRUST ROD 345621211M 345-62121-1 $19.53 1
(19) SPRING THRUST ROD 345621222M 345-62122-2 $2.19 1 Sold Out View More Details
(20) SWIVEL BRACKET 3AEQ623102 3AEQ62310-2 $256.16 1
(21) GREASE FITTING 344671770M 344-67177-0 $2.56 3 Sold Out View More Details
(22) GROUND CABLE 3C8623961M 3C8-62396-0 $4.56 1
(23) GROUND CABLE 398623961M 398-62396-1 $5.75 1 Sold Out View More Details
(24) BOLT 9101035612M 910103-5612 $1.07 2
(25) FRICTION LEVER ASSY 3AC624500M 3AC-62450-0 FOR MF & EF $13.34 1
(26) GRIP 3AC630120M 3AC-63012-0 FOR MF & EF $7.05 1
(27) STOPPER LEVER GRIP 346663340M 346-66334-0 FOR MF & EF $1.27 1
(28) WASHER 8.1-20-0.8 3R3624430M 3R3-62443-0 FOR MF & EF $1.48 1
(29) CO-PILOT BOLT 3R3624450M 3R3-62445-0 FOR MF & EF $6.74 1
(30) WASHER CO-PILOT 3R3624481M 3R3-62448-1 FOR MF & EF $5.59 1
(31) CO-PILOT DISC 3R3624490M 3R3-62449-0 FOR MF & EF $7.91 2
(32) NYLON NUT 8P-1.25 9304030800M 930446-0800 FOR MF & EF $1.99 1
(33) WASHER 9401E30800M 9401E3-0800 FOR MF & EF $0.65 1
(34) STEERING SHAFT ASSY 3R0Q620101 3R0Q62010-0 $271.86 1
(35) PLATE 3AC624470M 3AC-62447-0 FOR MF & EF $5.44 1
(36) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR MF & EF $1.15 2
(37) COLLAR 6.5-10.7-6.5 3AC636190M 3AC-63619-0 FOR MF & EF $2.74 2
(38) BUSHING 30 - 36 - 41 353624170M 353-62417-0 $5.98 2 Sold Out View More Details
(39) THRUST PLATE 353624231M 353624230M $3.92 2
(40) O-RING 3.5 - 29.7 353624150M 353-62415-0 $2.53 1
(41) C-RING D=28 9451032800M 945103-2800 $1.06 1
(42) MOUNT BRACKET 3AEQ614111 3AEQ61411-1 $123.66 1
(43) DAMPER RUBBER 3C8613360M 3C8-61336-0 $5.69 1
(44) LOWER MOUNT RUBBER 3C8613020M 3C8-61302-0 $46.05 2
(45) BOLT LOWER MOUNT RUBBER 3R0613210M 3R0-61321-0 $16.93 2
(46) WASHER 13 - 34 - 3 353613340M 353-61334-0 $3.16 2
(47) DAMPER RUBBER 21- 36 - 5 3C7613380M 3C7-61338-0 $12.88 2
(48) NYLON NUT 12 P1.25 3R0613240M 3R0-61324-0 $6.47 2 Sold Out View More Details
(49) WASHER 9402E31200M 940203-1200 $2.10 4
(50) MOUNT HOLDING PLATE (LOWER) 3R0Q613420 3R0Q61342-0 RUBBER MOUNT CAP (LOWER) $28.48 2
(51) BOLT 9101E35620M 910113-5620 $1.30 4
(52) GROUNG CABLE 3A3623961M 3A3-62396-0 $17.85 1
(53) BOLT 9101035612M 910103-5612 $1.07 1
(54) RUBBER MOUNT (UPPER) 3R0613011M 3R0-61301-0 $26.54 2
(55) BOLT MOUNT RUBBER 3R0613070M 3R0-61307-0 $10.64 2
(56) NUT 9301031000M 930103-1000 $1.59 2
(57) UPPER DAMPER RUBBER A 3R0613330M 3R0-61333-0 $1.62 2
(58) UPPER DAMPER RUBBER B 3R0613371M 3R0-61337-1 $1.71 2
(59) LOCK PLATE MOUNT RUBBER 3R0613230M 3R0-61323-0 $1.93 2
(60) WASHER 345613222M 345-61322-2 $1.85 2
(61) UPPER LOCK PLATE 3R0613350M 3R0-61335-0 $1.93 2
(62) RETAINER MOUNT RUBBER 3R0613121M 3R0-61312-1 $1.71 2
(63) BOLT 9101E30620M 9101E3-0620 $1.04 4
(64) TILT STOPPER 349Q629932 349Q62993-2 $41.18 1
(65) SPRING PIN 6 - 40 9514030640M 951403-0640 $1.07 1
(66) BUSHING 10.2 -12 - 29.5 346624370M 346-62437-0 $1.85 1
(67) SETTING PLATE 3AC624390M 3AC-62439-0 $6.67 1 Sold Out View More Details
(68) BOLT 3AC632010M 3AC-63201-0 $3.85 2
(69) SPRING FRICTION TILT STOPPER 3C8624211M 3C8-62421-1 $2.42 1
(70) SET PIECE TILT STOPPER 346624380M 346-62438-0 $1.41 1
(71) REVERSE LOCK 346663220M 346-66322-0 $46.05 1
(72) ARM REVERSE LOCK 349663130M 349-66313-0 $34.51 1
(73) SHAFT REVERSE LOCK ARM 336663191M 336-66319-1 $1.67 2
(74) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 2 Sold Out View More Details
(75) ROD REVERSE LOCK 346663210M 346-66321-0 $5.07 1
(76) SPLIT PIN 2-12 9515030212M 951503-0212 $0.97 1
(77) LEVER; REVERSE REVERSE LOCK 349663110M 349-66311-0 $16.79 1
(78) REVERSE LOCK LEVER GRIP 3AL663330M 3AL-66333-0 GAS ASSIST MODEL $3.62 1
(79) STOPPER LEVER GRIP 346663340M 346-66334-0 GAS ASSIST MODEL $1.27 1
(80) SHAFT REVERSE LOCK LEVER 345052141M 345-05214-1 $8.29 1
(81) WAVE WASHER D=8 9414030800M 941403-0800 $0.90 2
(82) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 1 Sold Out View More Details
(83) LINK REVERSE LOCK 349663120M 349-66312-0 $9.46 1
(84) SPRING REVERSE LOCK LEVER 346663231M 346-66323-1 $2.19 1
(85) SPRINGL REVERSE LOCK 3R0663320M 3R0-66332-0 FOR TRANSOM L & UL $9.46 1
(85) SPRINGS REVERSE LOCK 346663310M 346-66331-0 FOR TRANSOM S $8.52 1
(86) STEERING BRACKET 3R3Q620010 3R3Q62001-0 FOR MF & EF $70.24 1
(87) BOLT 10-80 3R3620942M 3R3-62094-2 FOR MF & EF $6.84 2
(88) WASHER 9401E31000M 940113-1000 FOR MF & EF $1.50 2
(89) CLAMP THROTTLE CABLE 3R0636280M 3R0-63628-0 FOR MF & EF $2.58 1
