4. PULLEY & TIMING BELT

Click Here for Microfiche Usage Tip

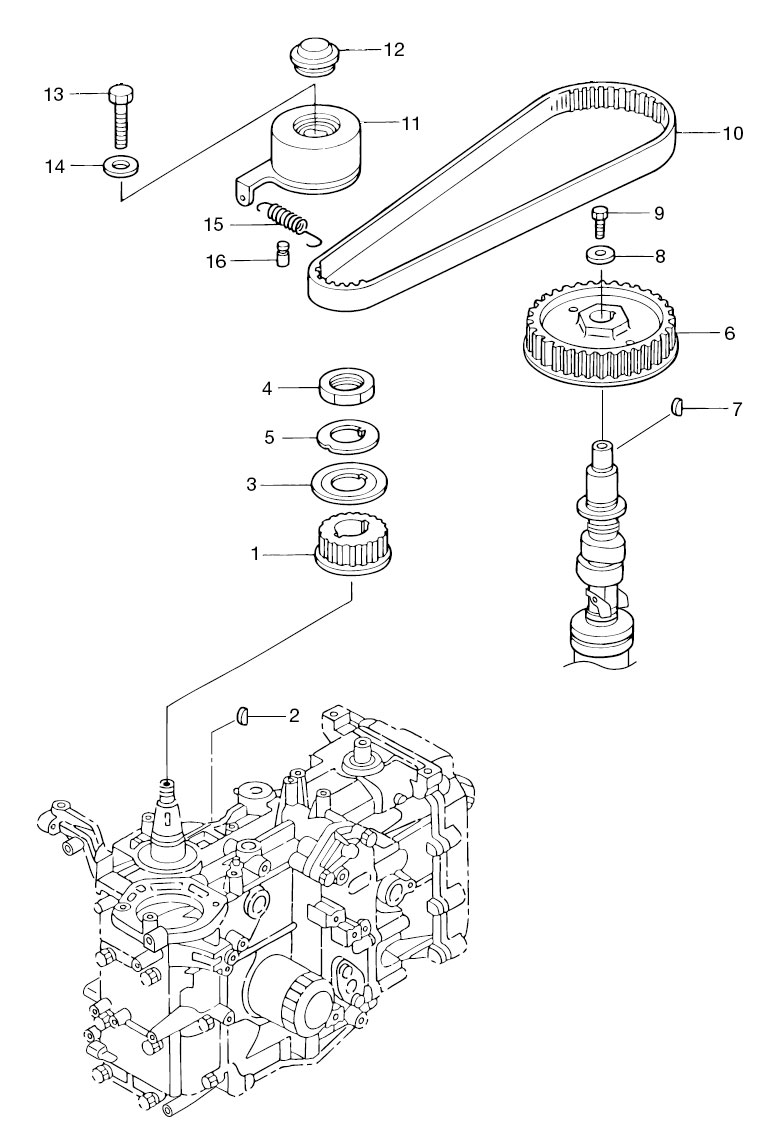

(1) DRIVE PULLEY(2) KEY DRIVE PULLEY(3) BELT GUIDE(4) NUT(5) LOCK WASHER(6) DRIVEN PULLEY(7) KEY MAGNETO(8) WASHER 6.5-19-3.2(9) PRE-COATED BOLT(10) TIMING BELT(11) TIMING BELT TENSIONER(12) TENSIONER COVER(13) BOLT(14) WASHER(15) TENSIONER SPRING(16) TENSIONER SPRING HOOK



Parts List
2010 :: 25 HP :: 4 Stroke Tohatsu MFS25B :: PULLEY & TIMING BELT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) DRIVE PULLEY 3R0100600M 3R0-10060-0 TIMING PULLEY $48.83 1
(2) KEY 3T5101310M 3T5-10131-0 $1.56 1
(3) PLATE 3R0100630M 3R0-10063-0 $1.93 1
(4) NUT 3R0100680M 3R0-10068-0 $5.02 1
(5) LOCK WASHER 3R0100690M 3R0-10069-0 $1.93 1
(6) DRIVEN PULLEY 3H8100622M 3H8-10062-2 CAMSHAFT PULLEY $48.39 1
(7) KEY 309001310M 309-00131-0 $2.31 1
(8) WASHER 6.5-19-3.2 3H8100660M 3H8-10066-0 $1.27 1 Sold Out View More Details
(9) BOLT 6-20 PRE-COATED 3AA601080M 3AA-60108-0 $1.45 1 Sold Out View More Details
(10) TIMING BELT 3R0100610M 3R0-10061-0 $57.04 1
(11) TENSIONER TIMING BELT 3R0100700M 3R0-10070-0 $0.00 1 Sold Out View More Details
(12) COVER TENSIONER 3R0100740M 3R0-10074-0 $1.45 1
(13) BOLT 9101E31040M 9101E3-1040 $3.92 1
(14) WASHER 9401E31000M 940113-1000 $1.50 1
(15) SPRING TENSIONER 3R0100750M 3R0-10075-0 $9.20 1
(16) HOOK TENSIONER SPRING 3R0100770M 3R0-10077-0 $0.00 1 Sold Out View More Details
