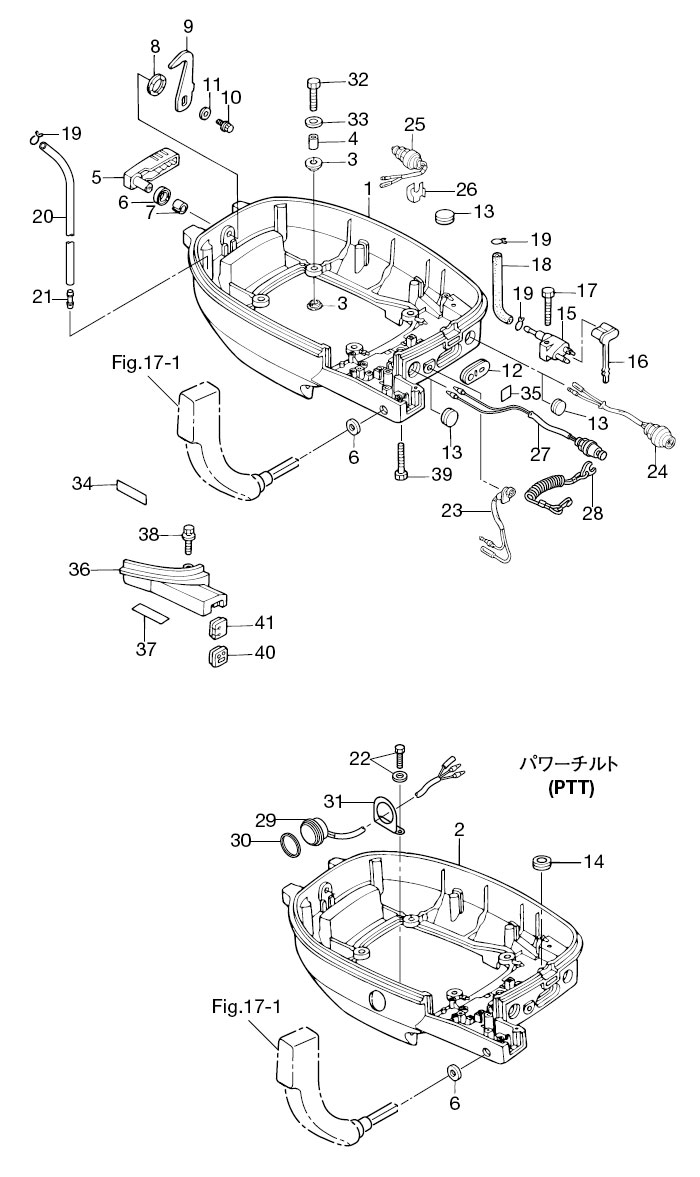

16. BOTTOM COWL

Click Here for Microfiche Usage Tip
(1) BOTTOM COWL(2) BOTTOM COWL(3) MOUNT MOTOR COVER LOWER(3) MOUNT MOTOR COVER LOWER(4) SPACER 6.2-9-15.7(5) HOOK LEVER(6) SEAL RING HOOK LEVER(6) SEAL RING HOOK LEVER(6) SEAL RING HOOK LEVER(6) SEAL RING HOOK LEVER(6) SEAL RING HOOK LEVER(6) SEAL RING HOOK LEVER(7) HOOK LEVER BUSHING 14-16.5-171.7(8) WAVE WASHER D=14(9) COVER HOOK(10) BOLT(11) WASHER 6-16-1.5(11) WASHER 6-16-1.5(12) GROMMET BATTERY CORD(13) GROMMET 17-2.7(13) GROMMET 17-2.7(13) GROMMET 17-2.7(13) GROMMET 17-2.7(13) GROMMET 17-2.7(13) GROMMET 17-2.7(13) GROMMET 17-2.7(13) GROMMET 17-2.7(13) GROMMET 17-2.7(14) GROMMET 18-2.5(15) FUEL CONNECTOR (ENGINE MALE)(16) FUEL CONNECTOR PROTECTOR(17) BOLT(18) HOSE(19) CLIP FUEL PIPE(19) CLIP FUEL PIPE(19) CLIP FUEL PIPE(20) HOSE(21) NIPPLE WATER(22) BOLT(22) BOLT(23) PILOT LAMP ASSY(24) MAIN SWITCH ASSY(25) NEUTRAL SWITCH(26) NEUTRAL SWITCH ACTUATOR(27) STOP SWITCH ASSY(28) STOP SWITCH LANYARD ASSY (W/CURL)(29) PTT SWITCH ASSY(30) GASKET PTT SWITCH(31) PTT SWITCH ASSY BRACKET(32) BOLT(33) WASHER 6.5-21-1(34) STORAGE DECAL(35) OIL PRESSURE DECAL(36) SHIFT LEVER BRACKET COVER(37) SHIFT DECAL (F N R)(38) BOLT(39) BOLT(40) GROMMET CONTROL CABLE(41) GROMMET THROTTLE CABLE



Parts List
2010 :: 25 HP :: 4 Stroke Nissan NSF25B :: BOTTOM COWL
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) BOTTOM COWL 3ACQ671000 3ACQ67100-0 MOTOR COVER (LOWER) / EXCEPT PTT MODEL $0.00 1 Sold Out View More Details
(2) BOTTOM COWL 3ADQ671000 3ADQ67100-0 MOTOR COVER (LOWER) / EXCEPT PTT MODEL $0.00 1 Sold Out View More Details
(3) RUBBER MOUNT 8.5-14-2.5 346671130M 346-67113-0 $1.66 8
(4) SPACER 6.2-9-15.7 346671141M 346-67114-1 $1.76 4
(5) HOOK LEVER 3R3Q671410 3R3Q67141-0 $15.25 1
(6) SEAL RING 338671470M 338-67147-0 FOR EP & EPT $1.85 1
(6) SEAL RING 338671470M 338-67147-0 FOR MF & EF $1.85 2
(7) BUSHING 14 -16.5 -17.7 350671050M 350-67105-0 $1.66 1
(8) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(9) COVER HOOK 3R3671420M 3R3-67142-0 $7.05 1
(10) BOLT 9101E35612M 910103-5612 $1.07 1
(11) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 FOR MF & EF $1.59 1 Sold Out View More Details
(11) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 FOR EP & EPT $1.59 3 Sold Out View More Details
(12) GROMMET BATTERY CORD 353671620M 353-67162-0 $3.31 1
(13) GROMMET 17-2.7 345671170M 345-67117-0 FOR EP $2.31 3 Sold Out View More Details
(13) GROMMET 17-2.7 345671170M 345-67117-0 FOR MF $2.31 2 Sold Out View More Details
(13) GROMMET 17-2.7 345671170M 345-67117-0 FOR EF $2.31 1 Sold Out View More Details
(14) GROMMET 18-2.5 338671630M 338-67163-0 FOR EP & EPT $2.07 1
(15) FUEL CONNECTOR ( ENGINE MALE) 394702600M 394-70260-0 $25.56 1
(16) FUEL CONNECTOR PROTECTOR 3H6702620M 3H6-70262-0 $8.24 1
(17) BOLT 9101E35630M 9101E3-5630 $1.15 1 Sold Out View More Details
(18) FUEL PIPE 98AB50300M 98AB-5-0300 98AB-501000 $11.41 1
(19) CLIP ø10 338022150M 338-02215-0 $1.41 3
(20) HOSE 98AR50600M 98AR-5-0600 CYLINDER - FUEL COOLER / 98AR-501000 $5.12 1
(21) WATER NIPPLE 3BA011380M 353-01138-0 BOTTOM COWL $2.21 1
(22) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 5
(22) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 2
(23) WARNING LAMP 3R3710400M 3R3-71040-0 $21.44 1
(24) MAIN SWITCH 3AA760260M 3AA-76026-0 FOR EF $13.94 1
(25) NEUTRAL SWITCH 361760800M 361-76080-0 FOR EF $20.43 1
(26) NEUTRAL SWITCH ACTUATOR 398760830M 398-76083-0 FOR EF $4.02 1
(27) STOP SWITCH 398068300M 398-06830-0 FOR MF & EF $48.44 1
(28) STOP SWITCH LANYARD 353068210M 353-06821-0 FOR MF & EF $16.48 1 Sold Out View More Details
(29) PTT SWITCH 3AC726150M 3AC-72615-0 $61.81 1
(30) GASKET PTT SWITCH 3F3726161M 3F3-72616-1 $3.27 1
(31) BRACKET PTT SWITCH 3F3726171M 3F3-72617-1 $7.59 1
(32) BOLT 9101E30630M 910114-5630 $1.21 4
(33) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 4
(34) STORAGE DECAL 3H6675720M 3H6-67572-0 $1.22 1
(35) OIL PRESSURE DECAL 3H6761990M 3H6-76199-0 $0.00 1 Sold Out View More Details
(36) SHIFT LEVER BRACKET COVER 3R0Q761180 3R0Q76118-0 $37.55 1
(37) SHIFT DECAL (F N R) 3V9675781M 3V9-67578-1 $7.07 1
(38) BOLT 9101E35635M 910114-5635 $1.96 1 Sold Out View More Details
(39) BOLT 9101E35650M 9101035650M $2.59 3
(40) GROMMET CONTROL CABLE 3R0837320M 3R0-83732-0 FOR EP & EPT $4.15 1
(41) GROMMET THROTTLE CABLE 3R0636210M 3R0-63621-0 FOR MF & EF $2.74 1
