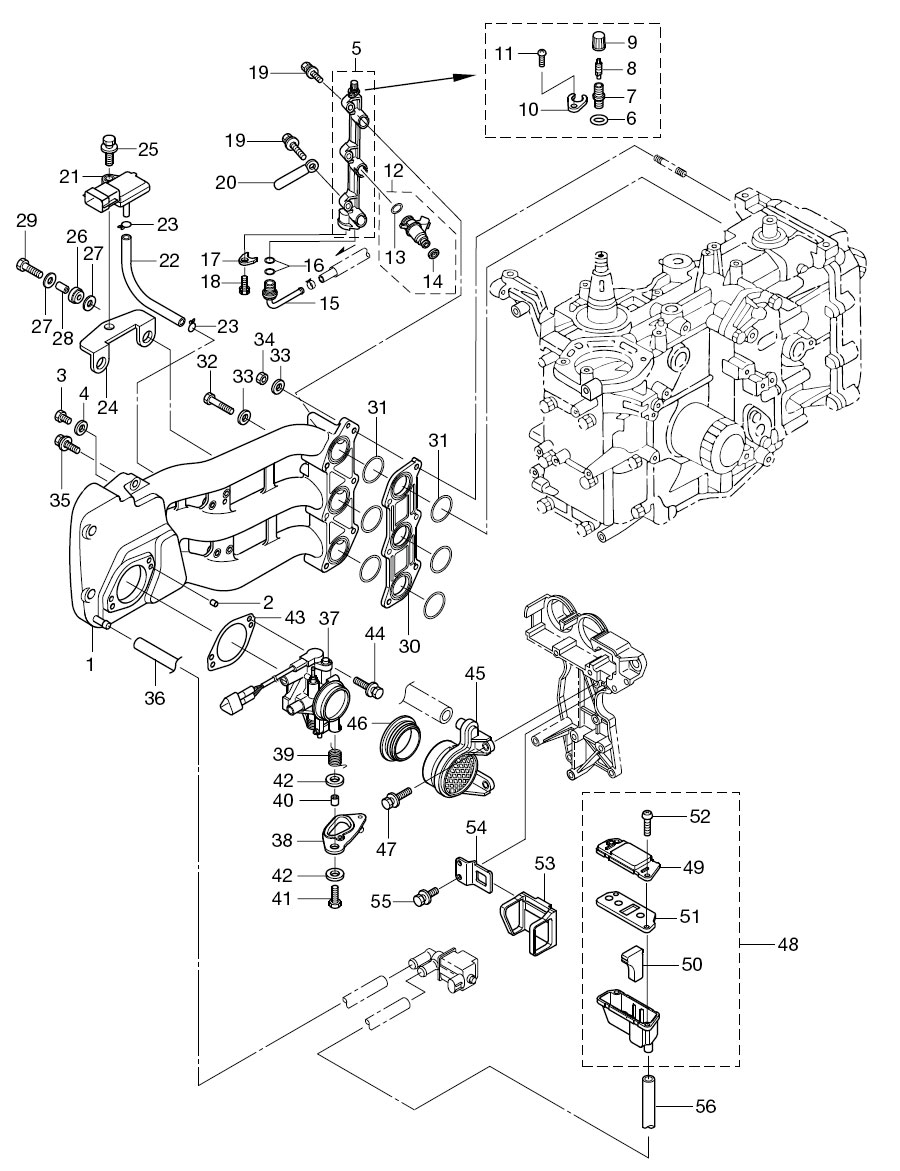

5. INTAKE MANIFOLD

Click Here for Microfiche Usage Tip
(1) INTAKE MANIFOLD ASSY(2) DOWEL PIN 6-12(3) BOLT 5-10(4) WASHER 5.3-12-1(5) FUEL RAIL ASSY(6) O-RING 1.9-4.8(7) JOINT(8) VALVE ASSY (PRESSURE CHECK)(9) CAP(10) HOLDING PLATE(11) SCREW(12) FUEL INJECTOR ASSY(13) O-RING 3.6-6.5(14) O-RING(15) NIPPLE(16) O-RING 9.8-1.9(17) HOLDING PLATE(18) BOLT 5-16(19) BOLT(19) BOLT(20) CLAMP 6.5-47.5P(21) MAP SENSOR(22) HOSE(23) CLIP o7(23) CLIP o7(24) PLATE MAP SENSOR(25) BOLT(26) RUBBER MOUNT(27) WASHER 6-16-1.5(27) WASHER 6-16-1.5(28) COLLAR 6.2-9-7.4(29) BOLT(30) INSULATOR(31) O-RING(31) O-RING(32) BOLT(33) WASHER(33) WASHER(34) NUT(35) BOLT(36) FUEL HOSE(37) THROTTLE BODY ASSY (25)(38) THROTTLE CAM ASSY (25)(39) SPRING(40) COLLAR 6.2-9-9.3(41) BOLT(42) WASHER 6.5-21-1(42) WASHER 6.5-21-1(43) GASKET THROTTLE BODY(44) BOLT(45) INTAKE SILENCER ASSY(46) GASKET(47) BOLT(48) INTAKE SILENCER ASSY(49) INTAKE SILENCER COVER(50) AIR FILTER(51) INTAKE SILENCER GASKET(52) TAPPING SCREW 5-16(53) GROMMET(54) STAY(55) BOLT(56) FUEL HOSE



Parts List
2010 :: 25 HP :: 4 Stroke Nissan NSF25B :: INTAKE MANIFOLD
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INTAKE MANIFOLD ASSY 3AC020101M 3AC-02010-1 $250.27 1 Sold Out View More Details
(2) DOWEL PIN 6-12 345011110M 345-01111-0 $1.30 2
(3) BOLT 5 -10 3R0020950M 3R0-02095-0 $0.00 1 Sold Out View More Details
(4) WASHER 5.3 -12 -1 3R0021120M 3R0-02112-0 $2.91 1
(5) FUEL RAIL ASSY 3AC102000M 3AC-10201-0 $484.87 1
(6) O-RING 1.9-4.8 3AC101620M 3AC-10162-0 $3.14 1
(7) JOINT 3AC773670M 3AC-77367-0 $12.80 1
(8) VALVE ASSY (PRESSURE CHECK) 3AC100980M 3AC-10098-0 $7.91 1
(9) CAP 3AC100990M 3AC-10099-0 $5.11 1
(10) HOLDING PLATE 3AC101690M 3AC-10169-0 $0.00 1 Sold Out View More Details
(11) SCREW 9215030410M 921503-0410 $0.46 1
(12) FUEL INJECTOR ASSY 3AC103001M 3AC-10300-0 $141.09 3
(13) O-RING 3.6-6.5 3AC103041M 3AC-10304-1 IN $8.05 1
(14) O-RING 3AC103031M 3AC-10303-1 OUT $8.05 1
(15) NIPPLE 3AC101610M 3AC-10161-0 $0.00 1 Sold Out View More Details
(16) O-RING 1.9-9.8 3T5101620M 3T5-10162-0 $1.56 2
(17) NIPPLE HOLDING PLATE 3T5101690M 3T5-10169-0 $1.22 1
(18) BOLT 9101035616M 910103-5616 $1.15 1
(19) BOLT 9101E35625M 910113-5625 $1.47 3
(20) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 1
(21) MAP SENSOR 3AC102140M 3AC-10214-0 $117.76 1
(22) HOSE 98AL40110M 98AL-40-110 MAP SENSOR - I/MANIFOLD / 98AL-401000 $8.81 1
(23) CLIP ø 7 338011330M 338-01133-0 $1.04 2
(24) PLATE 3AC072330M 3AC-07233-0 $5.87 1 Sold Out View More Details
(25) BOLT (OR 910113-5616) 9101E35616M 910113-5616 $1.15 1
(26) RUBBER MOUNT 3AC069200M 3AC-06920-0 $1.04 2
(27) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 $1.59 4 Sold Out View More Details
(28) COLLAR 6.2-9-7.4 3A0760790M 3A0-76079-0 $2.21 2 Sold Out View More Details
(29) BOLT 9101E30620M 9101E3-0620 $1.04 2
(30) INSULATOR 3AC039520M 3AC-03952-0 $6.77 1
(31) O-RING 1.9-31.2 3AC020120M 3AC-02012-0 $1.01 6
(32) BOLT 9161F40653M 9161F4-0653 $2.82 3
(33) WASHER 9401030600M 940103-0600 $0.70 6
(34) NUT 9301030600M 930113-0600 $0.84 3
(35) BOLT 9101035625M 910103-5625 $1.47 3
(36) FUEL HOSE 3AC022030M 3AC-02203-0 ISC VALVE - INTAKE MANIFOLD $0.00 1 Sold Out View More Details
(37) THROTTLE BODY ASSY 3AD101001M 3AD-10100-1 25PS WITH TPS $294.45 1
(38) THROTTLE CAM ASSY 3AD637490M 3AD-63718-0 25PS (WHITE) $8.20 1
(39) SPRING 3AC637271M 3AC-63727-1 $2.21 1
(40) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 $4.06 1
(41) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 $0.95 1
(42) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 2
(43) GASKET 3AC101040M 3AC-10104-0 $2.31 1
(44) BOLT 9101E35625M 910113-5625 $1.47 2
(45) INTAKE SILENCER ASSY 3AD024090M 3AD-02409-0 FOR THROTTLE BODY $0.00 1 Sold Out View More Details
(46) GASKET 3AC024180M 3AC-02418-0 $6.56 1
(47) BOLT 9101E35620M 910113-5620 $1.30 2
(48) INTAKE SILENCER ASSY 3AC024090M 3AC-02409-0 FOR ISC $22.69 1
(49) INTAKE SILENCER COVER 3AC024160M 3AC-02416-0 $9.98 1 Sold Out View More Details
(50) AIR FILTER 3AC101300M 3AC-10130-0 $2.62 1
(51) INTAKE SILENCER GASKET 3AC024140M 3AC-02414-0 $2.62 1
(52) TAPPING SCREW 5-16 3AC059130M 3AC-05913-0 $0.75 4 Sold Out View More Details
(53) GROMMET 3AC636240M 3AC-63624-0 $13.03 1 Sold Out View More Details
(54) STAY 3AC637370M 3AC-63737-0 $2.62 1 Sold Out View More Details
(55) BOLT 9101E35612M 910103-5612 $1.07 2
(56) FUEL HOSE 3AD022030M 3AD-02203-0 INTAKE SILENCER - ISC VALVE $0.00 1 Sold Out View More Details
