2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

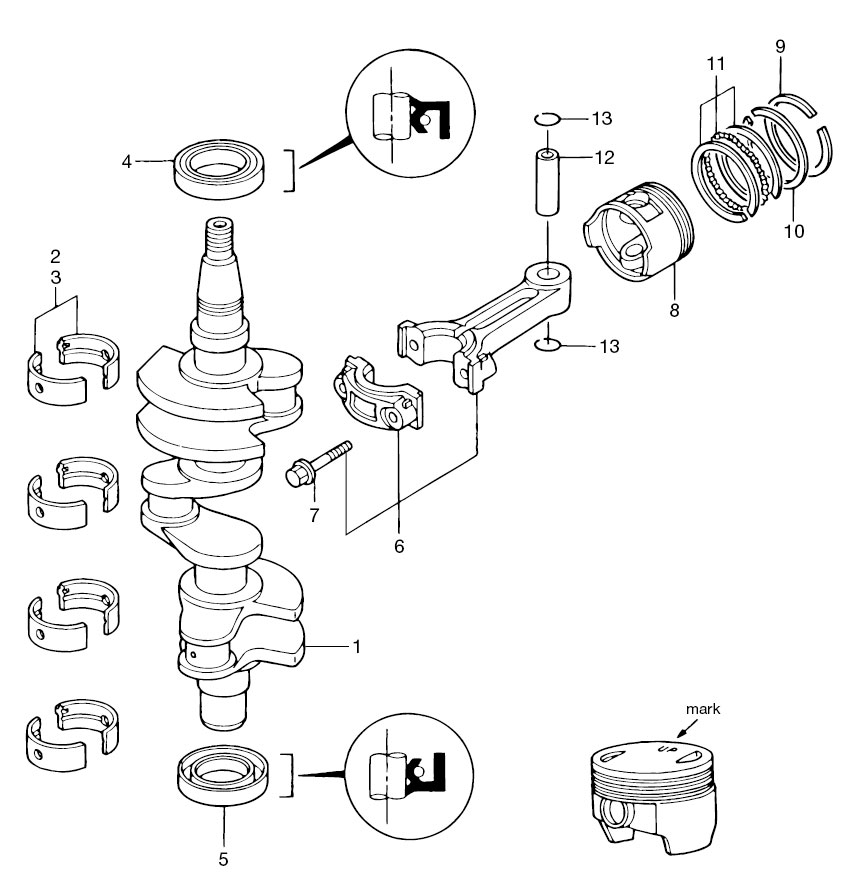

(1) CRANKSHAFT ASSY(2) PLAIN SHAFT BEARING (RED)(3) PLAIN SHAFT BEARING (BLUE)(4) OIL SEAL 38-50-8(5) OIL SEAL 35-50-8(6) CONNECTING ROD ASSY(7) CONNECTING ROD BOLT(8) PISTON (STD)(9) PISTON RING (STD) 1ST(10) PISTON RING (STD) 2ND(11) PISTON RING-OIL (STD)(12) PISTON PIN(13) PISTON PIN CLIP(13) PISTON PIN CLIP



Parts List
2010 :: 25 HP :: 4 Stroke Nissan NSF25B :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT ASSY 3AC000301M 3R0-00030-1 $700.77 1
(2) BEARING (RED) 3AE074070M 3AE-07407-0 RED $6.13 0
(3) BEARING (BLUE) 3AE074080M 3AE-07408-0 BLUE $6.13 0
(4) OIL SEAL 38 - 50 - 8 3R0001220M 3R0-00122-0 UPPER $13.25 1
(5) OIL SEAL 35 - 50 - 8 3R0001210M 3R0-00121-0 LOWER $14.32 1
(6) CONNECTING ROD ASSY 3R0000400M 3R0-00040-0 $51.06 3
(7) CONNECTING ROD BOLT 3H6000590M 3H6-00059-0 $8.47 2
(8) PISTON (STD) 3AC000010M 3AC-00001-0 $43.25 3
(9) PISTON RING TOP 3AC000110M 3AC-00011-0 $10.07 3
(10) PISTON RING 2ND 3AC000120M 3AC-00012-0 $8.47 3
(11) PISTON RING OIL 3AC000130M 3AC-00013-0 $5.87 3
(12) PISTON PIN 3AE000210M 3AE-00021-0 $8.63 3
(13) PISTON PIN CLIP 3H6000240M 3H6-00024-0 $0.92 6
