23. OPTIONAL PARTS (ACCESSORIES) (2)

Click Here for Microfiche Usage Tip

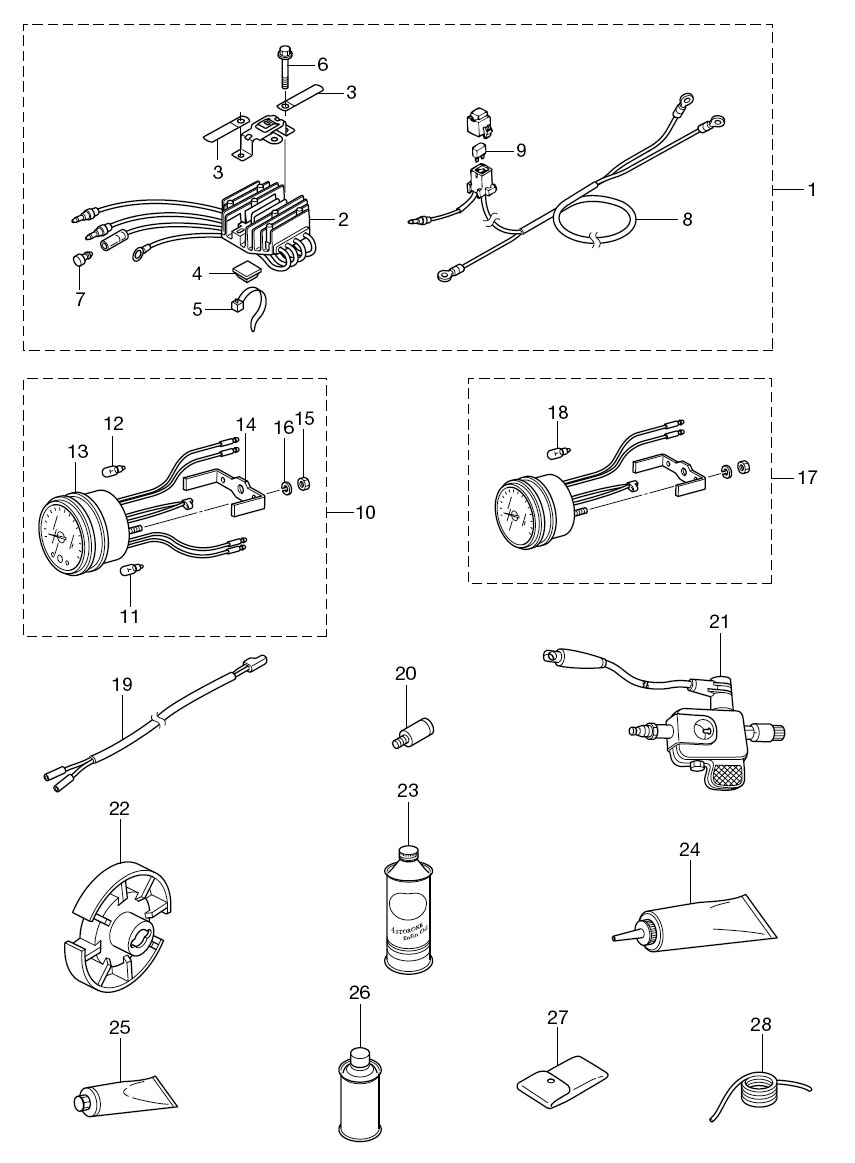

(1) RECTIFIER KIT(2) RECTIFIER COMPLETE(3) CLAMP 6.5-47.5P(3) CLAMP 6.5-47.5P(4) BAND MOUNT(5) BAND LEAD WIRE 203(6) BOLT(7) CABLE TERMINAL PLUG(8) EXTENSION CORD L=3000(9) FUSE 30A(10) TACHOMETER (W/OIL LAMP)(11) OIL BULB 12V-1.7W(12) METER BULB 12V-1.8W(13) METER DAMPER(14) FITTING PLATE(15) NUT(16) SPRING WASHER(17) TACHOMETER ASSY(18) METER BULB 12V-1.8W(19) TACHOMETER LEAD WIRE L=6000(20) FLUSHING PLUG(21) SPARK TESTER (PET-4000)(22) TEST PROPELLER ASSY(23) TOHATSU 4-CYCLE FCW OIL (12-QUARTS)(23) TOHATSU 4-CYCLE FCW OIL (6-GALLONS)(23) NISSAN 4-CYCLE FCW OIL (12-QUARTS)(23) NISSAN 4-CYCLE FCW OIL (6-GALLONS)(24) TOHATSU GEAR LUBE (12-QUARTS)(24) TOHATSU GEAR LUBE (5 GAL PAIL)(24) TOHATSU GEAR LUBE (16 GAL DRUM)(24) NISSAN GEAR LUBE (12-QUARTS)(24) NISSAN GEAR LUBE (5 GAL PAIL)(24) NISSAN GEAR LUBE (16 GAL DRUM)(25) TOHATSU GREASE (10-14 OZ. CARTRIDGE)(25) NISSAN GREASE (10-14 OZ. CARTRIDGE)(26) TOUCH-UP PAINT (AQUAMARINE BLUE)(27) TOOL KIT(28) SAFETY ROPE 6-1600MM



Parts List
2010 :: 20 HP :: 4 Stroke Nissan NSF20C :: OPTIONAL PARTS (ACCESSORIES) (2)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) RECTIFIER KIT 3BJ761600M 3BJ-76160-0 $116.90 1
(2) RECTIFIER 3BJ760600M 3BJ-76060-0 $75.70 1
(3) CLAMP 6.5-47.5P 309069720M 309-06972-0 $2.07 2
(4) BAND MOUNT 3BJ761640M 3BJ-76164-0 $0.00 1 Sold Out View More Details
(5) LEAD WIRE BAND 203 3Z0843980M 3Z0-84398-0 $0.00 1 Sold Out View More Details
(6) BOLT 9101035625M 910103-5625 $1.47 2
(7) CABLE TERMINAL PLUG 3A3760370M 3A3-76037-0 $1.50 1
(8) EXTENSION CORD 3BJ761610M 3BJ-76161-0 $32.00 1
(9) FUSE 30A 3T5762490M 3T5-76249-0 $2.40 1
(10) TACHOMETER (WITH OIL LAMP) 3N8726401M 3B7-72640-1 SELECTOR 12P / FOR EP/EPT $0.00 1 Sold Out View More Details
(11) OIL BULB 12V-1.7W 3B7726580M 3B7-72658-0 FOR EP/EPT $3.27 1
(12) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR EP/EPT $0.00 1 Sold Out View More Details
(13) METER DAMPER 3B7726560M 3B7-72656-0 FOR EP/EPT $3.27 1
(14) FITTING PLATE 3B7726610M 3B7-72661-0 FOR EP/EPT $25.33 1
(15) NUT 9301030500M 930103-0500 FOR EP/EPT $0.86 2
(16) SPRING WASHER 9413030500M 941303-0500 FOR EP/EPT $0.90 2
(17) TACHOMETER (WITHOUT OIL LAMP) 3B7725302M 3B7-72530-1 SELECTOR 12P / FOR MF/EF/EFT $0.00 1 Sold Out View More Details
(18) METER BULB 12V-1.7W 3B7726590M 3B7-72659-0 FOR MF/EF/EFT $0.00 1 Sold Out View More Details
(19) TACHOMETER LEAD CABLE 361725390M 361-72539-0 FOR MF/EF/EFT $50.65 1
(20) FLUSHING ATTACHMENT 336600070M 336-60007-0 $8.05 1
(21) SPARK TESTER 3F3725400M 3F3-72540-0 $169.88 1
(22) TEST PROPELLER 362641100M 362-64111-0 $290.20 1 Sold Out View More Details
(23) TOHATSU 4-CYCLE FCW OIL (12-QUARTS) 332823080M 332823080M QUARTS - 12 PER CASE $124.06 1 Sold Out View More Details
(23) TOHATSU 4-CYCLE FCW OIL (6-GALLONS) 332823050M 332823050M GALLONS - 6 PER CASE $145.62 1
(23) NISSAN 4-CYCLE FCW OIL (12-QUARTS) 332823070M 332823070M QUARTS - 12 PER CASE $124.06 1 Sold Out View More Details
(23) NISSAN 4-CYCLE FCW OIL (6-GALLONS) 332823020M 332823020M GALLONS - 6 PER CASE $145.62 1
(24) TOHATSU GEAR LUBE (12-QUARTS) 332823100M 332823100M QUARTS - 12 PER CASE $140.48 1
(24) TOHATSU GEAR LUBE (5 GAL PAIL) 332823120M 332823120M 5 GALLON PAIL $200.25 1
(24) TOHATSU GEAR LUBE (16 GAL DRUM) 332823140M 332823140M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(24) NISSAN GEAR LUBE (12-QUARTS) 332823090M 332823090M QUARTS - 12 PER CASE $140.48 1
(24) NISSAN GEAR LUBE (5 GAL PAIL) 332823110M 332823110M 5 GALLON PAIL $200.25 1
(24) NISSAN GEAR LUBE (16 GAL DRUM) 332823130M 332823130M 16 GALLON DRUM $0.00 1 Sold Out View More Details
(25) TOHATSU GREASE (10-14 OZ. CARTRIDGE) 332823180M 332823180M 14OZ. CARTRIDGES - 10 PER CASE $89.08 1
(25) NISSAN GREASE (10-14 OZ. CARTRIDGE) 332823170M 332823170M 14OZ. CARTRIDGES - 10 PER CASE $89.08 1
(26) TOUCH-UP PAINT (AQUAMARINE BLUE) 3AC723260M 3AC-72326-0 $36.56 1
(27) TOOL 3BJ721000M 3H6-72100-0 $28.06 1
(28) ROPE 3B7722010M 3B7-72201-0 $5.07 1
