24. ASSEMBLY / KITS

Click Here for Microfiche Usage Tip

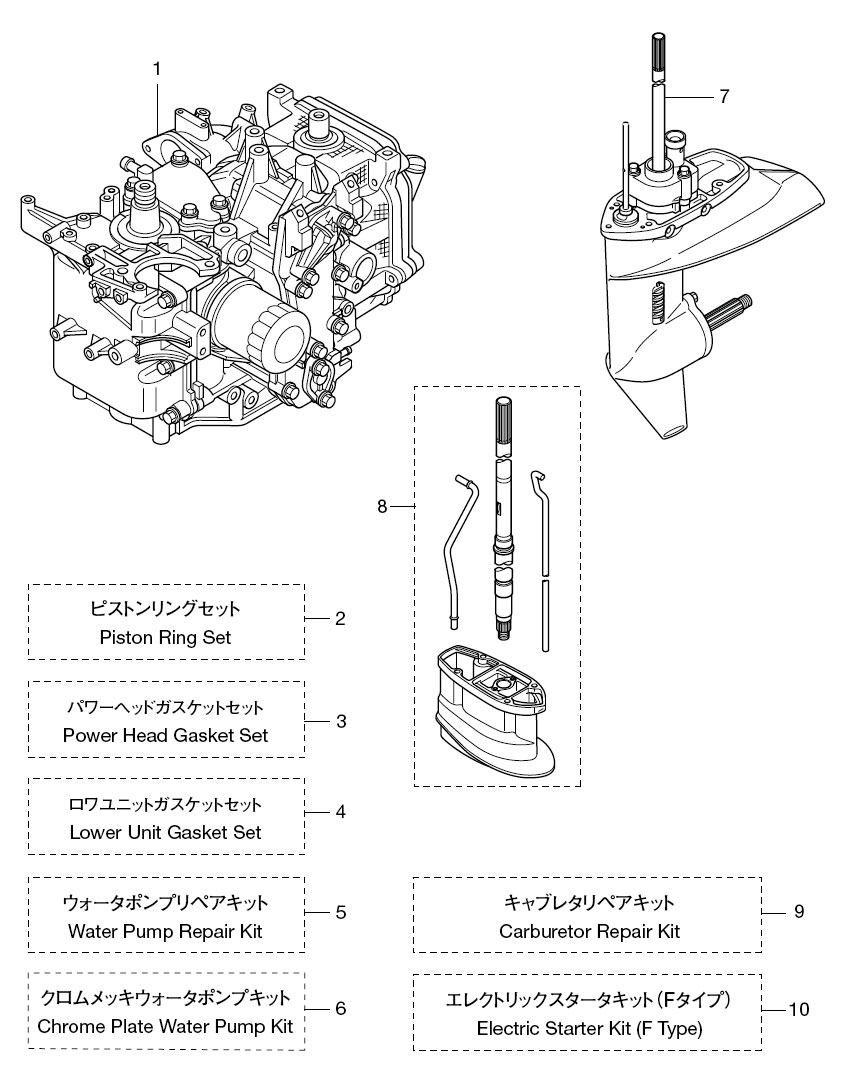

(1) ENGINE SHORT BLOCK KIT(2) PISTON RING SET (STD)(3) POWER HEAD GASKET SET(4) LOWER UNIT GASKET SET(5) WATER PUMP REPAIR KIT(6) WATER PUMP KIT (CHROME PLATED)(7) LOWER UNIT ASSY (S)(7) LOWER UNIT ASSY (L)(8) EXTENSION HOUSING KIT (UL)(9) CARBURETOR REPAIR KIT(10) ELECTRIC STARTER KIT (F TYPE)



Parts List
2010 :: 15 HP :: 4 Stroke Tohatsu MFS15C :: ASSEMBLY / KITS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) ENGINE SHORT BLOCK KIT 3BJB870900 3BJB87090-0 $1,768.20 1
(2) PISTON RING SET 3BJ871230M 3BJ-87123-0 $38.00 1
(3) POWER HEAD GASKET SET 3BJ871210M 3BJ-87121-0 $101.55 1
(4) LOWER UNIT GASKET SET 398873212M 398873212M $21.60 1
(5) WATER PUMP REPAIR KIT 362873220M 362-87322-0 $32.78 1
(6) WATER PUMP KIT (CHROME PLATED) 362652310M 362-65231-0 $32.78 1
(7) LOWER UNIT ASSY (S) 3BJQ873011 3BJQ87301-1 FOR TRANSOM S $803.62 1
(7) LOWER UNIT ASSY (L) 3BJQ873021 3BJQ87302-1 FOR TRANSOM L $818.80 1
(8) EXTENSION HOUSING KIT (UL) 3BJQ873141 3BJQ87314-0 FOR TRANSOM UL $0.00 1 Sold Out View More Details
(9) CARBURETOR REPAIR KIT 3BJ871220M 3BJ-87122-0 15/20PS $55.94 1
(10) ELECTRIC STARTER KIT (F TYPE) 3BJ763001M 3BJ-76300-1 $583.86 1 Sold Out View More Details
