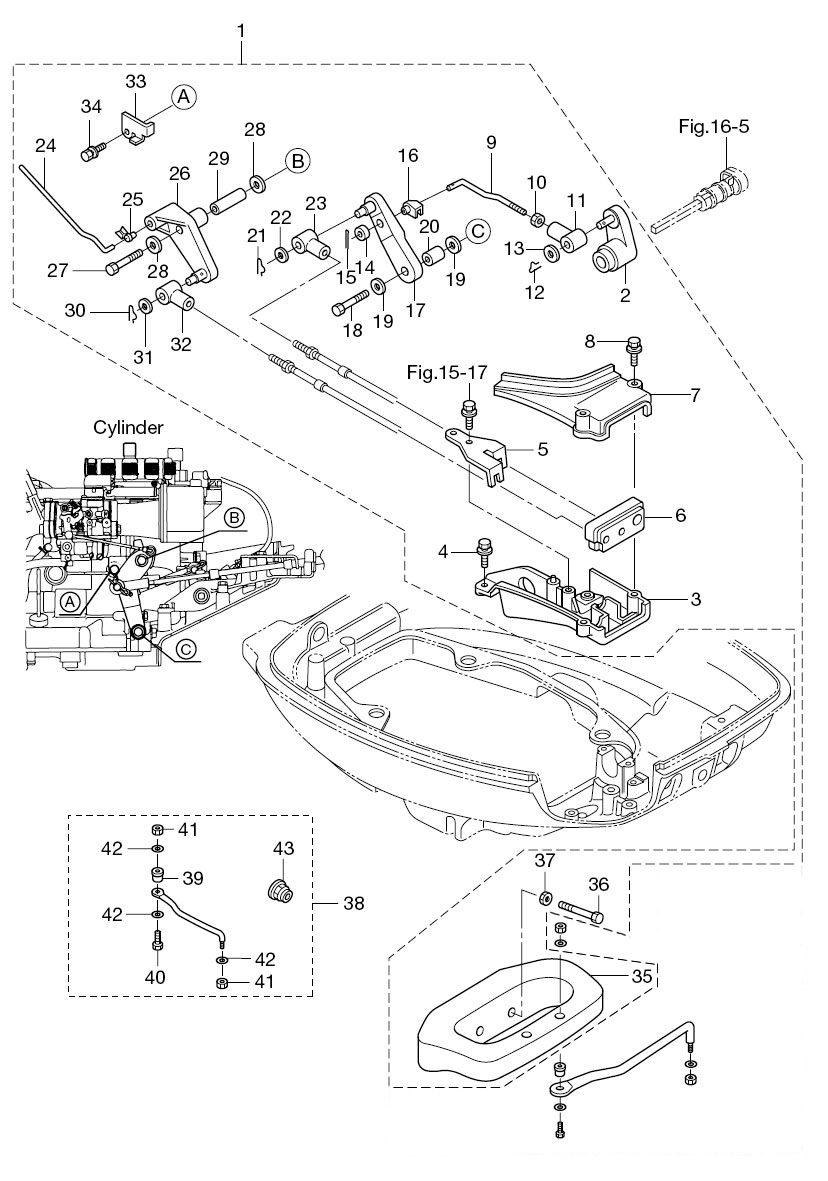

17. REMOTE CONTROL PARTS

Click Here for Microfiche Usage Tip
(1) REMOTE CONTROL FITTING ASSY(2) SHIFT ARM (REMOTE CONTROL)(3) REMOTE CONTROL CABLE STAY(4) BOLT(5) CABLE CLIP ASSY(6) GROMMET CABLE(7) REMOTE CONTROL CABLE STAY COVER(8) BOLT 6-35 (W/WASHER)(9) SHIFT LEVER ROD(10) NUT(11) CABLE JOINT(12) SNAP PIN D=8(13) WASHER 8.5-18-1.6(14) SPACER 5-9.5-5(15) SPLIT PIN 2-12(16) ROD SNAP 5-3(17) SHIFT LEVER (REMOTE CONTROL)(18) BOLT(19) WASHER 6-16-1.5(19) WASHER 6-16-1.5(20) COLLAR 6.2-9-9.3(21) SNAP PIN D=8(22) WASHER 8.5-18-1.6(23) CABLE JOINT(24) THROTTLE ROD REMOTE CONTROL CABLE(25) ROD SNAP 3-B(26) THROTTLE LEVER (REMOTE CONTROL)(27) BOLT(28) WASHER 6-16-1.5(28) WASHER 6-16-1.5(29) COLLAR 6.2-9-30.8(30) SNAP PIN D=8(31) WASHER 8.5-18-1.6(32) CABLE JOINT(33) THROTTLE LEVER STOPPER(34) BOLT(35) STEERING BRACKET(36) BOLT(37) WASHER(38) DRAG LINK ASSY H(39) SPACER DRAG LINK H(40) BOLT 3/8-50(41) NYLON NUT 3/8(41) NYLON NUT 3/8(42) WASHER 9.6-18-2(42) WASHER 9.6-18-2(42) WASHER 9.6-18-2(43) SEAL RING DRAG LINK



Parts List
2010 :: 15 HP :: 4 Stroke Tohatsu MFS15C :: REMOTE CONTROL PARTS
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) REMOTE CONTROL FITTING ASSY 3BJQ838802 3BJQ83880-2 $167.03 1
(2) SHIFT ARM (REMOTE CONTROL) 3R3661280M 3R3-66128-0 FOR EP/EPT $4.12 1
(3) REMOTE CONTROL STAY 3R3Q674820 3R3Q67482-0 FOR EP/EPT $33.81 1
(4) BOLT 9101E35620M 910113-5620 FOR EP/EPT $1.30 3
(5) CABLE CLIP 3R3838200M 3R3-83820-0 FOR EP/EPT $8.60 1
(6) CABLE GROMMET 3R3837320M 3R3-83732-0 FOR EP/EPT $13.89 1
(7) REMOTE CONTROL STAY COVER 3R3674831M 3R3-67483-0 FOR EP/EPT $7.66 1
(8) BOLT 5-35 (WITH WASHER) 3BJ674850M 3BJ-67485-0 FOR EP/EPT $3.05 2
(9) SHIFT LEVER ROD 3BJ661340M 3BJ-66134-0 FOR EP/EPT $5.58 1
(10) NUT 9301030500M 930103-0500 FOR EP/EPT $0.86 1
(11) CABLE JOINT 3B7837151M 3B7-83715-1 FOR EP/EPT $4.83 1 Sold Out View More Details
(12) SNAP PIN D=8 9516030800M 951603-0800 FOR EP/EPT $0.70 1
(13) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 FOR EP/EPT $2.39 1
(14) SPACER 5-9.5-5 3BJ661380M 3BJ-66138-0 FOR EP/EPT $1.30 1
(15) SPLIT PIN 2-12 9515030212M 951503-0212 FOR EP/EPT $0.97 1
(16) ROD SNAP 5-3 3C8637330M 3C8-63733-0 FOR EP/EPT $1.45 1
(17) SHIFT LEVER (REMOTE CONTROL) 3R3661290M 3R3-66129-0 FOR EP/EPT $3.82 1
(18) BOLT (OR 910113-0625) 9101E30625M 9101E3-0625 FOR EP/EPT $0.95 1
(19) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 FOR EP/EPT $1.59 2 Sold Out View More Details
(20) COLLAR 6.2 - 9 - 9.3 353760790M 353-76079-0 FOR EP/EPT $4.06 1
(21) SNAP PIN D=8 9516030800M 951603-0800 FOR EP/EPT $0.70 1
(22) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 FOR EP/EPT $2.39 1
(23) CABLE JOINT 3B7837151M 3B7-83715-1 FOR EP/EPT $4.83 1 Sold Out View More Details
(24) THROTTLE ROD (REMOTE CONTROL) 3R3637090M 3R3-63709-0 FOR EP/EPT $5.21 1
(25) ROD SNAP ø 3B 346671961M 346-67196-1 FOR EP/EPT $2.56 1
(26) THROTTLE LEVER (REMOTE CONTROL) 3R3839100M 3R3-83910-0 FOR EP/EPT $3.97 1
(27) BOLT (OR 910113-0645) 9101E30645M 9101E3-0645 FOR EP/EPT $1.87 1
(28) WASHER 6-16-1.5 3R0663080M 3R0-66308-0 FOR EP/EPT $1.59 2 Sold Out View More Details
(29) COLLAR 6.2-9-30.8 3R3839131M 3R3-83913-1 FOR EP/EPT $3.14 1
(30) SNAP PIN D=8 9516030800M 951603-0800 FOR EP/EPT $0.70 1
(31) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 FOR EP/EPT $2.39 1
(32) CABLE JOINT 3B7837151M 3B7-83715-1 FOR EP/EPT $4.83 1 Sold Out View More Details
(33) THROTTLE LEVER STOPPER 3BJ839140M 3BJ-83914-0 FOR EP/EPT $5.73 1
(34) BOLT (OR 910113-5616) 9101E35616M 910113-5616 FOR EP/EPT $1.15 1
(35) STEERING BRACKET 3V5Q620010 3V5Q62001-0 FOR EP/EPT $44.21 1
(36) BOLT 9161E31045M 9161E3-1045 FOR EP/EPT $5.89 2
(37) WASHER 9401E31000M 940113-1000 FOR EP/EPT $1.50 2
(38) DRAG LINK H ASSY 3E0849050M 3E0-84905-0 FOR EP/EPT $154.19 1
(39) SPACER 3E0849140M 3E0-84914-0 FOR EP/EPT $7.32 1
(40) BOLT 3/8 - 50 3E0849170M 3E0-84917-0 FOR EP/EPT $11.28 1
(41) NYLON NUT 3/8 353849180M 353-84918-0 FOR EP/EPT $6.59 2
(42) WASHER 9.6-18-2 353849160M 353-84916-0 FOR EP/EPT $1.45 3
(43) DRAG LINK SEAL RING 3F3849080M 3F3-84908-0 FOR EP/EPT $2.56 1 Sold Out View More Details
