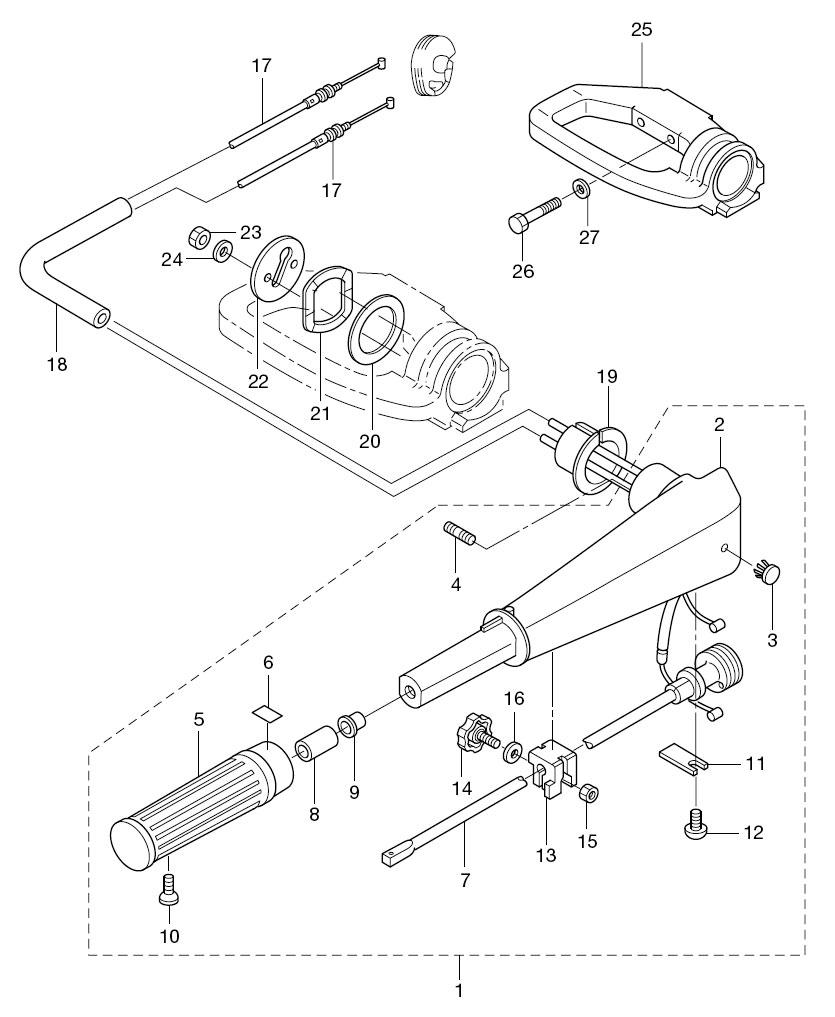

14. TILLER HANDLE

Click Here for Microfiche Usage Tip
(1) TILLER HANDLE SUB-ASSY(2) TILLER HANDLE(3) PLASTIC RIVET 6.5(4) STUD(5) GRIP(6) THROTTLE DECAL(7) THROTTLE SHAFT(8) THROTTLE SHAFT DAMPER A(9) BUSHING 8.4-10-11(10) SCREW(11) THROTTLE SHAFT SUPPORT(12) SCREW(13) FRICTION PIECE(14) ADJUSTING SCREW(15) NUT(16) WASHER(17) THROTTLE WIRE(17) THROTTLE WIRE(18) PROTECTOR(19) BUSHING HANDLE(20) WASHER 39-52-1(21) WAVE WASHER 39.5-52-1.2(22) COVER PLATE STEERING(23) NUT(24) WASHER(25) STEERING BRACKET(26) BOLT 10-80 P1.5(27) WASHER



Parts List
2010 :: 15 HP :: 4 Stroke Tohatsu MFS15C :: TILLER HANDLE
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) TILLER HANDLE SUB-ASSY 3BJQ630050 3BJQ63003-0 FOR MF/EF $108.27 1
(2) TILLER HANDLE 3R3Q630110 3R3Q63011-0 FOR MF/EF $47.36 1
(3) PLASTIC RIVET 6.5 350671540M 350-67154-0 FOR MF/EF $1.85 1
(4) STUD BOLT 3B2631041M 3B2-63104-1 FOR MF/EF $3.27 1
(5) GRIP 3R3630120M 3R3-63012-0 FOR MF/EF $16.97 1
(6) THROTTLE DECAL 3V9720190M 3V9-72019-0 FOR MF/EF $2.19 1
(7) THROTTLE SHAFT 3R3630410M 3R3-63041-0 FOR MF/EF $12.36 1
(8) RUBBER THROTTLE SHAFT 345630480M 345-63048-0 FOR MF/EF $1.85 1
(9) BUSHING 8.4 -10 -11 350630460M 350-63046-0 FOR MF/EF $1.85 1
(10) SCREW 9208E30518M 9208E3-0518 FOR MF/EF $0.92 1
(11) THROTTLE SHAFT SUPPORT 3B2630630M 3B2-63063-0 FOR MF/EF $2.31 1
(12) SCREW 9215E30612M 9215E3-0612 FOR MF/EF $0.93 1
(13) GRIP FRICTION PIECE 3B2630351M 3B2-63035-1 FOR MF/EF $4.19 1
(14) ADJUSTING SCREW 3B2630340M 3B2-63034-0 FOR MF/EF $4.19 1
(15) NUT 9301E30600M 9301E3-0600 FOR MF/EF $0.52 1 Sold Out View More Details
(16) WASHER 9401E30600M 9401E3-0600 FOR MF/EF $0.00 1 Sold Out View More Details
(17) THROTTLE CABLE 3R3636000M 3R3-63600-0 FOR MF/EF $0.00 2 Sold Out View More Details
(18) PROTECTION TUBE 3R0061570M 3R0-06157-0 FOR MF/EF $2.58 1
(19) BUSHING HANDLE 3R3631020M 3R3-63102-0 FOR MF/EF $1.22 1
(20) WASHER 39 - 52 -1 3R3631080M 3R3-63108-0 FOR MF/EF $1.27 1
(21) WAVE WASHER 39 - 52 -1.2 3R3631090M 3R3-63109-0 FOR MF/EF $5.64 1
(22) PLATE STEERING HANDLE 3R3631070M 3R3-63107-0 FOR MF/EF $3.37 1
(23) NUT 9301E30600M 9301E3-0600 FOR MF/EF $0.52 2 Sold Out View More Details
(24) WASHER 9401E30600M 9401E3-0600 FOR MF/EF $0.00 2 Sold Out View More Details
(25) STEERING BRACKET 3R3Q620010 3R3Q62001-0 FOR MF/EF $70.24 1
(26) BOLT 10-80 3R3620942M 3R3-62094-2 FOR MF/EF $6.84 2
(27) WASHER 9401E31000M 940113-1000 FOR MF/EF $1.50 2
