2. PISTON & CRANK SHAFT

Click Here for Microfiche Usage Tip

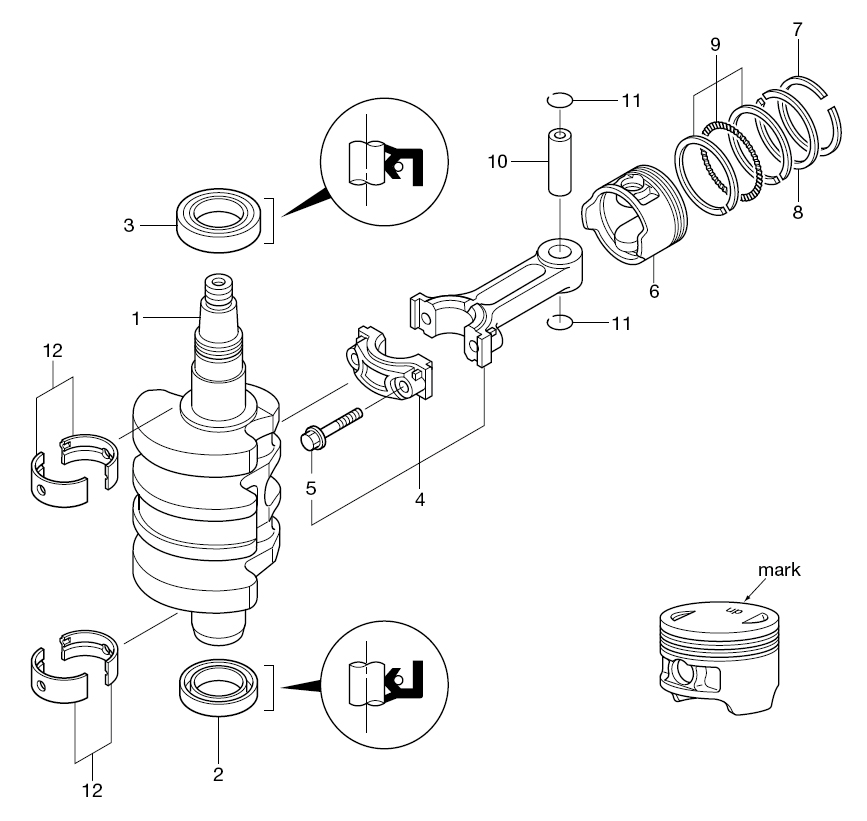

(1) CRANKSHAFT ASSY(2) OIL SEAL 32-44-9(3) OIL SEAL 36-50-7(4) CONNECTING ROD ASSY(5) CONNECTING ROD BOLT(6) PISTON(7) PISTON RING (STD) 1ST(8) PISTON RING (STD) 2ND(9) PISTON RING-OIL (STD)(10) PISTON PIN(11) PISTON PIN CLIP(11) PISTON PIN CLIP(12) PLAIN SHAFT BEARING (BLUE)(12) PLAIN SHAFT BEARING (BLUE)(12) PLAIN SHAFT BEARING (RED)(12) PLAIN SHAFT BEARING (RED)



Parts List
2010 :: 15 HP :: 4 Stroke Tohatsu MFS15C :: PISTON & CRANK SHAFT
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) CRANKSHAFT ASSY 3BJ000300M 3BJ-00030-0 $309.17 1
(2) OIL SEAL 32-44-9 3R3001210M 3R3-00121-0 LOWER $8.47 1
(3) OIL SEAL 36-50-7 3BJ001210M 3BJ-00121-0 UPPER $11.00 1
(4) CONNECTING ROD ASSY 3R0000400M 3R0-00040-0 $51.06 2
(5) CONNECTING ROD BOLT 3H6000590M 3H6-00059-0 $8.47 2
(6) PISTON 3AE000010M 3AE-00001-0 $43.25 2
(7) PISTON RING TOP 3AC000110M 3AC-00011-0 $10.07 2
(8) PISTON RING 2ND 3AC000120M 3AC-00012-0 $8.47 2
(9) PISTON RING OIL 3AC000130M 3AC-00013-0 $5.87 2
(10) PISTON PIN 3AE000210M 3AE-00021-0 $8.63 2
(11) PISTON PIN CLIP 3H6000240M 3H6-00024-0 $0.92 4
(12) BEARING (BLUE) 3AE074080M 3AE-07408-0 BLUE $6.13 0
(12) BEARING (RED) 3AE074070M 3AE-07407-0 RED $6.13 0
(12) BEARING (BLUE) 3AE074080M 3AE-07408-0 BLUE $6.13 0
(12) BEARING (RED) 3AE074070M 3AE-07407-0 RED $6.13 0
