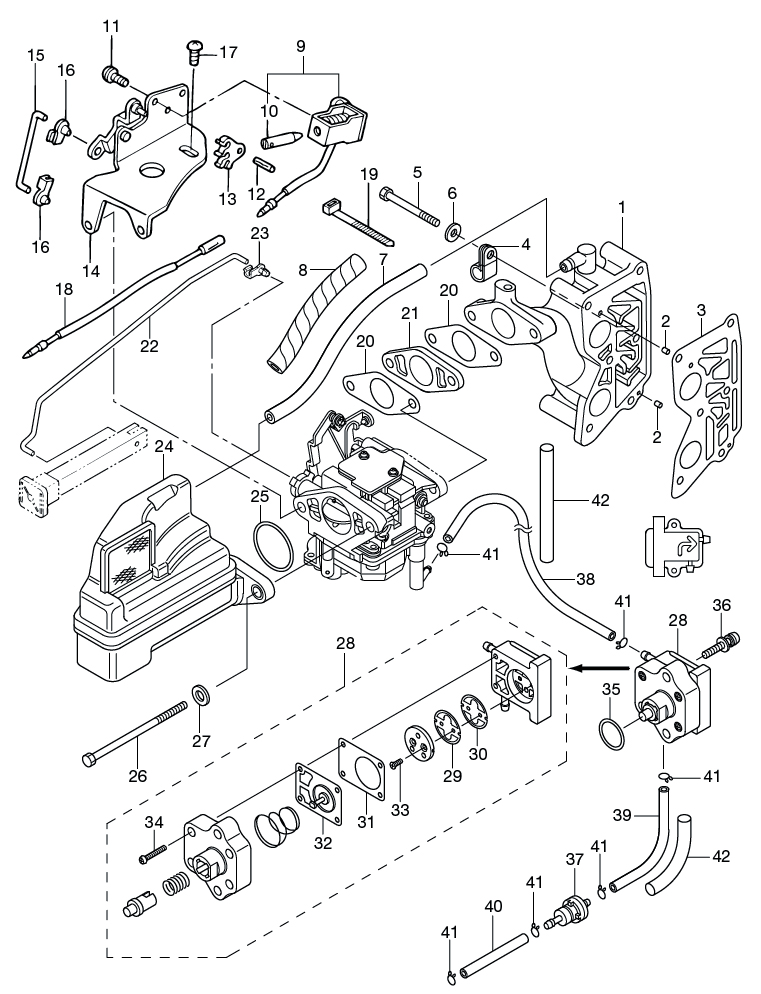

5. INTAKE MANIFOLD & FUEL PUMP

Click Here for Microfiche Usage Tip
(1) INTAKE MANIFOLD ASSY(2) SPRING PIN 3-10(2) SPRING PIN 3-10(3) INTAKE MANIFOLD GASKET(4) CLAMP 6.5-14(5) BOLT(6) WASHER(7) HOSE(8) SPIRAL TUBE PROTECTOR o10-100(9) CHOKE SOLENOID (EP)(10) PLUNGER(11) SCREW(12) SPRING PIN 3-12(13) CHOKE SOLENOID HOOK(14) CHOKE SOLENOID BRACKET ASSY (EP)(15) LINK ROD (EP)(16) ROD SNAP 1.5-2(16) ROD SNAP 1.5-2(17) SCREW(18) ASSIST CORD (BLUE)(19) BAND LEAD WIRE 104(20) CARBURETOR GASKET(20) CARBURETOR GASKET(21) INSULATOR(22) CHOKE ROD(23) ROD SNAP 3-B(24) INTAKE SILENCER ASSY(25) O-RING 2.4-35.2(26) BOLT(27) WASHER(28) FUEL PUMP ASSY(28) FUEL PUMP ASSY(29) CHECK VALVE P(30) CHECK VALVE R(31) PUMP BODY GASKET(32) PUMP DIAPHRAGM(33) SCREW(34) SCREW(35) O-RING 2.6-18.7(36) SCREW(37) FUEL FILTER ASSY(38) HOSE(39) HOSE(40) HOSE(41) CLIP FUEL PIPE(41) CLIP FUEL PIPE(41) CLIP FUEL PIPE(41) CLIP FUEL PIPE(41) CLIP FUEL PIPE(41) CLIP FUEL PIPE(42) PROTECTOR o12-120(42) PROTECTOR o12-120



Parts List
2010 :: 9.8 HP :: 4 Stroke Nissan NSF9.8A3 :: INTAKE MANIFOLD & FUEL PUMP
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) INTAKE MANIFOLD 3V1020101M 3V1-02010-1 $95.85 1
(2) SPRING PIN 3-10 9514030310M 951403-0310 $0.86 2
(3) INTAKE MANIFOLD GASKET 3V1021040M 3V1-02104-0 $4.20 1
(4) CLAMP 6.5-14L 345069150M 345-06915-0 $4.63 1
(5) BOLT 9161F40653M 9161F4-0653 $2.82 6
(6) WASHER 9401E30600M 9401E3-0600 $0.00 6 Sold Out View More Details
(7) HOSE 98AB70200M 98AB-7-0200 98AB-701000 $13.44 1
(8) SPIRAL TUBE PROTECTOR 3V1761480M 3V1-76148-0 FOR EP $6.21 1
(9) CHOKE SOLENOID 3V1760500M 3V1-76050-0 FOR EP/EPT $63.34 1
(10) PLUNGER 361760730M 361-76073-0 FOR EP/EPT $8.80 1
(11) SCREW 9215036408M 921503-6408 CHOKE SOLENOID / FOR EP/EPT $0.90 3
(12) SPRING PIN 3-12 9514030312M 951403-0312 FOR EP/EPT $0.83 1
(13) CHOKE SOLENOID HOOK 346760570M 346-76057-0 FOR EP/EPT $3.00 1
(14) CHOKE SOLENOID BRACKET 3V1760781M 3V1-76078-1 FOR EP/EPT $36.78 1 Sold Out View More Details
(15) LINK ROD 3V1760760M 3V1-76076-0 FOR EP/EPT $2.58 1
(16) ROD SNAP 3V1671960M 3V1-67196-0 FOR EP/EPT $2.08 2
(17) SCREW 9215E30510M 9215E3-0510 FOR EP/EPT $0.81 1
(18) ASSIST CORD (BLUE) 3V1725470M 3V1-72547-0 FOR EP $3.62 1
(19) LEAD WIRD BAND 104 3T5843980M 3T5-84398-0 FOR EP/EPT $0.00 1 Sold Out View More Details
(20) CARBURETOR GASKET 3V1020110M 3V1-02011-0 $2.08 2
(21) INSULATOR 3V1039520M 3V1-03952-0 8/9.8PS $4.31 1
(22) CHOKE LINK ROD 3Y3671920M 3Y3-67192-0 FOR MF & EF/EFT $5.58 1
(23) ROD SNAP ø 3B 346671961M 346-67196-1 FOR MF & EF/EFT $2.56 1
(24) INTAKE SILENCER 3V1024090M 3V1-02409-0 $25.88 1
(25) O-RING 2.4-35.2 3V1020120M 3V1-02012-0 $1.18 1
(26) BOLT 9161E30695M 9161E3-0695 CARBURETOR $2.07 2
(27) WASHER 9401E30600M 9401E3-0600 $0.00 2 Sold Out View More Details
(28) FUEL PUMP 3H6040004M 3H6-04000-4 MARK D $66.10 1
(29) CHECK VALVE (P) 3H6040440M 3H6-04044-0 WHITE $2.58 1
(30) CHECK VALVE (R) 3H6040141M 3H6-04014-0 BLACK $5.57 1
(31) PUMP BODY GASKET 3H6040280M 3H6-04028-0 $7.02 1
(32) PUMP DIAPHRAGM 3H6040050M 3H6-04005-0 $30.87 1
(33) SCREW 9216030308M 921603-0308 $0.97 2
(34) SCREW 9225036418M 922503-6418 $0.76 4
(35) O-RING 2.62-18.72 3H6074220M 3H6-07422-0 $1.57 1
(36) SCREW 9215E35625M 9215E3-5625 $1.44 2
(37) FUEL FILTER 369022300M 369-02230-0 $12.14 1
(38) RUBBER HOSE 98AB50260M 98AB-5-0260 98AB-501000 $11.41 1
(39) RUBBER HOSE 98AB50150M 98AB-5-0150 98AB-501000 $11.41 1
(40) HOSE 98AB50330M 98AB-5-0330 98AB-501000 $11.41 1
(41) CLIP ø10 338022150M 338-02215-0 $1.41 6
(42) PROTECTOR 3V2061570M 3V2-06157-0 $4.33 2
