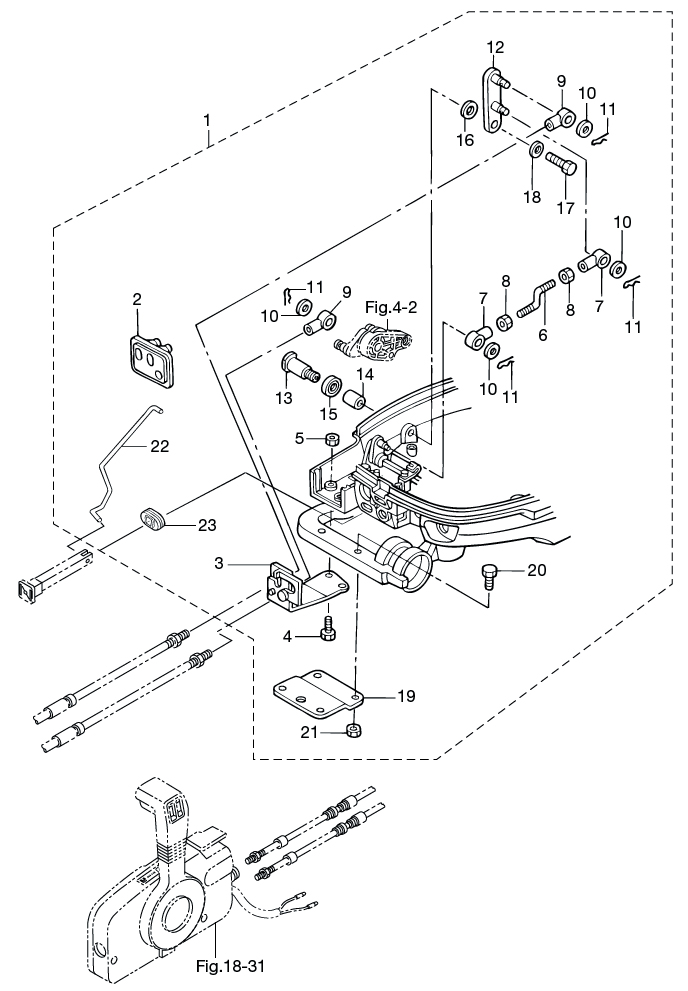

23. OPTIONAL PARTS (REMOTE CONTROL FOR F TYPE)

Click Here for Microfiche Usage Tip
(1) REMOTE CONTROL FITTING ASSY(2) GROMMET(3) CABLE CLIP ASSY(4) BOLT(5) NUT(6) SHIFT LEVER ROD (EP)(7) CABLE JOINT(7) CABLE JOINT(8) NUT(8) NUT(9) CABLE JOINT(9) CABLE JOINT(10) WASHER 8.5-18-1.6(10) WASHER 8.5-18-1.6(10) WASHER 8.5-18-1.6(10) WASHER 8.5-18-1.6(11) SNAP PIN D=8(11) SNAP PIN D=8(11) SNAP PIN D=8(11) SNAP PIN D=8(12) SHIFT ARM (REMOTE CONTROL)(13) PIVOT (EP)(14) HOOK LEVER BUSHING(15) SEAL RING HOOK LEVER(16) WAVE WASHER D=14(17) BOLT(18) WASHER 6.5-21-1(19) STEERING HOOK PLATE(20) BOLT(21) NUT(22) CHOKE ROD(23) GROMMET



Parts List
2010 :: 8 HP :: 4 Stroke Tohatsu MFS8A3 :: OPTIONAL PARTS (REMOTE CONTROL FOR F TYPE)
Pic. Ref. Part Description Tohatsu
Part Number		 Original
Part Number		 Remarks Price Quantity
Needed
Order
Quantity
(1) REMOTE CONTROL FITTING ASSY 3V2838801M 3V2-83880-1 FOR MF & EF/EFT $149.90 1
(2) GROMMET (P TYPE) 3V1837320M 3V1-83732-0 $5.61 1
(3) CABLE CLIP 3V1838200M 3V1-83820-0 $25.88 1
(4) BOLT 9101E30616M 9101E3-0616 $0.98 2
(5) NUT 9301E30600M 9301E3-0600 $0.52 2 Sold Out View More Details
(6) SHIFT LEVER ROD 3V1661340M 3V1-66134-0 $5.82 1
(7) CABLE JOINT 3R0837150M 3R0-83715-0 $2.40 2
(8) NUT 9301030500M 930103-0500 $0.86 2
(9) CABLE JOINT 3B7837151M 3B7-83715-1 $4.83 2 Sold Out View More Details
(10) WASHER 8.5-18-1.6 3AA837190M 353-83719-0 $2.39 4
(11) SNAP PIN D=8 9516030800M 951603-0800 $0.70 4
(12) SHIFT ARM (EP) 3V2661280M 3V2-66128-0 MARK : 3V2 $4.75 1
(13) PIVOT 3V1661420M 3V1-66142-0 $20.10 1
(14) BUSHING 369671050M 369-67105-0 $2.07 1
(15) SEAL RING 338671470M 338-67147-0 $1.85 1
(16) WAVE WASHER D=14 9414031400M 941403-1400 $0.83 1
(17) BOLT 9101E30612M 9101E3-0612 $0.84 1
(18) WASHER 6.5-21-1 346671150M 346-67115-0 $1.41 1
(19) STEERING HOOK PLATE 369838302M 369-83830-2 $12.20 1
(20) BOLT 9101E35830M 9101E3-5830 $1.89 2
(21) NUT 9301E30800M 9301E3-0800 $1.99 2 Sold Out View More Details
(22) CHOKE LINK ROD 3V2671920M 3V2-67192-0 $25.58 1 Sold Out View More Details
(23) GROMMET 3V2671930M 3V2-67193-0 $18.35 1
